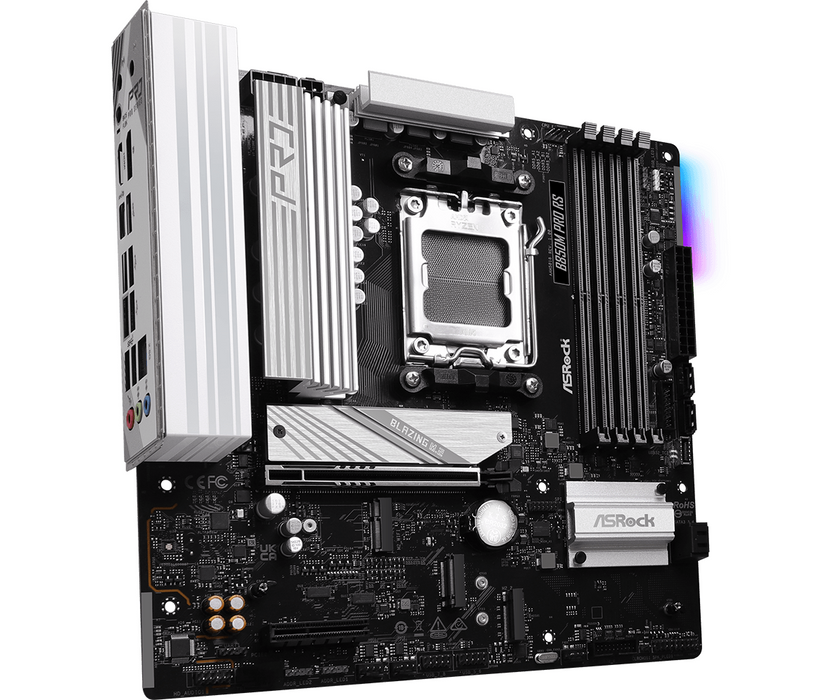

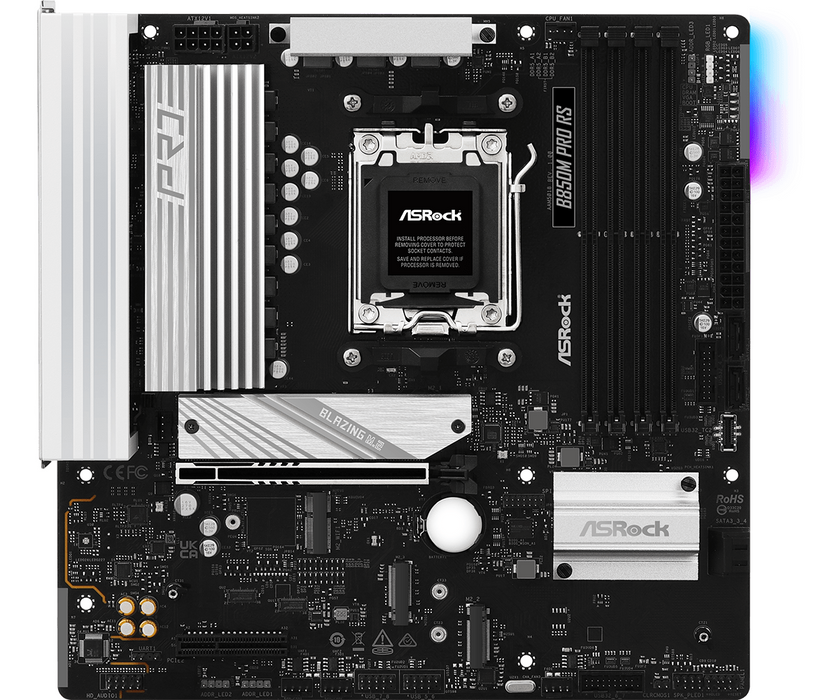

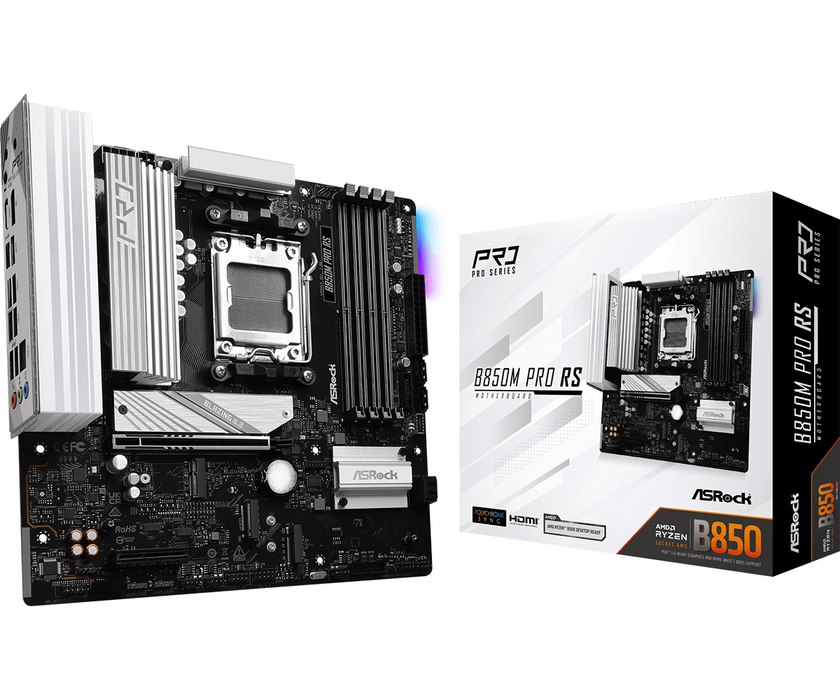

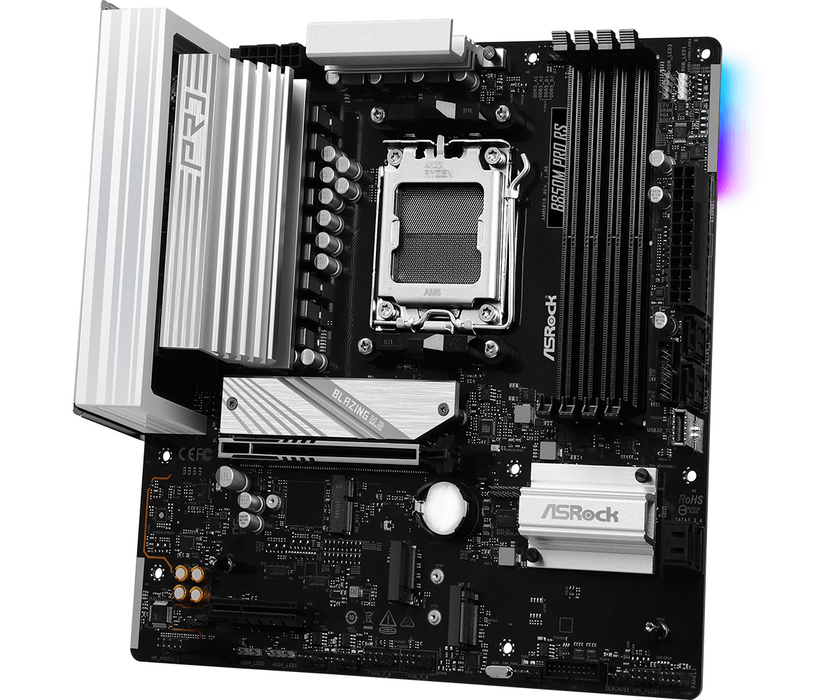

Motherboard ASRock B850M Pro RS socket AM5

ASRock B850M Pro RS is a Micro-ATX motherboard designed for AMD Ryzen 7000, 8000 and 9000 series processors with socket AM5 . It offers reliable performance, energy efficiency and advanced connectivity — perfect for gaming, work or a compact PC.

Main features:

• Memory : 4 x DDR5 DIMM, dual channel, up to 8000+ MHz (OC) , max 256 GB

• Power supply : 8+2+1 phases with Dr.MOS for stable and efficient power supply

• Expansion Slots :

  • 1 x PCIe 5.0 x16

  • 1 x PCIe 4.0 x4

• Storage :

  • 1 x Blazing M.2 (PCIe Gen5x4)

  • 2 x Hyper M.2 (PCIe Gen4x4)

  • 4 x SATA3

• Connectivity :

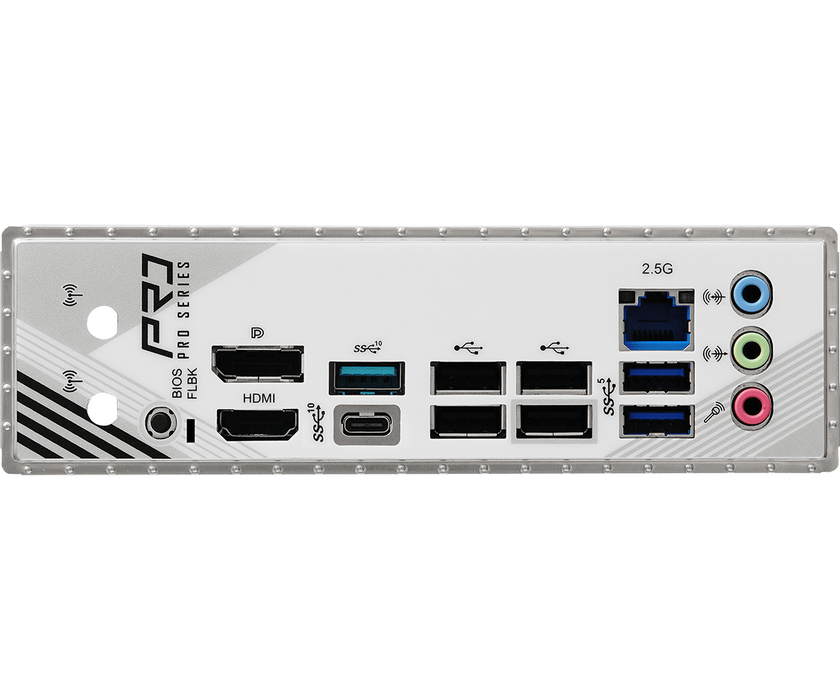

  • 1 x HDMI, 1 x DisplayPort

  • 1 x USB 3.2 Gen2 Type-C (rear panel)

  • 1 x USB 3.2 Gen1 Type-C (front panel)

  • 6 x USB 3.2 Gen1, 8 x USB 2.0

  • 2.5G Realtek Dragon LAN

• Audio : Realtek ALC897 7.1 HD with Nahimic Audio

• Format : Micro-ATX (244 x 244 mm)
