Motherboard ASRock B860M PRO-A, LGA 1851

Motherboard ASRock B860M PRO-A, LGA 1851

ASROCK
€176,90 - €176,90
€176,90
€176,90 - €176,90
€176,90
SKU DGT0222829
Ships within 10 business days Please note that quantities are limited and dynamic. At the time of ordering, the item may be out of stock. We will notify you in a timely manner in the event that we are unable to fulfill the order.

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

Technical specifications

Processor

Processor socket LGA 1851 (Socket V1)
Processor manufacturer Intel
Supported processor sockets LGA 1851

Features

Supported Windows operating systems Windows 11 x64
Audio output channels 7.1 channels
Motherboard chipset Intel B860
Motherboard form factor micro ATX
Audio chip Realtek ALC897
Motherboard chipset family Intel

Memory

Memory channels Dual-channel
Unbuffered memory Yes
Supported memory types DDR5-SDRAM
Memory slot type DIMM
Number of memory slots 4
Maximum internal memory 256 GB
ECC compatibility Non-ECC

Weight and dimensions

Width 244 mm
Depth 244 mm

Network

LAN controller Dragon RTL8125BG
Wi-Fi No
Ethernet interface type 2.5 Gigabit Ethernet
Bluetooth No
Ethernet LAN data transfer rates 10,100,1000,2500 Mbit/s
Ethernet LAN Yes

Internal I/O

RGB LED pin header Yes
Number of processor fan connectors 2
Number of RGB LED pin headers 1
USB 2.0 connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
Number of water pump connectors 1
ATX power connector (24-pin) Yes
CPU fan connector Yes
Number of SATA III connectors 4
TPM connector Yes
12V power connector Yes
Number of chassis fan connectors 3

BIOS

BIOS type UEFI AMI

Storage controllers

RAID levels 1, 5, 10, 0
RAID support Yes
Supported drive interfaces M.2, PCI Express 4.0, SATA III
Supported drive types HDD and SSD

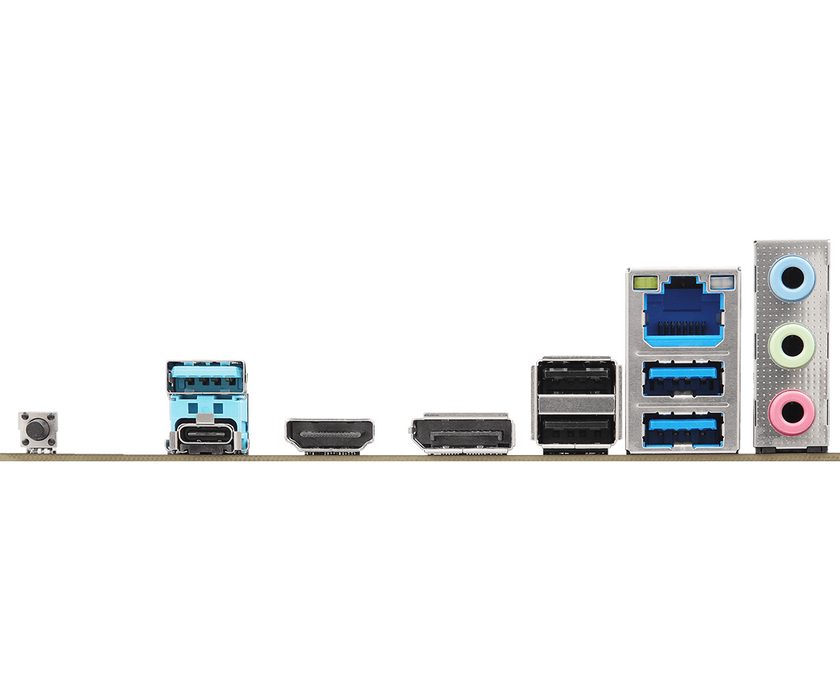

Rear panel ports

Number of USB 2.0 ports 2
Ethernet LAN ports (RJ-45) 1
Number of HDMI ports 1
Number of antennas 2
Number of USB 3.2 Gen 1 ports 3
Number of DisplayPort ports 1
Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports 1
USB connector type USB Type-C, USB Type-A
HDMI version 2.1
Flashback BIOS button Yes

Expansion slots

Number of M.2 (M) slots 3
PCI Express x16 (Gen 5.x) slots 1
Largest key size for 1st M.2 2280
Number of SATA III connectors 4
PCI Express x16 (Gen 4.x) slots 1

Safety warning

Warnings When disposing of the product, follow local regulations for electronics recycling. Do not open or modify the motherboard to prevent damage. In case of installation problems, contact a qualified service technician.
