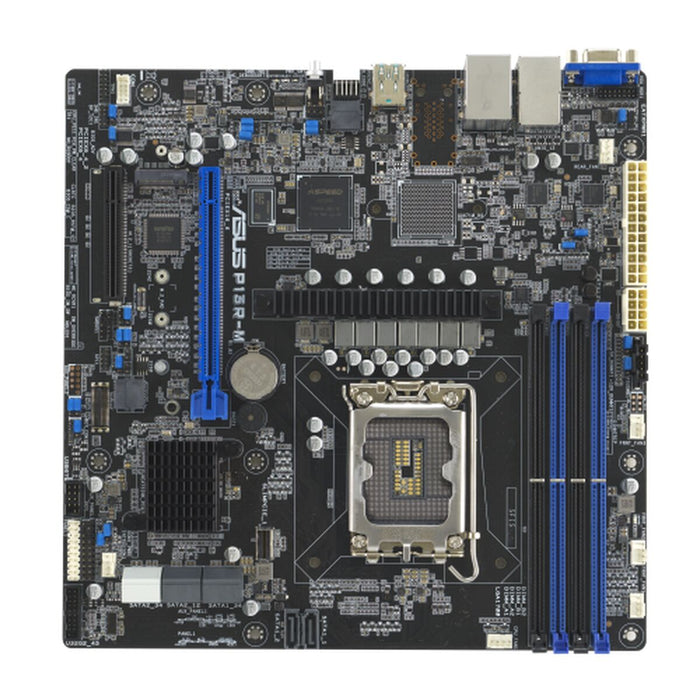

Motherboard Asus 90SB0C70-M0UAY2 INTEL C262 LGA 1700

The Asus P13R-M motherboard is designed for server environments and workstations that require a robust and efficient platform. It features a MicroATX form factor, ideal for compact systems that do not compromise on capacity or connectivity. Its LGA 1700 socket supports Intel Pentium and Intel Xeon E processors, enabling high performance and reliability in business and technical applications. It incorporates the Intel C262 chipset, which offers support for advanced server technologies and enhances stability and resource management. The board supports DDR5-SDRAM memory with a maximum capacity of up to 128 GB through four DIMM slots, providing high bandwidth for demanding processes and intensive multitasking. For storage, it includes interfaces compatible with M.2 and SATA III drives, allowing connection of hard drives and SSDs to ensure speed and flexibility in data management. For network connectivity, it features an Intel® I210-AT LAN controller with support for Fast Ethernet and Gigabit Ethernet, ensuring a stable and efficient connection in professional environments. The motherboard also integrates an ASPEED graphics chipset with the AST2600 adapter, providing basic video functions needed for remote management and server monitoring. Overall, this motherboard stands out for its compatibility with the latest components and its design focused on durability and efficiency in server settings. Its sturdy build and extensive expansion options make it a reliable choice for projects demanding stability and sustained performance.

• Type:
  • Motherboard
  • ATX
• Connections:
  • Ethernet LAN
  • DIMM
• Socket: LGA 1700
• Chipset: INTEL C262
• Model: Serie 1
• Form factor: MicroATX
• Number of memory slots: 4
• Height: 78 cm
• Compatible: HDD/SSD
• 2 Ports: Ethernet
• Includes: SATA
• Approx. temperature: -40º / 70º
• Memory Type: DDR5
• Processor Family: Intel
