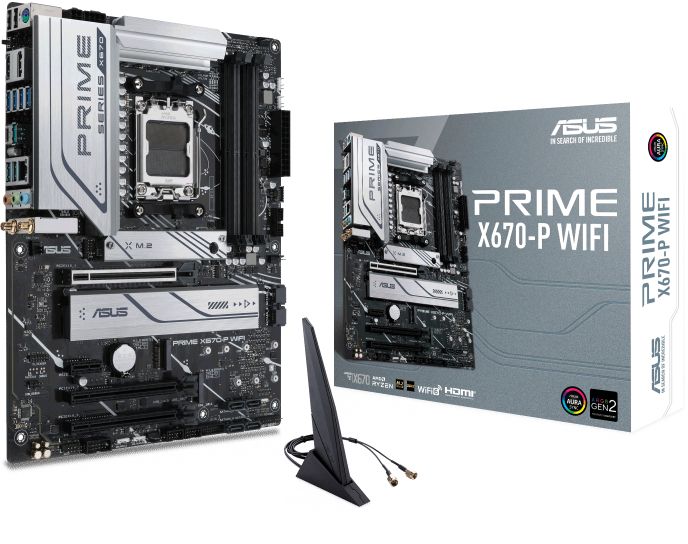

Motherboard ASUS - PRIME X670-P WIFI, AM5

ASUS PRIME X670-P WIFI is a motherboard with the X670 chipset and AM5 processor socket.

Technical details

• Socket: AM5;
• Chipset: AMD X670
• Supported processors: AMD Ryzen 7000 series;
• Supported memory: DDR5;
• Memory frequency: 5200 MHz;
• Number of memory slots: 4;
• Maximum supported memory capacity: Up to 128 GB;
• Sound card: 7.1 CH HD Audio;
• LAN: 10/100/1000/2500 Mb/s, WiFi 6 802.11a/b/g/n/ac/ax, Bluetooth V5.2;
• Interfaces: 1 x S/PDIF out header, 1 x Thunderbolt header, 1 x Front panel audio header, 1 x PCI Express 3.0 x1, 1 x 8-pin 12V Power connector, 1 x COM Port Header, 1 x Clear CMOS header, 1 x 4-pin 12V Power connector, 6 x SATA 6.0 Gb/s, 1 x PCI Express 4.0 x16 (x16 mode), 1 x SPI TPM header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 1 x 24-pin Main Power connector, 2 x AURA RGB headers, 3 x 4-pin Chassis Fan headers, 3 x Addressable Gen 2 header, 2 x M.2 slot (NVMe PCIe 4.0), 1 x M.2 slot (NVMe PCIe 5.0), 1 x 20-5 pin System Panel header, 1 x 4-pin CPU Fan header, 2 x PCI Express 4.0 x16 (x4 mode);
• Ports: 1 x HDMI, 1 x DisplayPort, 1 x PS/2 keyboard/mouse combo port, 1 x RJ-45, 2 x USB 2.0 Type A, 3 x Audio Jacks, 1 x BIOS Flashback Button, 1 x ASUS Wi-Fi Module, 4 x USB 3.2 Gen 1 Type-A, 3 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 2x2 Type-C;
• Form factor: ATX;
• Dimensions: 30.5 x 24.4 cm;
• Package: 1 x ASUS Wi-Fi moving antennas, 2 x SATA cables.
