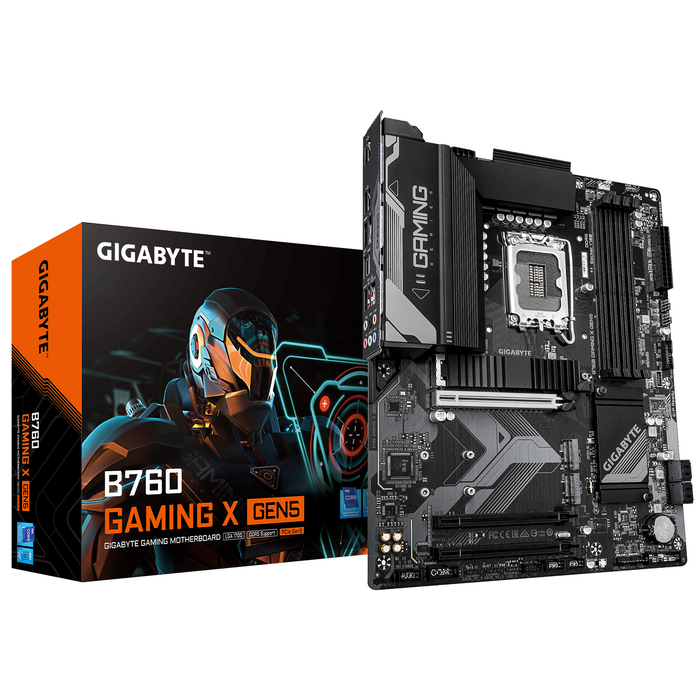

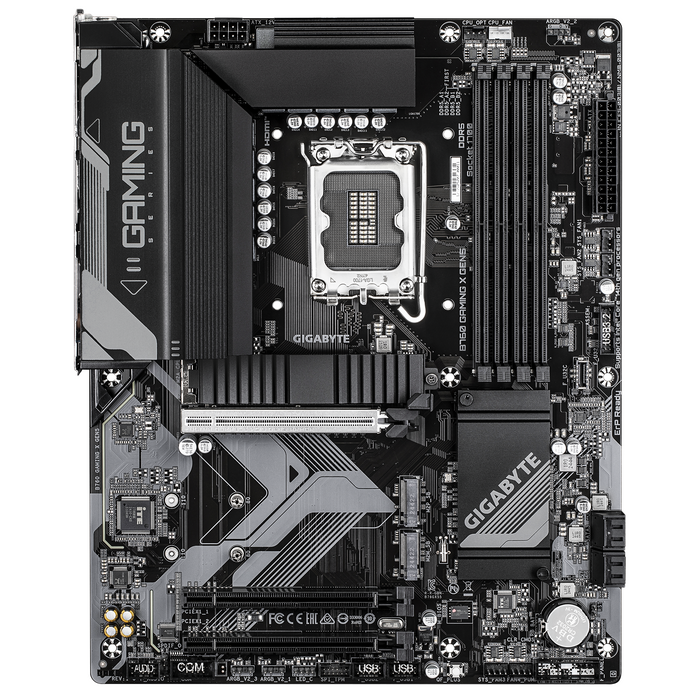

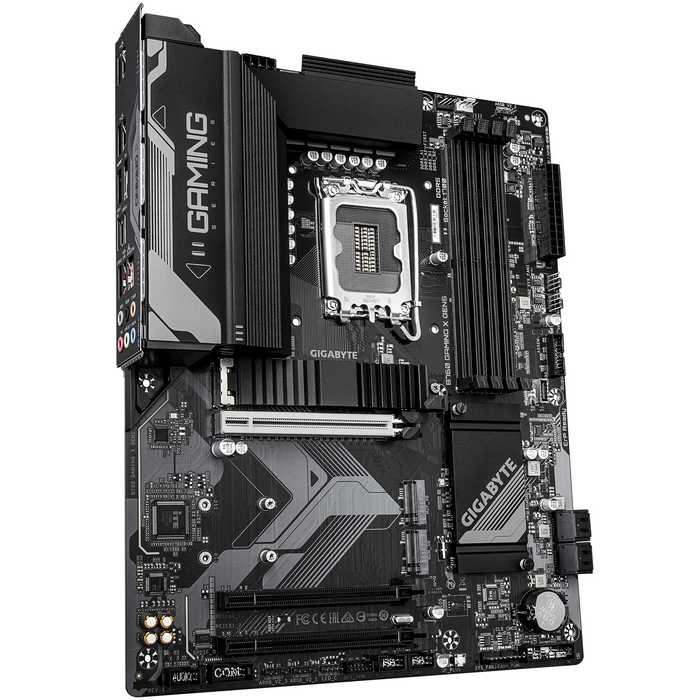

Motherboard GIGABYTE B760 GAMING X GEN5, socket 1700

Main features

• Socket : LGA1700 – compatible with Intel Core 12th, 13th and 14th generation.
• Chipset : Intel B760 – a stable platform for gaming and productivity.
• Form factor : ATX – standard size with many expansion options.

Memory and extensions

• RAM : 4 DDR5 slots, up to 256 GB, with support for XMP profiles.
• SSD slots : 3 x M.2 PCIe 4.0 + 4 x SATA 6Gb/s.
• PCIe slots : 1 x PCIe 5.0 x16 for video card + additional PCIe 3.0 x1 slots.

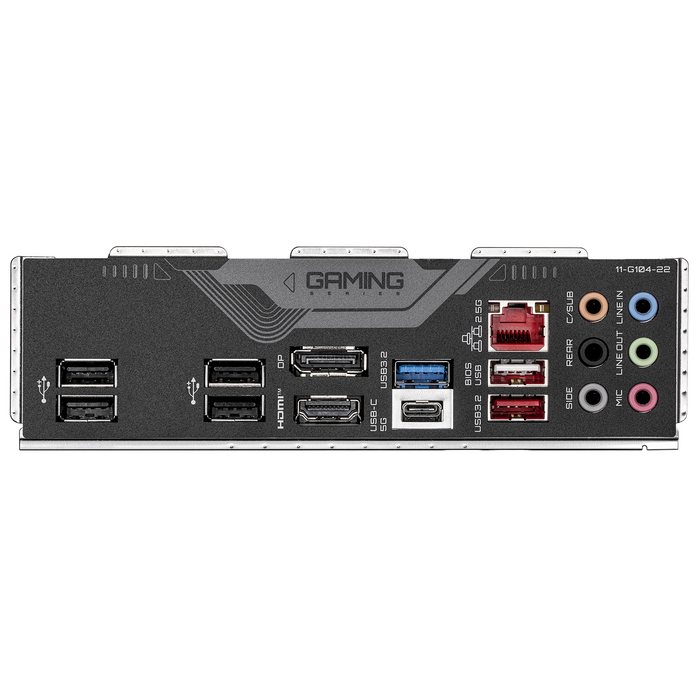

Connectivity

• LAN : Realtek 2.5GbE - fast network connection.
• Video outputs : HDMI 2.1 and DisplayPort 1.2.
• USB ports : USB-C Gen2, USB 3.2 Gen1/Gen2, USB 2.0 - both on the panel and internal headers.

Cooling and stability

• VRM : Hybrid 8+1+1 phase power supply - load stability.
• Smart Fan 6 – multiple temperature sensors and hybrid fan headers.

Gaming and amenities

• PCIe EZ-Latch - easy insertion and removal of video cards.
• Q-Flash Plus – CPU-less BIOS update.
• RGB headers : 3 ARGB Gen2 + 1 RGB – for customized lighting.
