| Marketing description |

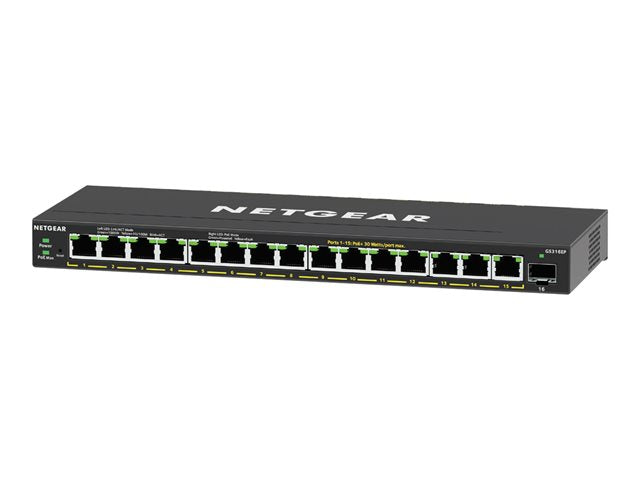

| Along with the already excellent features of the Plus switch, GS316EP further enhances your business network experience with new interesting features. Advanced PoE controls, including power allocation override, remote power on/off/reset, PoE scheduling and more, provide easy power management of PoE-connected devices. |
| Product features |
-
Efficient power management
With a generous PoE budget of 180 W and PoE+ support on 15 ports, this switch provides efficient power distribution to connected devices, eliminating the need for additional power sources.
-
Reliable security features
Equipped with features such as DHCP snooping, denial-of-service (DoS) protection and password protection, GS316EP provides a secure network environment that prevents unauthorised access and network attacks.
-
Comprehensive network management
Manageable via DHCP or HTTP, this switch offers advanced network management capabilities, including VLAN support, quality of service (QoS) and IGMP snooping, for optimised traffic prioritisation and bandwidth management.
-
Large capacity and performance
With a switching capacity of 28 Gbps and support for up to 4K MAC address entries, GS316EP provides high-speed data transmission and efficient traffic handling, suitable for growing business needs.
-
Durable and flexible design
Designed for both desktop and wall mounting, this fanless switch operates silently while ensuring reliability with a high MTBF of 784,742 hours, making it ideal for any office environment.
|
| General |
| Device type |
Switch - 16 ports - managed |
| Form factor |
Desktop, wall-mountable |
| Subtype |
Gigabit Ethernet |
| Ports |
15 x 10/100/1000 (PoE+) + 1 x SFP |
| Power over Ethernet (PoE) |
PoE+ |
| PoE budget |
180 W |
| Performance |
Bandwidth: 28 Gbps |
| Capacity |
Buffer memory (kBytes): 192
Supported VLANs: 64
Multicast groups: 128 |
| MAC address table size |
4K entries |
| Jumbo frame support |
10000 bytes |
| Routing protocol |
IGMP, IGMPv2, IGMPv3 |
| Remote management protocol |
DHCP, HTTP |
| Features |
QoS, IGMP snooping, DoS protection, VLAN support, loop prevention, loopback detection, Broadcast Storm Control, port mirroring, fanless, PoE scheduling, continuous PoE, store and forward, EEE, WRR, VLAN tagging, port-based VLAN, Link Aggregation, port trunking, unknown multicast blocking, DHCP client, DSCP support, CoS, ToS, full duplex mode, flow control, password protection, cable test, rate limiting |
| Compliant standards |
IEEE 802.3at, IEEE 802.3az, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af |
| Status indicators |
Link/activity/speed, PoE, power, system, PoE max. |
| Expansion / connectivity |
| Interfaces |
15 x 1000Base-T RJ-45 PoE+ - 30 W
1 x 1000Base-X SFP |
| Power |
| Power supply |
External power adapter |
| Miscellaneous |
| Included accessories |
Wall-mount kit, rubber feet |
| MTBF |
784,742 hours |
| Standards compliance |
FCC Part 15 Class B, EN 55032, EN55024, VCCI, ACMA, CSA, KC, BSMI |
| Dimensions and weight |
| Width |
28.6 cm |
| Depth |
10.2 cm |
| Height |
2.7 cm |
| Weight |
883 g |
| Manufacturer's warranty |
| Service and support |
Limited warranty - 5 years
Limited warranty - power supply - 2 years
Limited warranty - phone support - 90 days with product registration |
| Operating parameters |
| Minimum operating temperature |
0 °C |
| Maximum operating temperature |
40 °C |
| Operating humidity range |
90% (non-condensing) |
| Minimum storage temperature |
-20 °C |
| Maximum storage temperature |
70 °C |
| Storage humidity range |
95% (non-condensing) |
