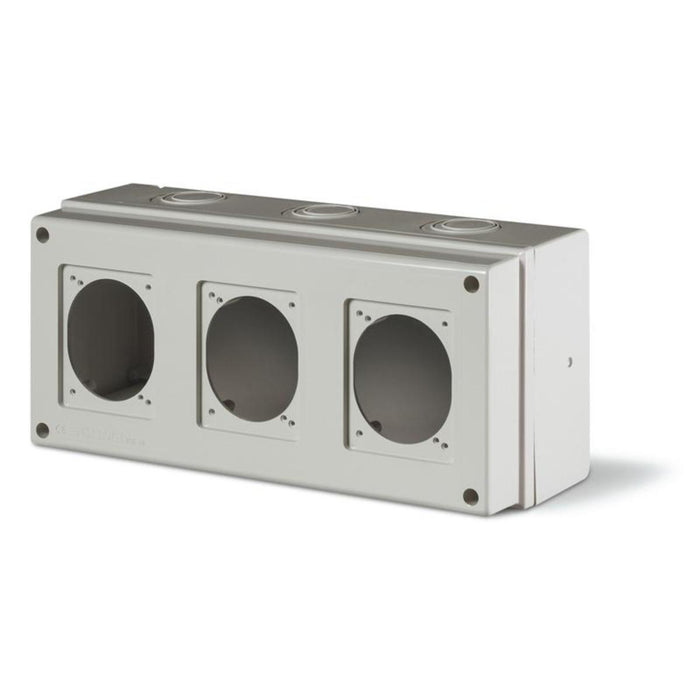

PANEL 3 CONTACTS IP66 DOMINO SCAME

Distribution board for 3 contacts 16A/32A, Scame Domino 672.1300
The DOMINO series offers a complete range of waterproof distribution boards for surface mounting with IP66. Variants from 2 to 24 DIN modules and installation of up to 8 industrial sockets. The boards are made of non-ageing technopolymer, stabilised against UV radiation. Impact resistance class IK07/08. Maximum operating temperature from -25°C to +60°C. High resistance to erosion processes and chemical reagents.

• series: DOMINO
• manufacturer: SCAME – Italy
• standard: EN 60670-1, EN 60670-1/A1, IEC 60670-24, CEI 23-49
• installation: surface-mounted (external)
• number of modules (possibility of fitting fuses): NO
• three openings for mounting the following contact variants:
• • 3 pcs 16A (70×87mm) or
• • 3 pcs 32A (84×106mm)
• * in the (70×87mm) size, either an industrial or a SCHUKO socket can be fitted
• marked cable entries (possible fitting of glands): PG36 – PG29 – PG21
• rated voltage: 400V / 50Hz
• protection class: II
• power dissipation: 20W
• degree of protection: IP66
• mechanical strength: IK07
• overall dimensions: 150x328x115mm
• operating temperature: from –25 °C to +60 °C
• housing material: heat-resistant plastic, halogen-free
• flammability test: +650°C
• UV radiation resistance: YES
• colour: GREY
