PIR SENSOR MOTION 360°/180° TUYA SMART

Wi-Fi Tuya motion sensor is an advanced device that alerts users to detected motion. It can also control the lighting system to optimise the use of artificial lighting and inform the owner about the presence of people in the building.
The sensor operates at a rated voltage of 230V AC and frequency 50Hz. The maximum switching power is up to 1200W, including 300W for LED lighting. The maximum switching time is 60 seconds, with economical power consumption of only 0.5W.
The sensor is dust and moisture resistant (IP65), which makes it ideal for both indoor and outdoor use. The device is for surface mounting, either on the ceiling or on the wall.
The two built-in sensors increase the precision of motion detection. The maximum forward range is 12 m. The device detects motion at a speed of 0.6-1.5 m/s. The light intensity, adjustable from 5 to 2000 lux (5, 10, 50, 150, 2000 lux), allows the device to adapt to different lighting conditions. In addition, the 180° detection angle provides a wide monitoring area.

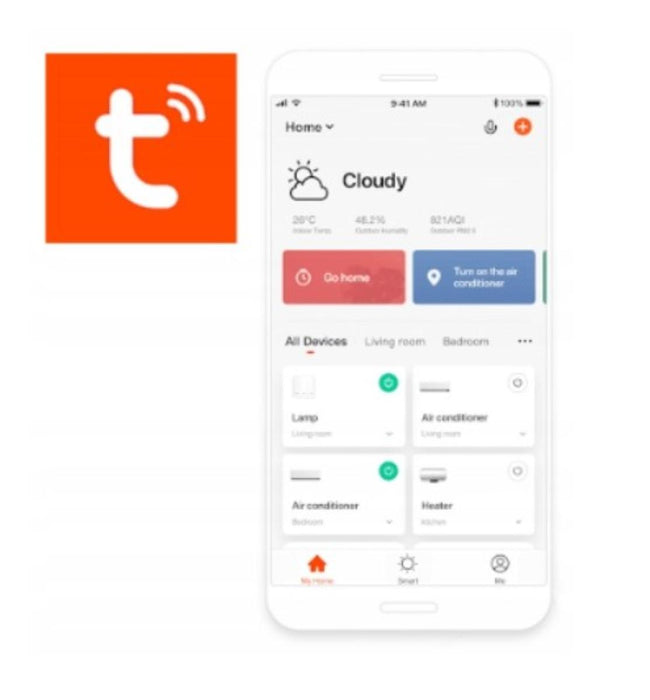

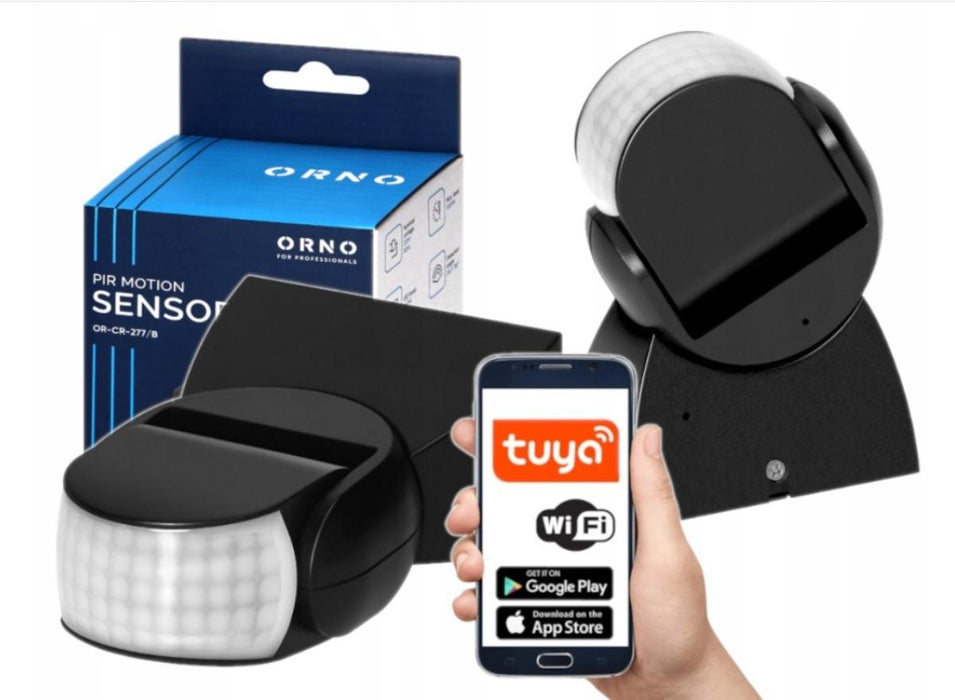

The motion sensor can be integrated with the Tuya Smart system by connecting to a Wi-Fi network. This makes it easy to create an alarm system and a lighting control system in homes or offices, without the need for additional devices. The app simply needs to be installed on the smartphone and connected to the device. This makes controlling the motion sensor convenient from anywhere in the world.

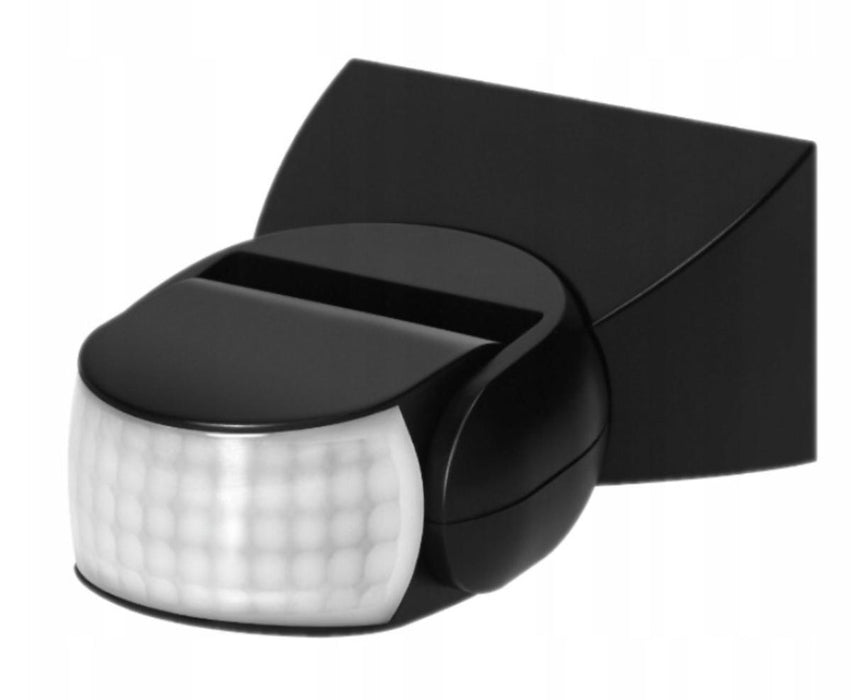

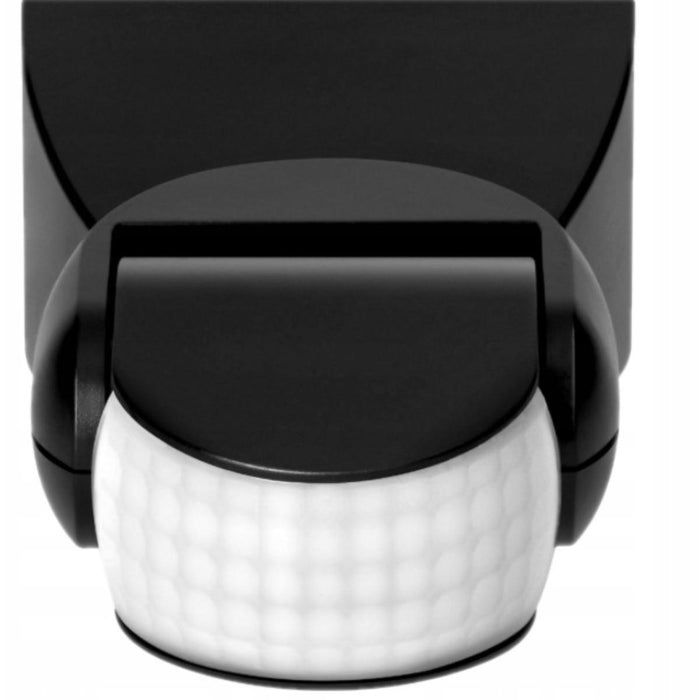

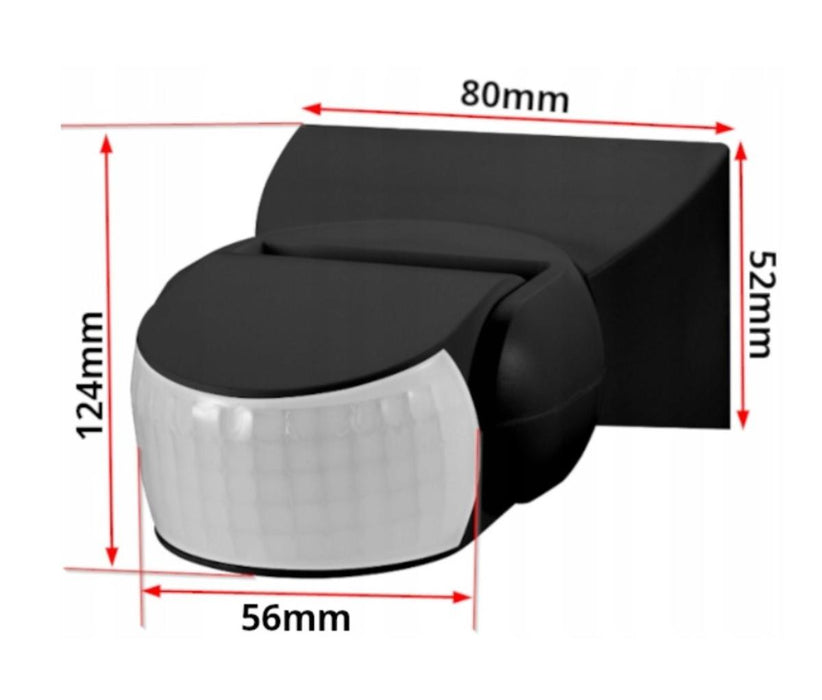

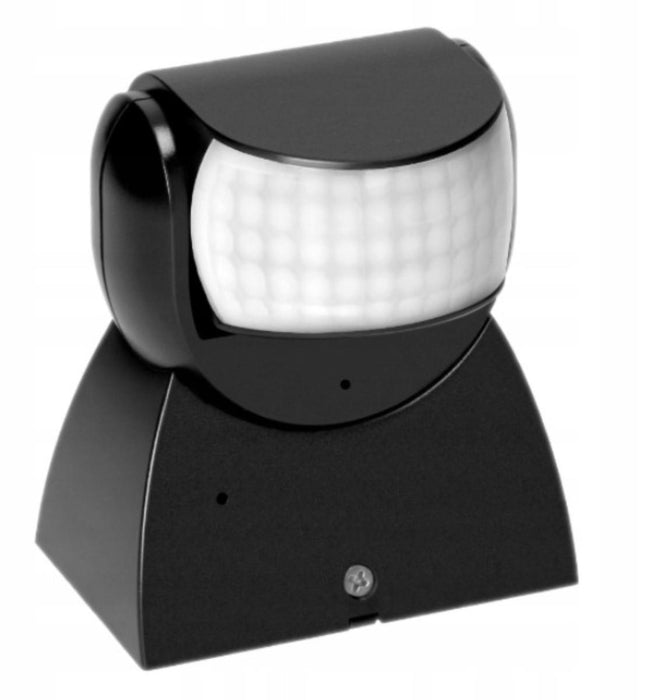

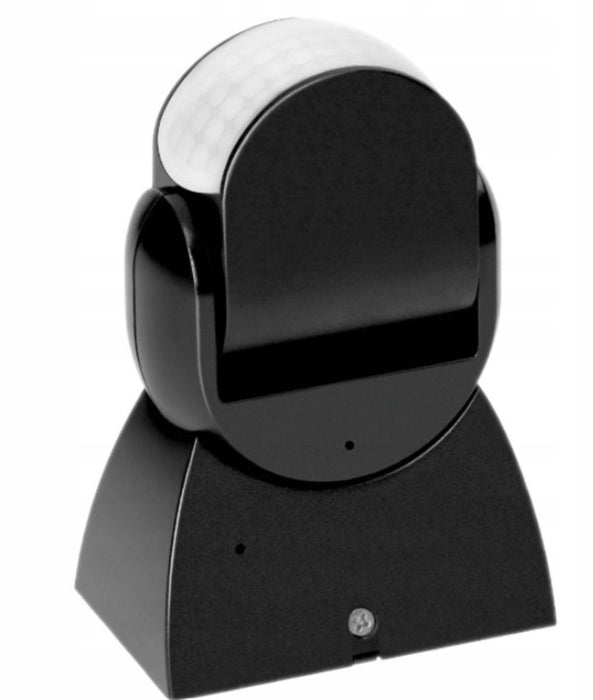

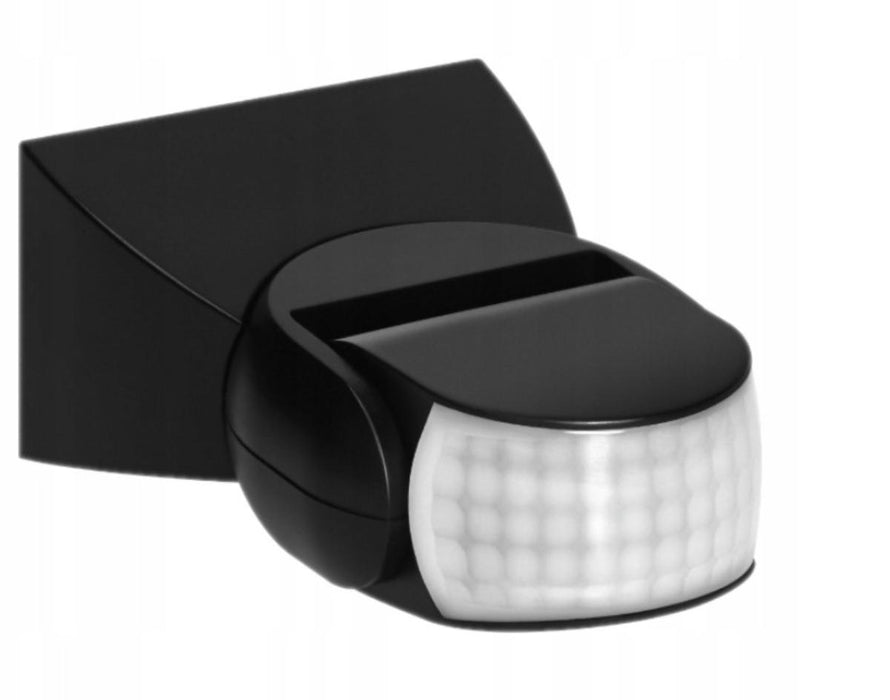

Made of high-quality black plastic. It is durable and aesthetic. The dimensions are 52x124x80 mm.
General information:

• Model: Motion sensor
• Sensor type: Motion sensor
• Scanning angle: 180°
• Optimal mounting height: 1.8-2.5 m
• Max. frontal range: 12 m
• Motion speed for detection: 0.6-1.5 m/s
• Adjustable brightness value: Yes
• Light intensity adjustment range: 5, 10, 50, 150, 2000 lx
• Mounting method: Flush
• Suitable for ceiling mounting: Yes
• Suitable for wall mounting: Yes
• Connection type: Deep mounting
• Material: Glass sheet metal
• Material quality: Thermoplastic material
• Colour: Black
• Protection degree: IP65
• Voltage type: AC
• Frequency: 50 Hz
• Rated voltage: 230 V
• Min. switch-on time: 5 s
• Max. trigger factor: 60 min
• Detection angle horizontal: 180°

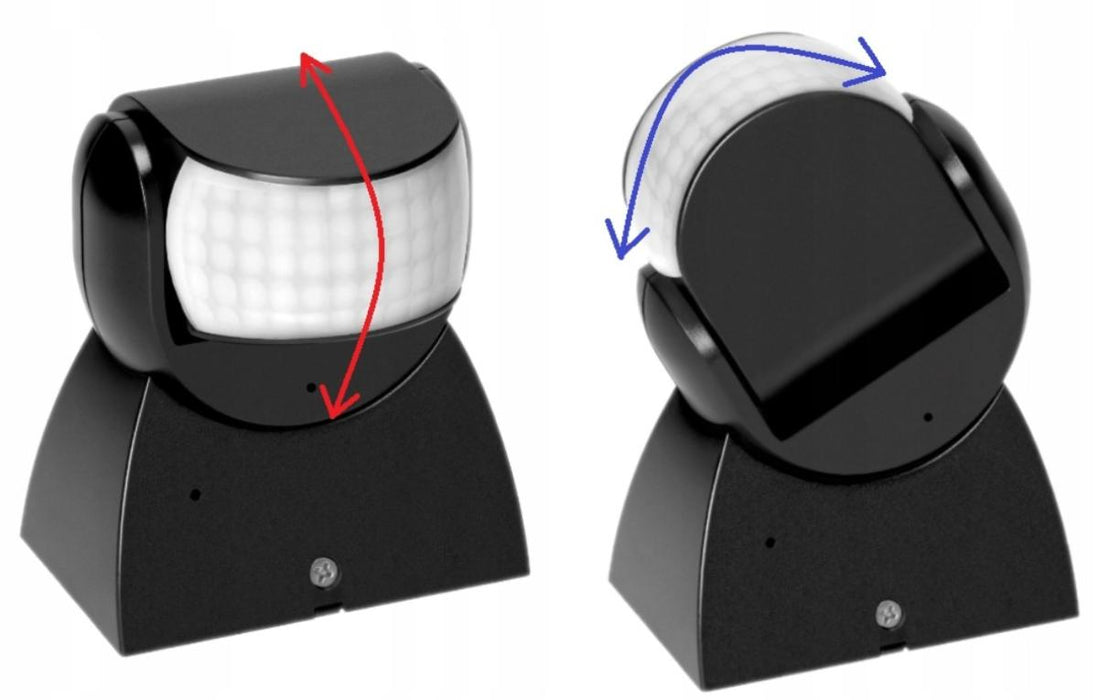

• Sensor rotation range, vertical: -180°
• Maximum switching power: 1200 W
• Maximum switching power LED: 300 W
• Power consumption: 0.5 W
• Relay output: yes
• Temperature: -20 - +40 °C
• Operating humidity: <93%
• Width: 52 mm
• Height: 124 mm
• Depth: 80 mm
• Weight: 160 g
• Powered by TUYA: yes
• Wi-Fi: yes
• Wi-Fi standard: IEEE 802.11 b/g/n
• Wi-Fi frequency: 2.4 GHz
• Wi-Fi power: ≤0.2W
