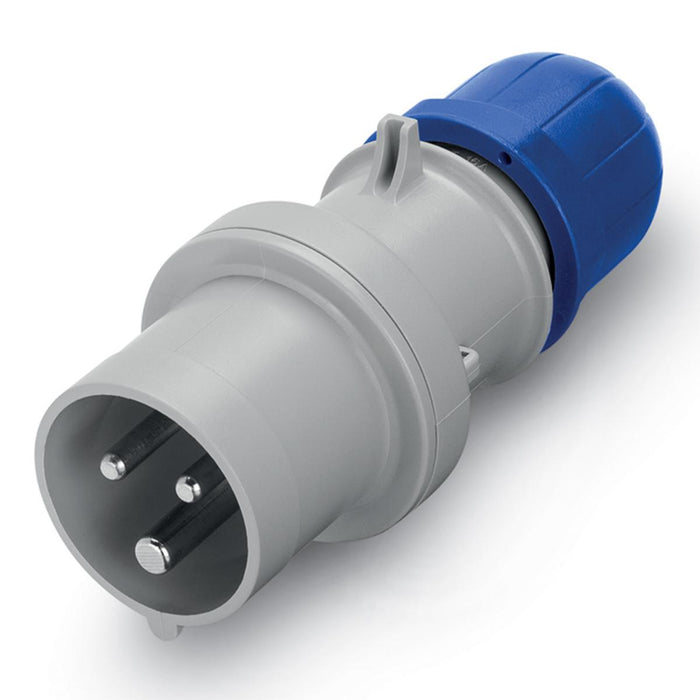

PLUG 2P+E 32A IP54 OPTIMA SCAME

Single-phase Euro plug 32A, 2P+E, IP54, SCAME Optima 213.3233
The OPTIMA series is a complete range of industrial plugs (Euro standard) from 16A to 125A. Robust and safe industrial plugs, thanks to the use of high-performance technopolymer and an external gland with cable clamp. The OPTIMA series plugs are available with multiple types of terminals to always guarantee the best connection depending on the type of use and wiring requirements. The effectiveness of the contact surfaces over time is also guaranteed by the use of nickel-plated brass pins, resistant to oxidation and aging. The quick opening of the plug body is thanks to the steel spring mechanism. The OPTIMA series products are manufactured with halogen-free materials that are harmless to the environment.

• series: OPTIMA
• manufacturer: SCAME – Italy
• standard: EN 60309
• installation: mobile / portable
• poles: 2P + E
• hour position: 6 o'clock
• rated current: 32A
• rated voltage: 200 – 250V
• operating frequency: 50Hz, 60Hz
• color: BLUE
• protection degree: IP44 / IP54 (splash-proof)
• IK protection level at 20°C: IK 08
• Non-flammability test: 650°C
• material: UV stabilized, halogen-free
• terminals: screw
• cable outlet: gland (strong cable grip)
