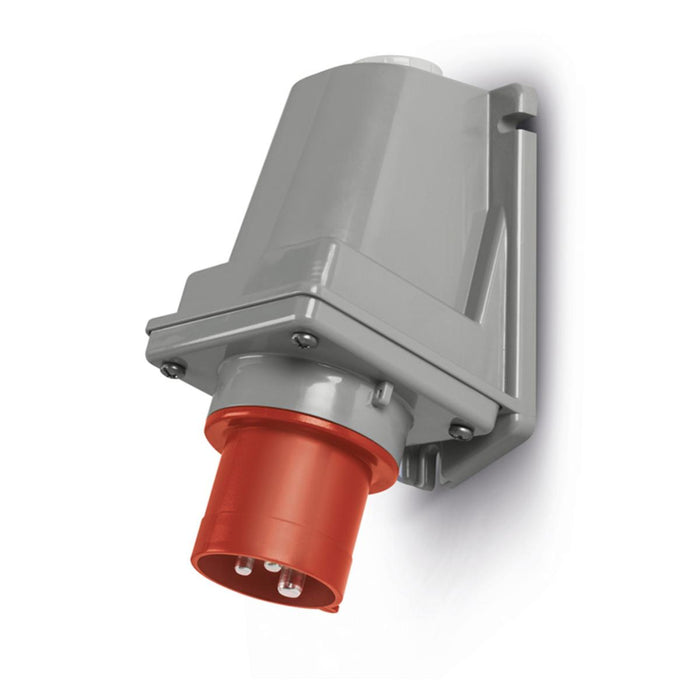

PLUG 3P+N+E 16AIP44/54,6H OPTIMA SCAME

Three-phase Euro plug 16A, 3P+N+E, IP54, SCAME Optima 240.1697
The OPTIMA series is a range of 16A and 32A industrial plugs for surface-mounted outdoor installation. They are stable and reliable industrial Euro plugs, thanks to the use of a high-performance technopolymer. They are available with screw terminals and always guarantee the best connection. The effectiveness of the contact surfaces over time is ensured by the use of nickel-plated brass pins, resistant to oxidation and ageing. The moulded combined seal guarantees a constant IP degree of protection. Products of the OPTIMA series are manufactured with halogen-free materials and are environmentally harmless.

• series: OPTIMA
• manufacturer: SCAME – Italy
• standard: EN 60309
• mounting: outdoor / surface-mounted / wall-mounted
• poles: 3P + N + E
• clock position: 6h
• rated current: 16A
• rated voltage: 346 – 415V
• operating frequency: 50Hz, 60Hz
• colour: RED
• degree of protection: IP44 / IP54 – resistant to water splashes
• operating temperature: from – 20°C to + 40°C
• flame resistance test: 650°C
• material: UV stabilised, halogen-free
• terminals: screw
• cable outlet: thread for cable gland M25X1,5
