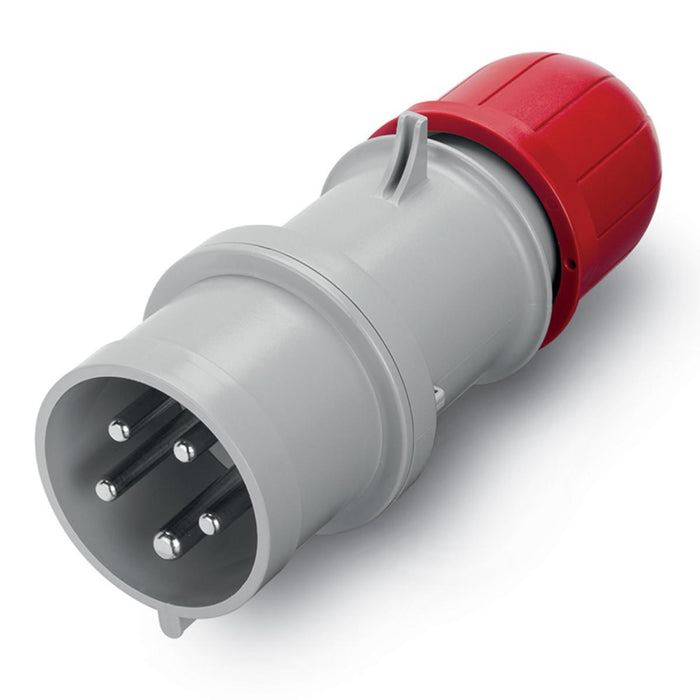

PLUG 3P+N+E 32A IP54 OPTIMA SCAME

Three-phase Euro plug 32A, 3P+N+E, IP54, SCAME Optima 213.3237
The OPTIMA series is a complete range of industrial plugs (Euro standard) from 16A to 125A. Robust and safe industrial plugs, thanks to the use of a high-performance technopolymer and an external gland with a cable clamp. OPTIMA series plugs are available with multiple types of terminals to always guarantee the best connection depending on the type of usage requirements and wiring. The effectiveness of the contact surfaces over time is also guaranteed by the use of nickel-plated brass pins, resistant to oxidation and ageing. The quick opening of the plug housing is thanks to the steel spring mechanism. OPTIMA series products are manufactured with halogen-free materials that are harmless to the environment.

• series: OPTIMA
• manufacturer: SCAME – Italy
• standard: EN 60309
• mounting: mobile / portable
• poles: 3P + N + E
• hour position: 6h
• rated current: 32A
• rated voltage: 346 – 415V
• operating frequency: 50Hz, 60Hz
• colour: RED
• degree of protection: IP44 / IP54 (resistant to water splashes)
• IK protection degree at 20°C: IK 08
• flame resistance test: 650°C
• material: UV stabilised, halogen-free
• terminals: screw
• cable outlet: gland (secure cable grip)
