Working principle
- Air enters the device through 2 fans located at the top: Dirty air enters the device through an opening located at the bottom rear of the device, which is protected by metal PRE-FILTERS , which serve to capture solid particles with extremely high efficiency - easy to clean and reusable.
- Entering the special working sterile disinfection chamber /built of stainless steel/, the dirty air is irradiated with a PHILIPS UV-C source with a power of 95 W.
The chamber is made individually for each device. It calculates, depending on the strength of the radiation generated by the UV-C source, the power and speed of the air flow that are necessary for UV-C (253.7 nm) to penetrate the cell wall of the microorganism and for the high-energy photons of UV-C to be absorbed by the cellular proteins and DNA/RNA.
In this process, UV-C damages the protein structure, causing metabolic disruption. As a result, the DNA/RNA is chemically altered, the organisms CANNOT metabolize and reproduce, CANNOT cause disease. At this point, the device has completed disinfection.
Disinfection of up to 120 m3/hour is achieved. It is suitable for rooms with a volume of up to 120 cubic meters.
Construction
✓ PHILIPS UV-C lamps , operating in the UV spectrum (253.7 nm): Illuminator made of special glass, filtering harmful ozone-forming (O3) radiation with a wavelength of 185 nm. OZONE-FREE guarantees its safe operation in the presence of people and animals. The powerful UV-C sources used in Quantum Medical devices, through their radiation, destroy all viruses, bacteria, molds and microorganisms.
✓ 2 powerful, quiet and UV-C resistant fans: Through them, air is introduced into the chamber where disinfection takes place.

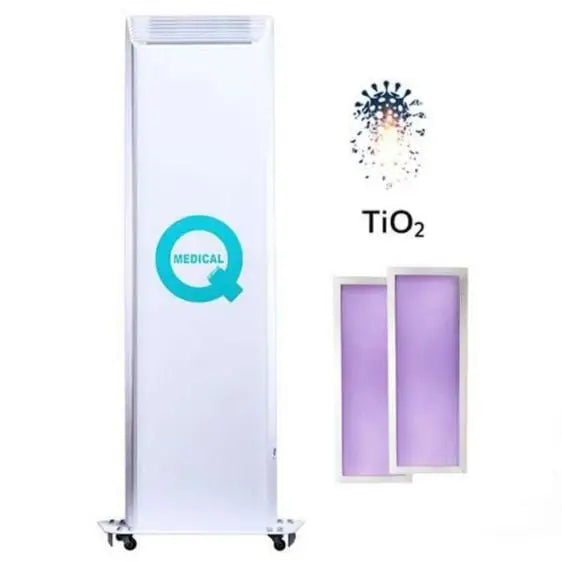

TiO2 filter
A TiO2 filter has been added, which, through photocatalysis produced when exposed to UV-C light with a wavelength of 253.7 nm, helps improve the performance of the device and radically improves air quality by reducing odors and destroying microscopic particles that can lead to illness.
Photocatalytic technology is a step forward from the air filters used to date due to its ability to attack mold, viruses, and bacteria in the air and on surfaces.
Technical specifications:
- Noise level (dB) 47
- Dimensions [H/W/D] (mm) 1192/350/107
- For premises: from 30 to 40 sq.m.
- Recommended area 40 sq.m. / 120 cubic meters.
- Consumption (W) 130
- Temperature range (°C) 5 - 40
Warranty 2 years
Completely safe to use
External shielding - using steel coated with a special antibacterial paint:
✓ prevents viruses and bacteria from sticking to the surface.
✓ NO yellowing or shedding in direct or indirect ultraviolet light.
Internal shielding – stainless steel with a mirror surface is used.
✓ also serves as a reflector and amplifies radiation by 28%, improving the efficiency of the device.
✓ UV-C resistant fans.
THE DEVICE IS MANUFACTURED WITHOUT PLASTIC ELEMENTS for maximum safety during operation.
Usage
The device is completely safe for humans, animals and plants. It can be used in:
✓ Living quarters
✓ Hospital rooms, Operating rooms, Clinics, Laboratories
✓ Pharmaceutical and food industry
✓ Offices, Schools, Commercial establishments, Kindergartens, Administrative buildings
✓ Hotels, veterinary clinics and public enclosed spaces.
Medical facilities using Quantum Medical:
✓ Children's Neurology Clinic - Plovdiv
✓ District Hospital – Plovdiv
✓ Second City Hospital - Plovdiv
✓ St. George Hospital - Plovdiv
✓ Veterinary Clinic Provet - Plovdiv
✓ Children's Neurology Clinic - Sofia
✓ Alexandrovska Hospital - Sofia
