Ricoh Fi-800R Fast Flatbed Scanner, 40ppm, 80 ipm, ADF, A4

The versatile fi-800R scans and extracts data from passports (including machine-readable areas), ID cards and
A4 without the need for additional accessories. Advanced dual/reverse scanning technology improves
customer service and allows for processing thicker documents up to 5mm, along with A4 documents. ID cards

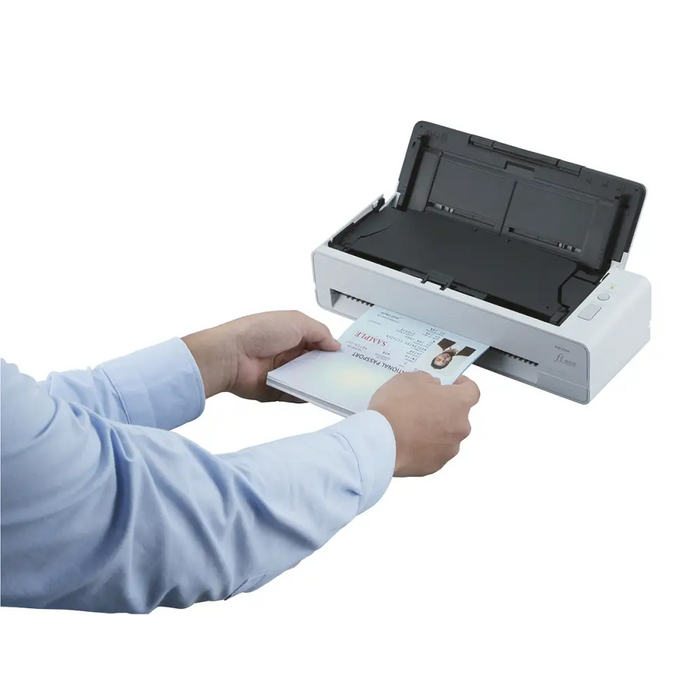

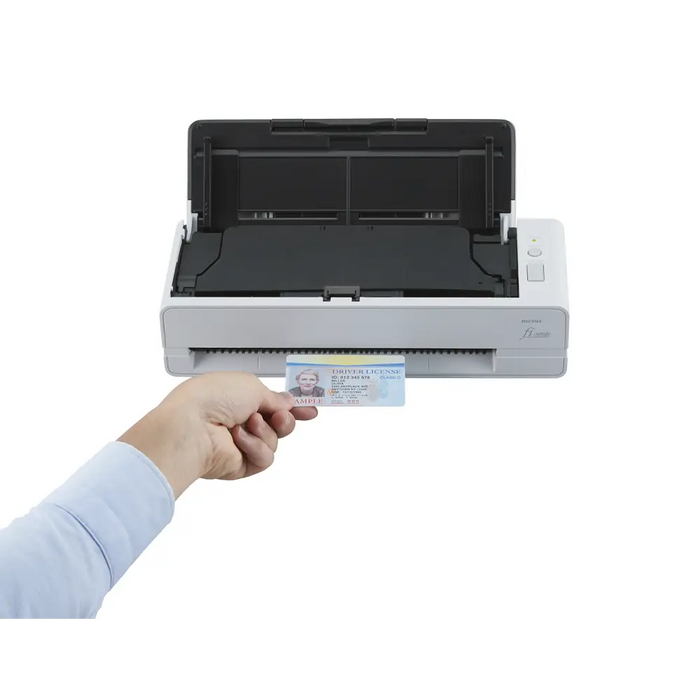

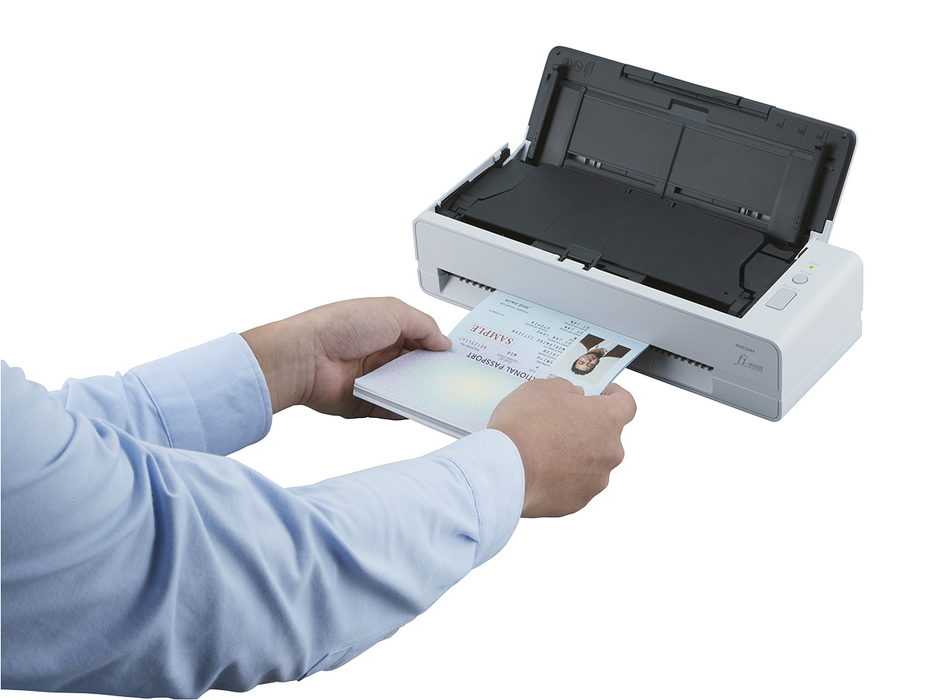

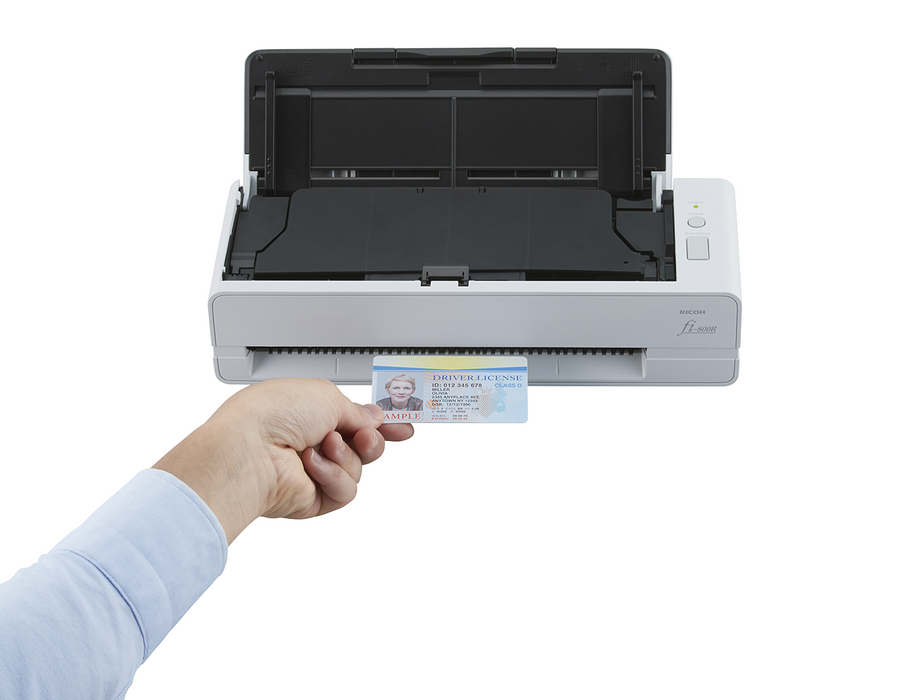

and passports are inserted and removed at the front of the machine – no need for carrier sheets or paper path switching

Important embedded technologies:
Active Separation technology - The newly developed technology offers much more precise paper separation and adjustment of the pressure applied to each sheet depending on its thickness.
Automatic Skew Correction - Automatic skew correction straightens each document before scanning to prevent paper jams or images with missing edges.
Impressive scanning speed of 40 pages/80 images per minute on the fi-800R
The 20-page automatic document feeder.
The fi-800R can scan documents that exceed A3 in length: documents under 863 mm in length are limited to 1200 dpi or less, and those between 863 mm and 2700 mm in length are
limited to 600 dpi, between 2700mm and 4064 mm up to 400 dpi, and from 4064mm to 5461mm - up to 300 dpi.


Sensor Type: Contact Image Sensor (CIS) x2 (Front x1, Back x1)
Flatbed scanner: Yes
Scan mode: Colour: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit
Scan speed (A4 Portrait ADF): Simplex: 40 ppm, Duplex: 80 ipm (200, 300 dpi)
Scan Speed (A4 Portrait Return Scan): Simplex / Duplex: 3.5 Seconds per sheet (200, 300 dpi)
ADF capacity: 20 sheets (A4: 80 g/m2) / 30 sheets (A4: 52 g/m2)
Resolution: up to 600 dpi
Document size: A4
Interface: USB 3.2 Gen 1 / USB 3.0 / USB 2.0 / USB 1.1 (Type B / Type B SuperSpeed Connector)
Weight: 2 kg
Dimensions: 296 x 105 x 83 mm
Power supply: AC adapter
Power consumption in operating mode: 19W or less
Standby power consumption: 0.15 W or less
Autocropping function: yes
Included software: PaperStream IP Driver (TWAIN & ISIS), WIA Driver*8, PaperStream Capture,
Software Operation Panel, Error Recovery Guide, Scanner Central Admin, ABBYY FineReader for ScanSnap
