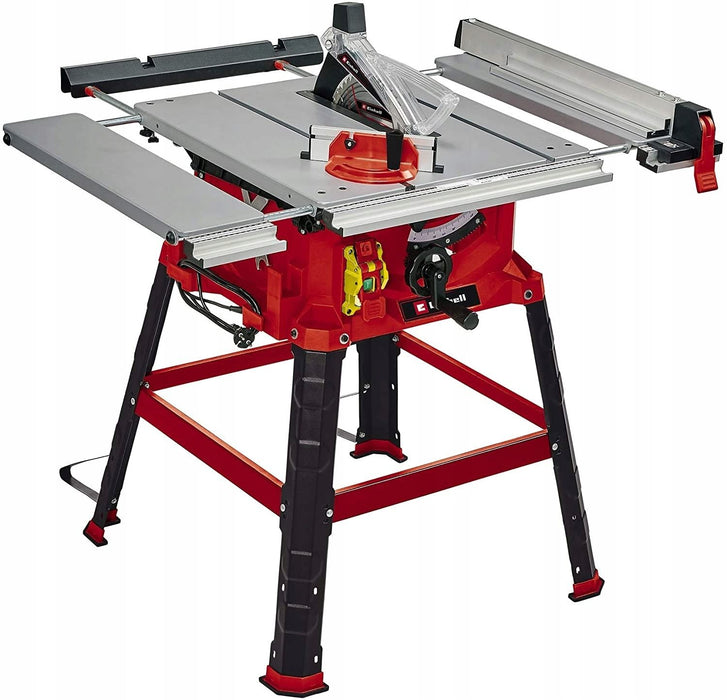

STATIONARY CIRCULAR FOR WOOD TC-TS 2225

STATIONARY WOOD CIRCULAR SAW TC-TS 2225

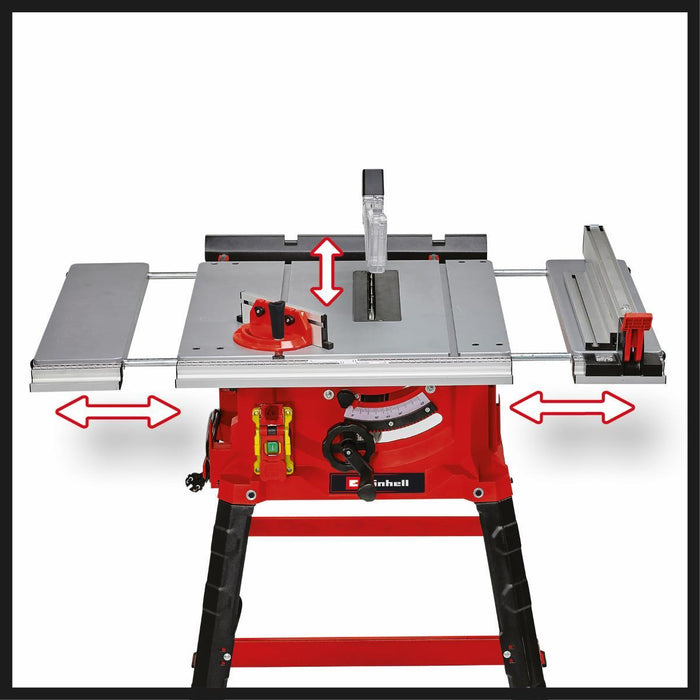

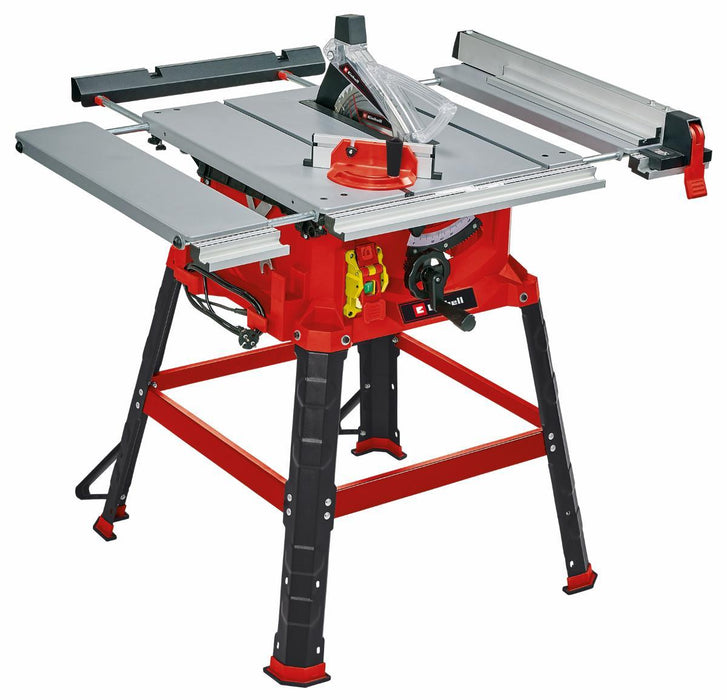

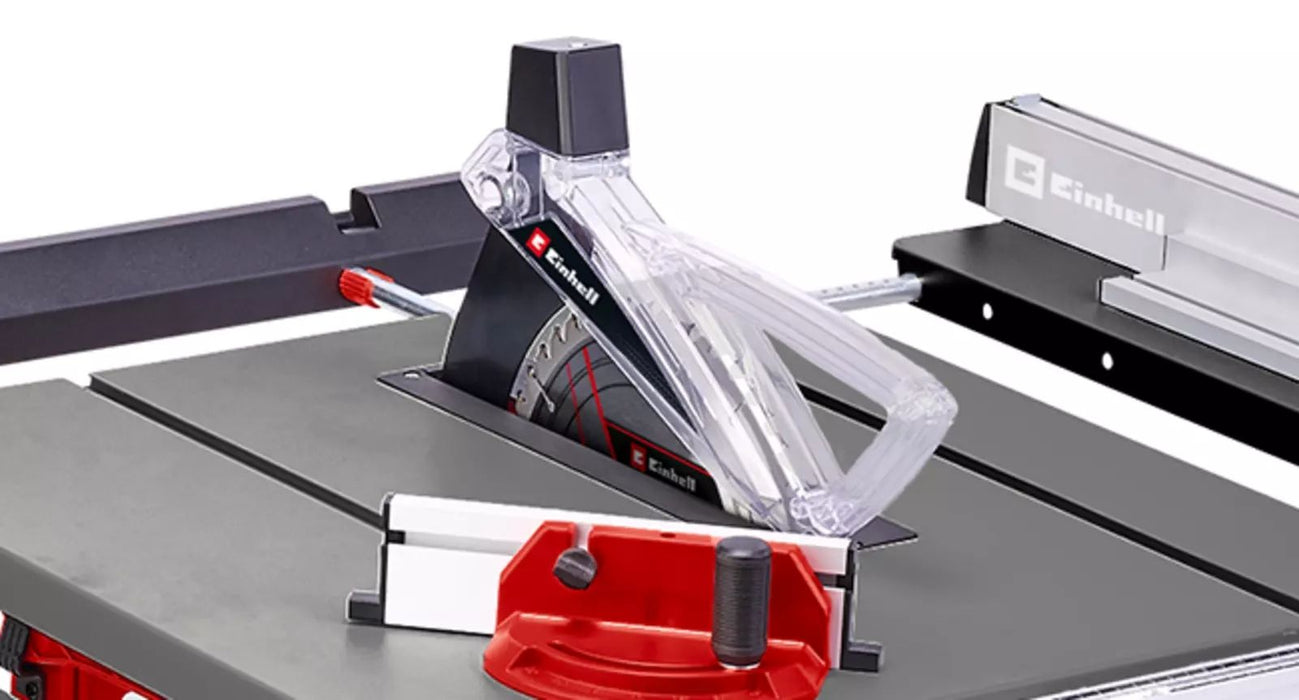

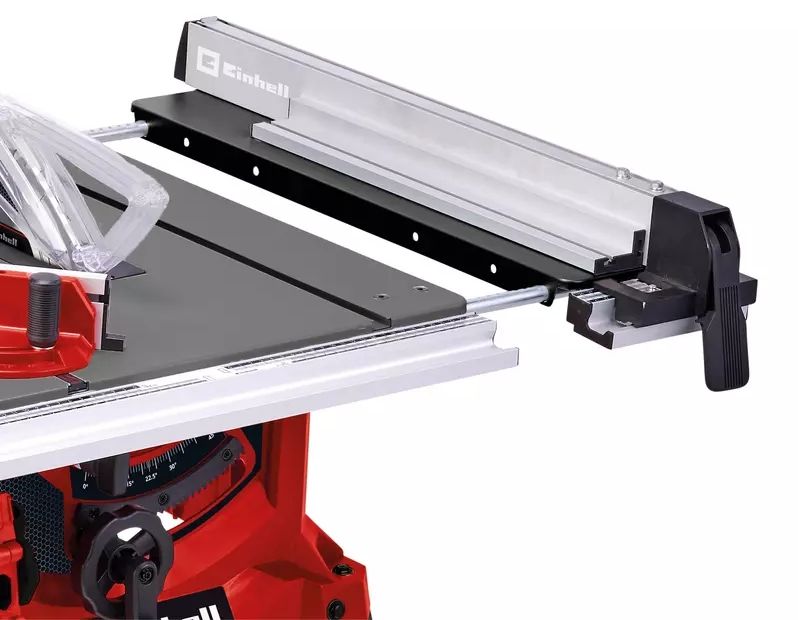

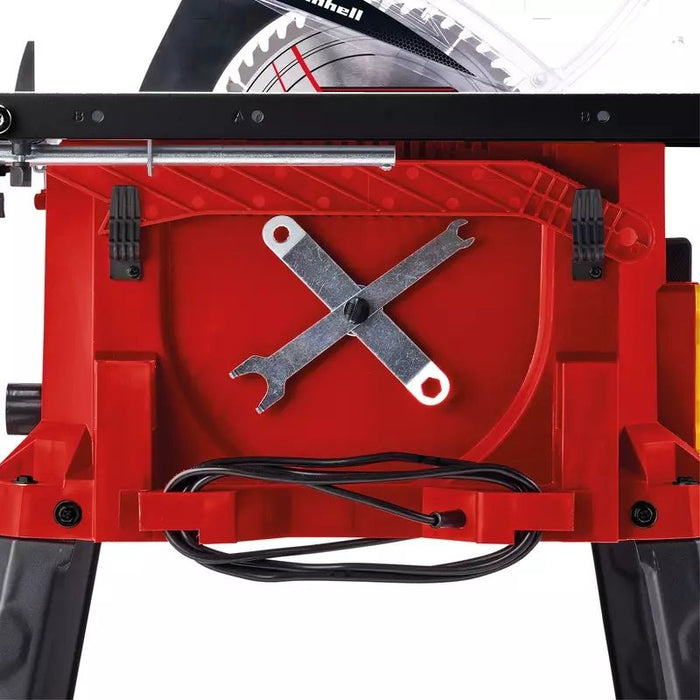

The table circular saw Einhell TC-TS 2225 U is a high-performance tool for precise and flexible work. The sturdy parallel guide with clamps on both sides allows longitudinal cuts, and for easy angled cutting an angle guide or tilting blade can be used. If a larger support surface is needed, there are pull-out side tables and a rear length extension. The powerful motor is designed to handle large tasks and has an integrated soft-start function to protect both it and the fuses. The housing holders are practical elements for attaching the included guides and tools, the push stick and the power cable.

Technical description:

• Number of teeth on circular blade 48 pcs
• Number of circular blades included in delivery 1 pc
• Cutting height 80 mm
• Diameter of circular blade 1-254 mm
• Maximum no-load speed 4250 min^-1
• Maximum power 2200 W
• Mains supply: 220-240 V
• Blade size: Ø254 X Ø30 mm

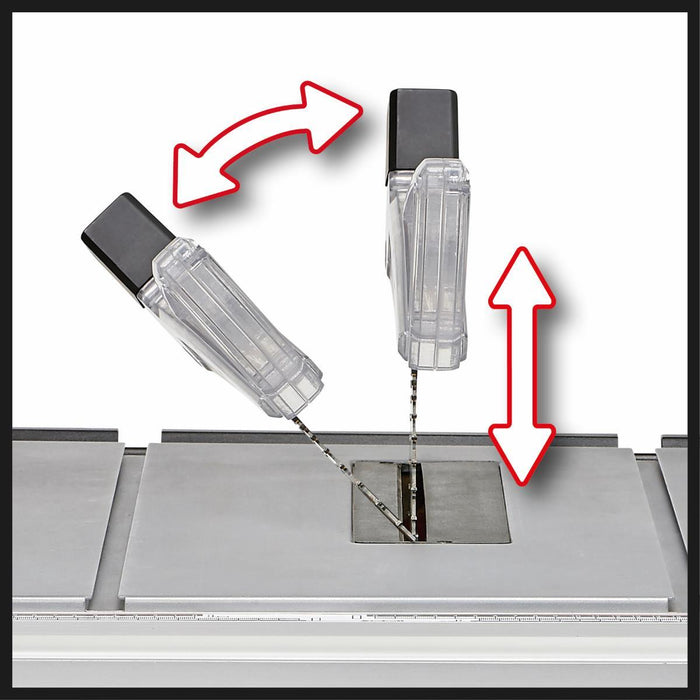

• Swivel range of cutting blade: 45°

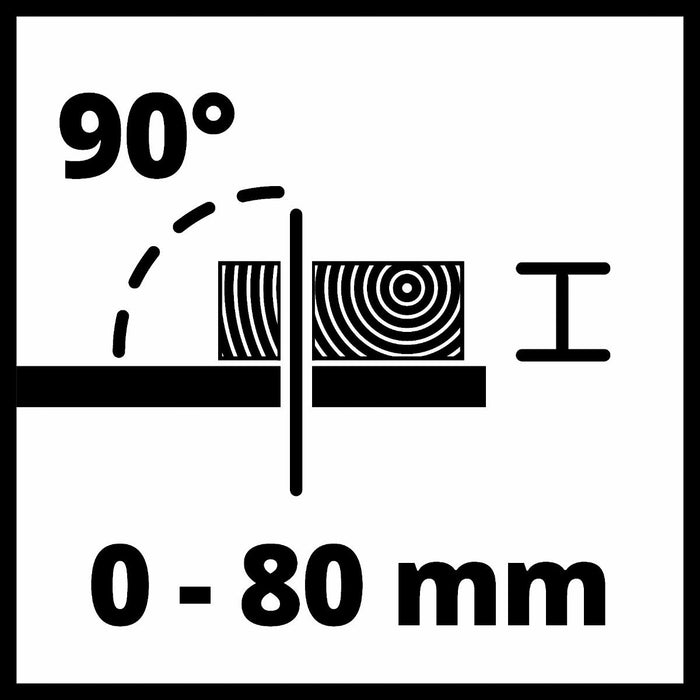

• Maximum cutting height at 90°: -80 mm
• Continuous height adjustment: 0-80 mm

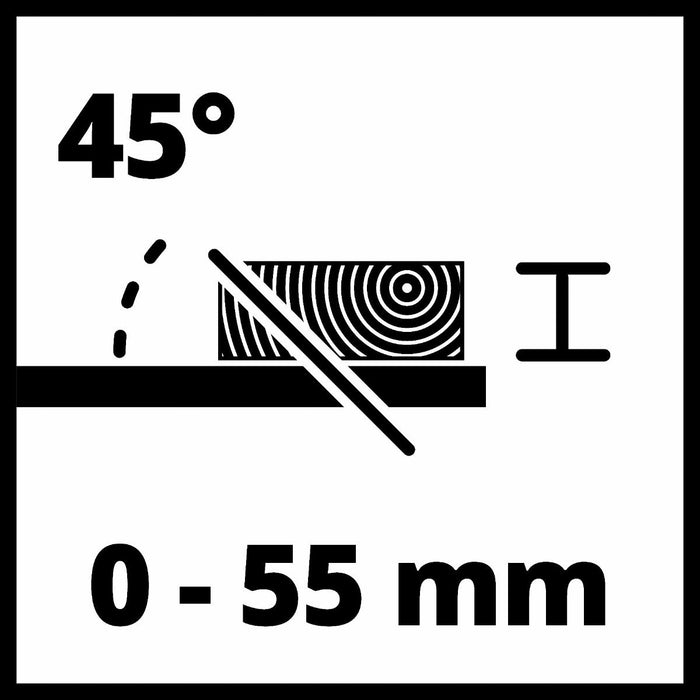

• Maximum bevel cutting height at 45°: 55 mm
• Working height: 870 mm
• Working table size: 580 X 555 mm
• Left table extension 580 X 150 mm
• Right table extension 580 X 150 mm
