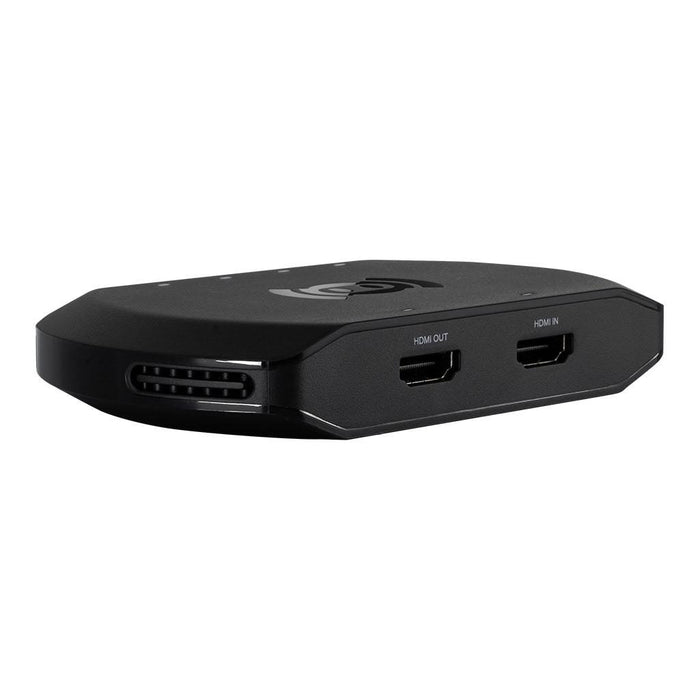

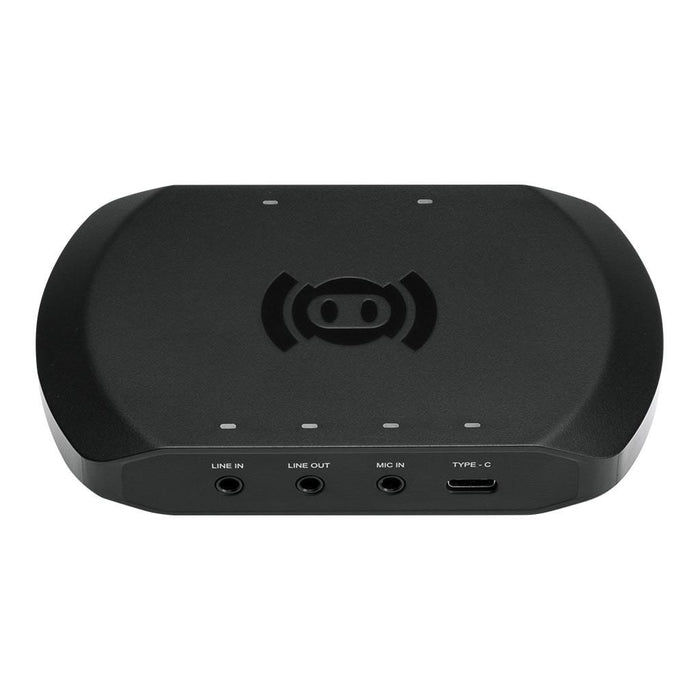

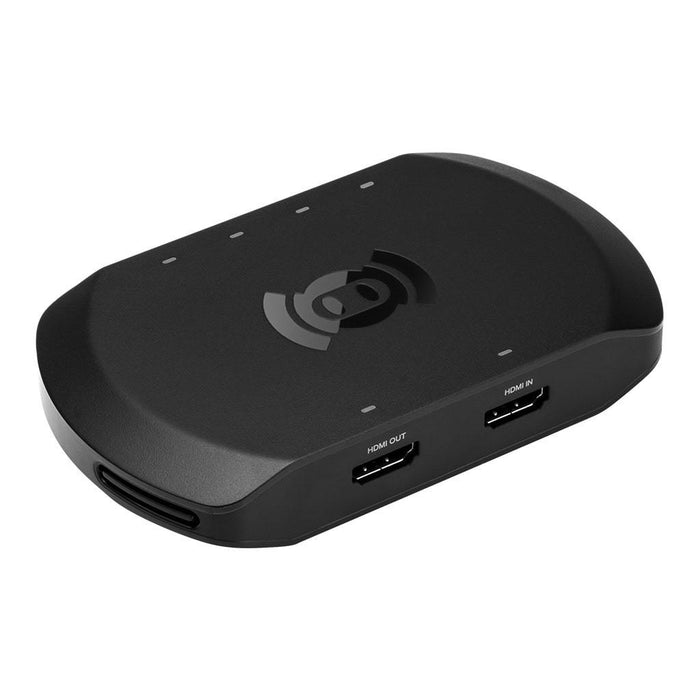

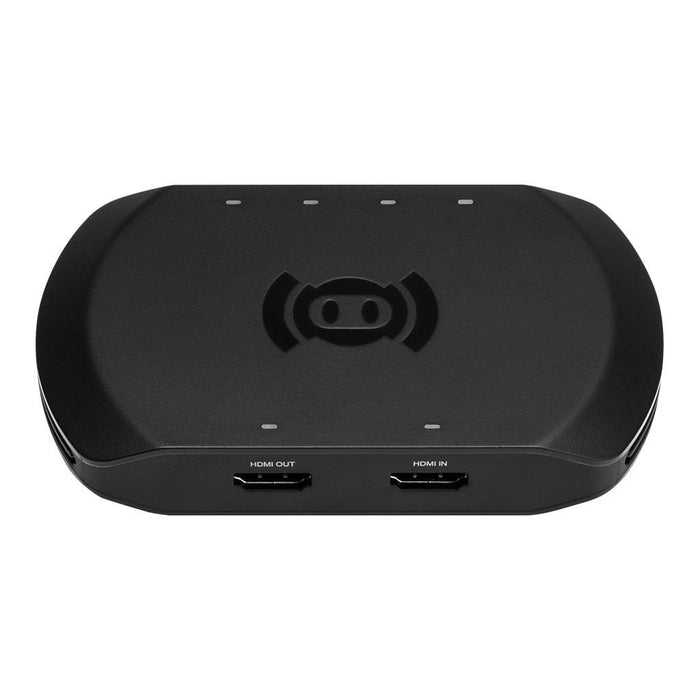

Streamplify CAPTURE 4K external capturer, USB-C

CAPTURE 4K is an all-in-one streaming device offering 4K/30 high definition streaming capture
capability, up to 4K@60Hz. CAPTURE 4K boasts ultra-low latency, sub-100ms and wide
compatibility between platforms such as OBS, Twitch, YouTube and major gaming consoles. Microphone support and
easy-to-use status indicators contribute to a seamless streaming experience.

- 4K/30Hz high resolution recording.
- Up to 4K@60Hz throughput.
- High sampling frequency: 48 KHz/24 bits.
- Ultra-low latency: under 100ms for seamless audio/video sync.
- VRR (variable refresh rate) and HDR support.

Max. Pass-Through Resolution: 4K@60Hz, 2560×1440@60Hz, 1920×1080@120Hz, 1080P@60Hz, 720P@60Hz, 480P@60Hz
Max. Recording Resolution: 4K@30Hz, 2560×1440@60Hz, 1080p@120Hz, 1080P@60Hz, 720P@60Hz, 480P@60Hz
Recording format: NV12/YUY2/XRGB
Connectivity: USB-C 3.2
Audio Capture Format: PCM2.0, sampling rate 48K/24Bit
High Dynamic Range (HDR): Yes (in passthrough mode)
Variable Refresh Rate (VRR): Yes (in passthrough mode)
HDCP support: yes (HDCP2.2)
Input: 4-pole 3.5 mm jack x 1
Audio output: 4-pole 3.5 mm jack x 1
Microphone input: 4-pole 3.5 mm jack x 1
Dimensions: 111 x 68.5 x 20.5 mm
Cable length (USB & HDMI): 100 cm
