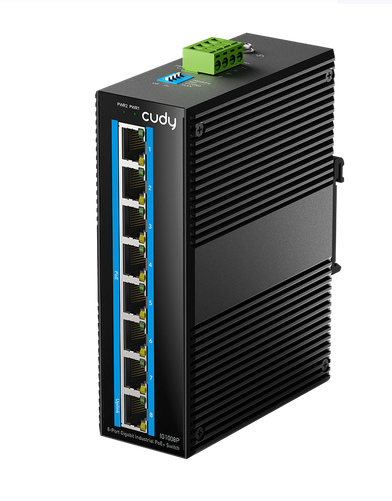

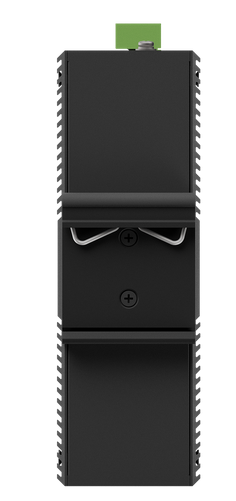

Switch Cudy IG1008P Industrial 8-Port 10/100/1000M PoE+ Switch 65W

Cudy IG1008P is an industrial 8-port Gigabit PoE+ switch designed for operation in harsh environments such as manufacturing, transportation, marine and mining environments.

Main features

• Ports :
• 8 × Gigabit RJ45
• All 8 ports support PoE+ (IEEE 802.3af/at) – up to 30W per port
• Total PoE budget : up to 240W

• Bandwidth : up to 16 Gbps
• Forwarding Rate : 11.9 Mpps
• Jumbo Frame : up to 9 KB
• Buffer : 1.5 Mbit
• MAC table : up to 4096 addresses

Smart features

• PoE Watchdog : automatically reboots devices that are unresponsive for over 5 minutes
• Operating modes :
• Extend Mode – up to 250 meters at 10 Mbps (on ports 1–4)
• VLAN Mode – isolates ports 1–7 for better security
• Broadcast Storm Prevention – prevents network overloads
• Physical buttons : to turn on/off the above modes

Power and protection

• Power supply : via 4-pin terminal block (DC 44–57V)
• Dual power supply : for redundancy
• ESD protection :
• Contact: 8 kV
• Air: 15 kV
• Overvoltage :
• RJ45 ports: up to 6 kV
• Power supply: up to 4 kV
• Reverse polarity and short circuit protection

Environmental sustainability

• Operating temperature : from –40°C to +75°C
• Storage : up to +85°C
• Housing : aluminum, with IP40 protection
• Vibration, shock and drop resistance – according to IEC standards
