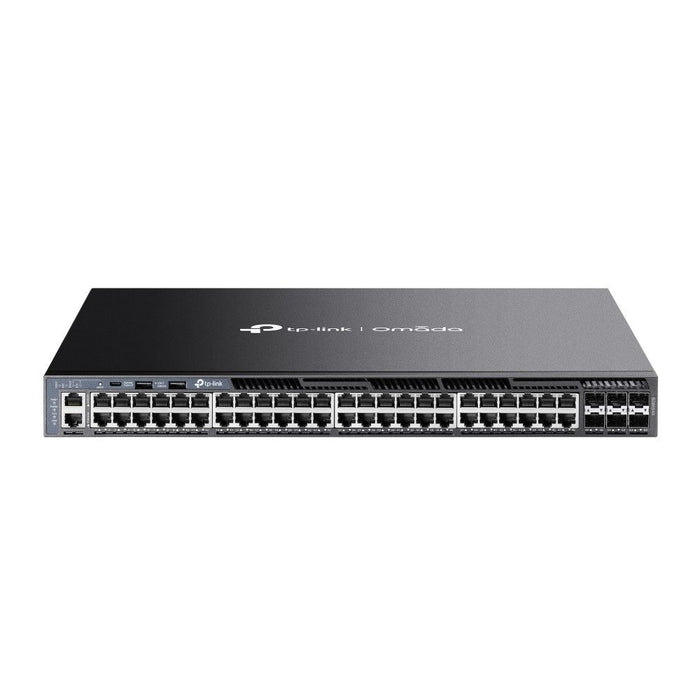

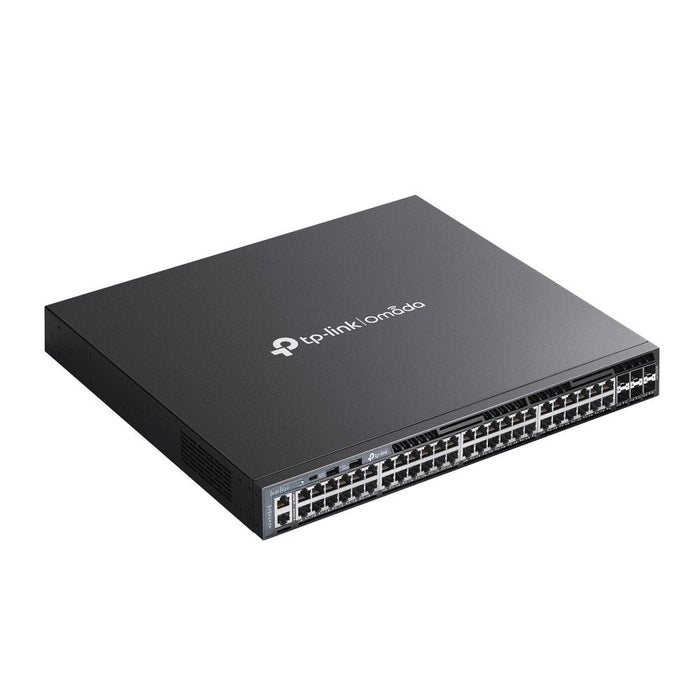

TP-Link Omada SG6654X Managed Switch is a professional L3 network solution designed for small and medium-sized businesses, corporate networks and ISPs. The model features 48 Gigabit RJ45 ports and 6 10 Gbps SFP+ slots, providing a switching capacity of 216 Gbps per device. It supports physical stacking of up to 4 units with a total switching capacity of up to 864 Gbps, ensuring scalability and built-in redundancy for critical business applications.
The switch offers a rich set of Layer 3 routing protocols, including Static Routing, RIP, OSPF, ECMP, VRRP, DHCP Server and DHCP Relay, which provide a flexible and scalable network architecture. Support for PIM-DM and PIM-SM multicast protocols ensures efficient routing for multicast groups. Integrated high availability features include two built-in redundant power modules, VRRP for virtual router redundancy and ERPS for fast protection and recovery in a ring topology.
Network security is ensured through advanced features such as ACL support (IPv4 and IPv6), Dynamic ARP Inspection, IEEE 802.1X authentication, MAB (MAC-based Authentication), Port Security and Secure Shell (SSH). The model supports up to 4K VLAN groups, advanced QoS with 8 priority queues, IGMP/MLD Snooping and Link Aggregation (Static and LACP). Spanning Tree protocols STP, RSTP and MSTP provide additional network stability.
Centralized management is provided by the Omada SDN controller with Zero-Touch Provisioning (ZTP), which facilitates mass deployment and configuration. Alternatively, the device can be managed independently via a web-based interface, CLI, SNMP, RMON, SSH or Telnet. The switch features 1 RJ45 Management port, 1 RJ45 Console port, 1 USB Type-C Console port and 2 USB 2.0 ports for flexible configuration and maintenance options.
Features:
- 48 gigabit RJ45 ports;
- 6 10 Gbps SFP+ slots for optical connectivity;
- Switching capacity: 216 Gbps per device;
- Physical stacking of up to 4 units with a total capacity of up to 864 Gbps;
- Packet forwarding speed: 160.7 Mpps;
- MAC address table: 32,000 entries;
- Packet Buffer Memory: 3 MB;
- Jumbo Frame support up to 9 KB;
- Layer 3 protocols: Static Routing, RIP, OSPF, ECMP, VRRP, PIM-DM, PIM-SM, DHCP Server/Relay;
- Two built-in redundant power modules (100–240 VAC, 50/60 Hz);
- Maximum power consumption: 39.8 W;
- Four built-in fans for efficient cooling;
- Support for up to 4K VLAN groups (802.1Q Tagged VLAN);
- Advanced QoS with 8 priority queues, Port Priority, IEEE 802.1p, DSCP;
- Security: ACL (IPv4/IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, DoS Defend;
- Authentication: RADIUS, TACACS+;
- Multicast support: IGMP Snooping, MLD Snooping, 2048 IGMP groups;
- Spanning Tree: STP, RSTP, MSTP;
- Link Aggregation: Static and LACP;
- Redundancy: ERPS, VRRP;
- IPv6 support;
- Centralized management via Omada SDN controller with Zero-Touch Provisioning;
- Alternative Management: Web GUI, CLI, SNMP, RMON, SSH, Telnet;
- 1 RJ45 Management port, 1 RJ45 Console port, 1 USB Type-C Console port, 2 USB 2.0 ports;
- Form factor: 1U 19-inch Rackmount;
- Operating temperature: -5 °C to 50 °C (at 300 meters above sea level);
- Operating humidity: 10-90% RH (non-condensing).
