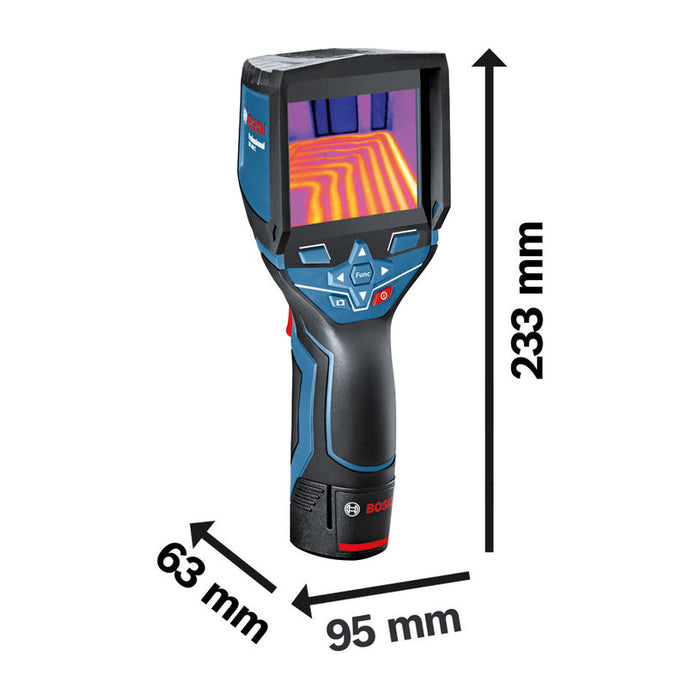

THERMAL CAMERA BOSCH PROFESSIONAL GTC 400 C

The Bosch Professional GTC 400 C thermal imager is suitable for instantly visualizing temperature differences and features an intelligent documentation system. The innovative tool is perfect for supporting a range of specialists in every phase of the project: from consulting the customer by showing clear images of the situation to preliminary tasks such as inspecting the layout of installed lines, through project documentation and even further repair and inspection work.

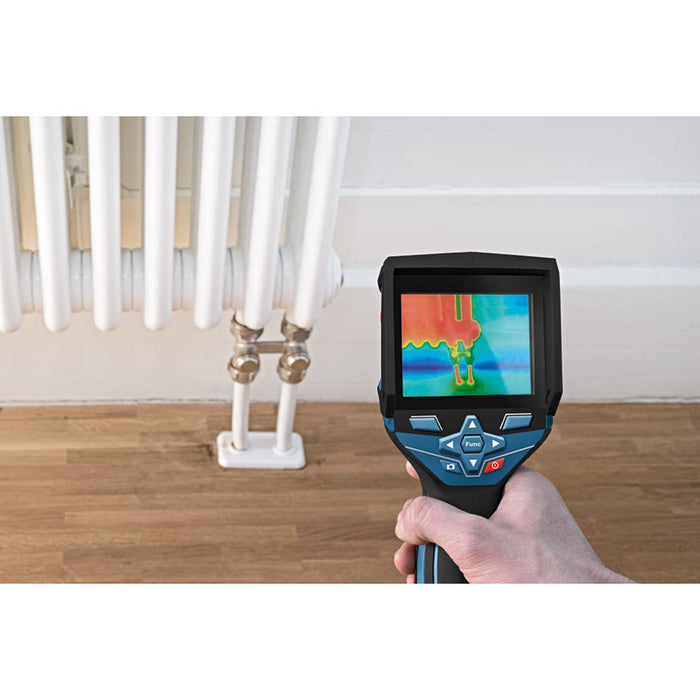

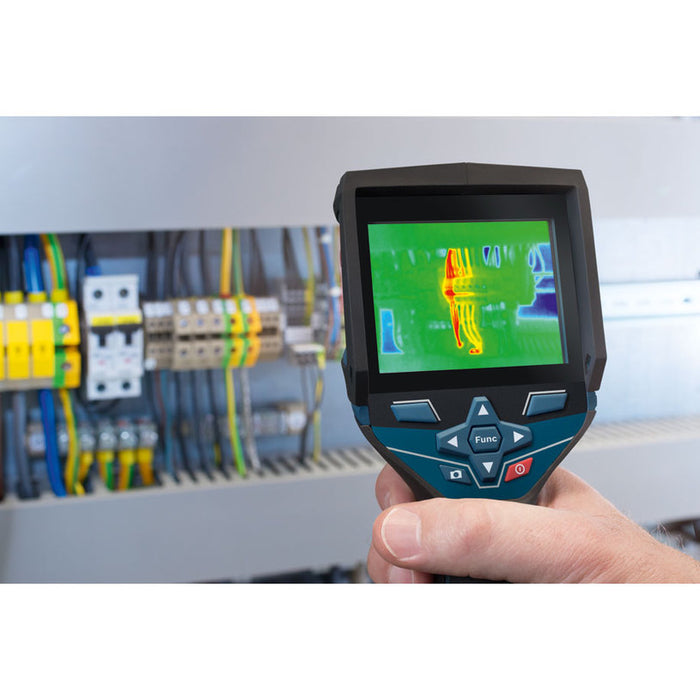

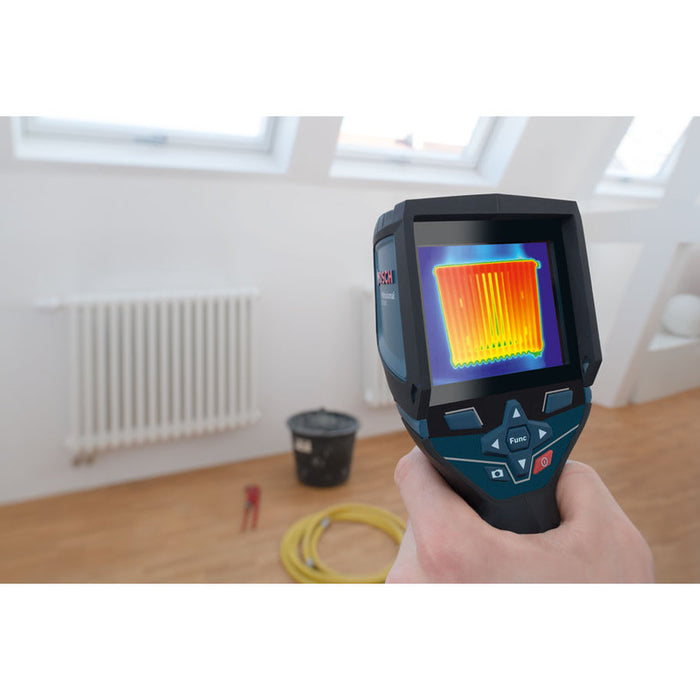

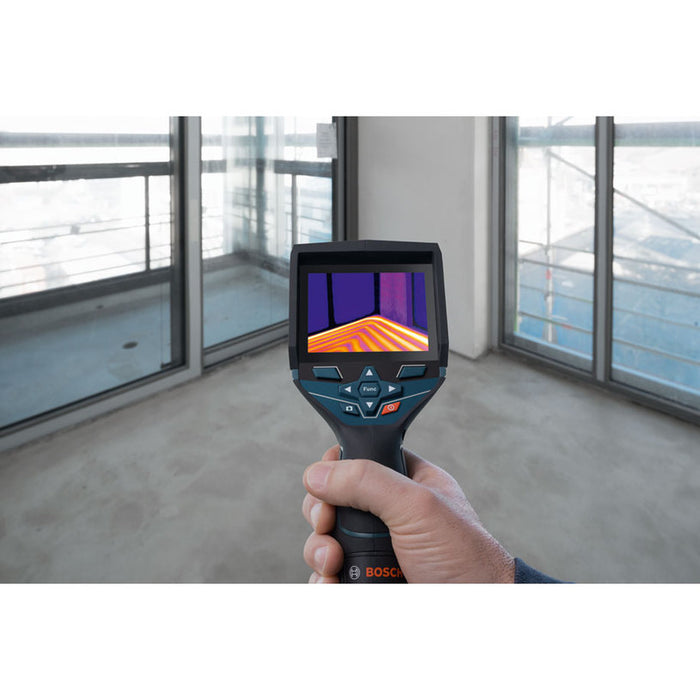

The Bosch Professional GTC 400 C immediately identifies overheated components in electrical installations, allowing for efficient system testing, inspections and maintenance. Thanks to the thermal imager, the user can easily determine the location of underfloor heating systems, heating elements and heating pipes for trouble-free inspection. The thermal imager provides easy orientation for the location of the measured values ​​via the integrated camera, which generates a visible image with thermal image overlay.

The tool is extremely easy to use with clear, easy-to-read thermal images for an easy introduction to the world of thermography. The model is equipped with an infrared sensor with 19,200 measuring pixels (160 x 120) for detailed, informative thermal imaging. It allows you to choose between different color modes of the thermal image, systematically highlighting the coldest and warmest pixel, and the dynamic scale automatically adapts to the measured minimum and maximum values.

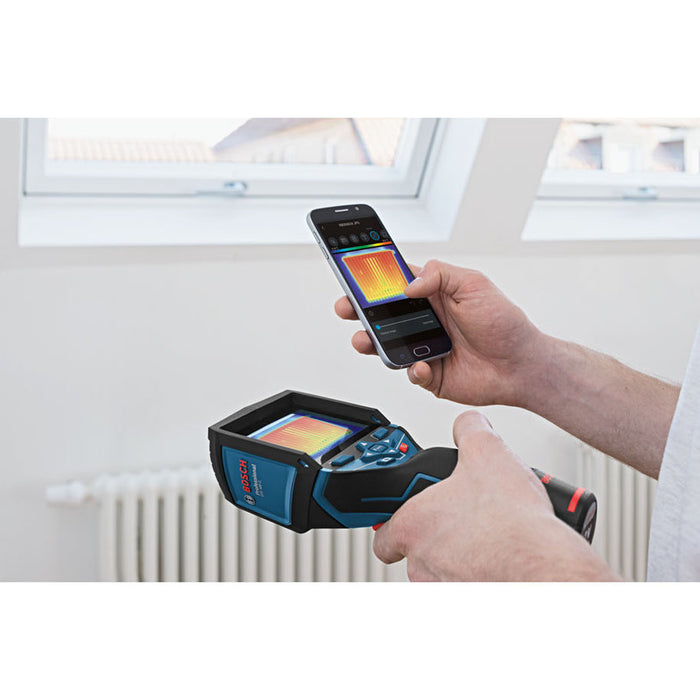

Supports easy documentation and fast data exchange using the Bosch Thermal app, which allows the user to connect their smartphone or tablet to the instrument and import thermal images, including measurement data. Images can be edited directly in the app, or raw thermal images can be transferred to a computer via USB for editing using the GTC software.

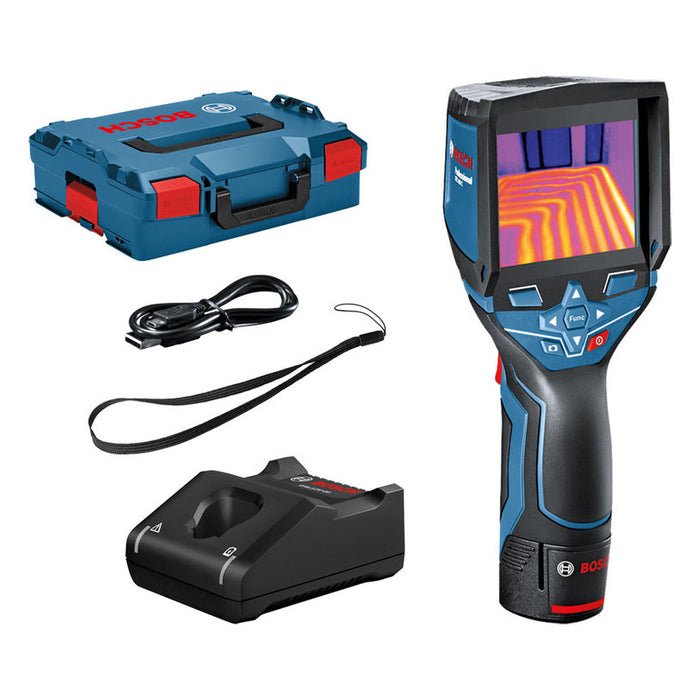

The thermal imager offers greater flexibility thanks to the Dual Power Source system, thanks to which the model can be used with a 12 V lithium-ion battery or with standard alkaline batteries. The thermal imager is extremely durable and is equipped with IP 53 dust and splash water protection for trouble-free use on the construction site. It has a 3.5-inch TFT display for clear visibility of the detail and saves up to 500 .jpg files for maximum convenience during intensive use on large construction sites. A robust L-Boxx plastic case is included for safe storage and easy transport, as well as a 12V / 2.0Ah lithium-ion battery and charger.
