Thermal Grizzly Benchtable Der8enchtable Hardware Test Board

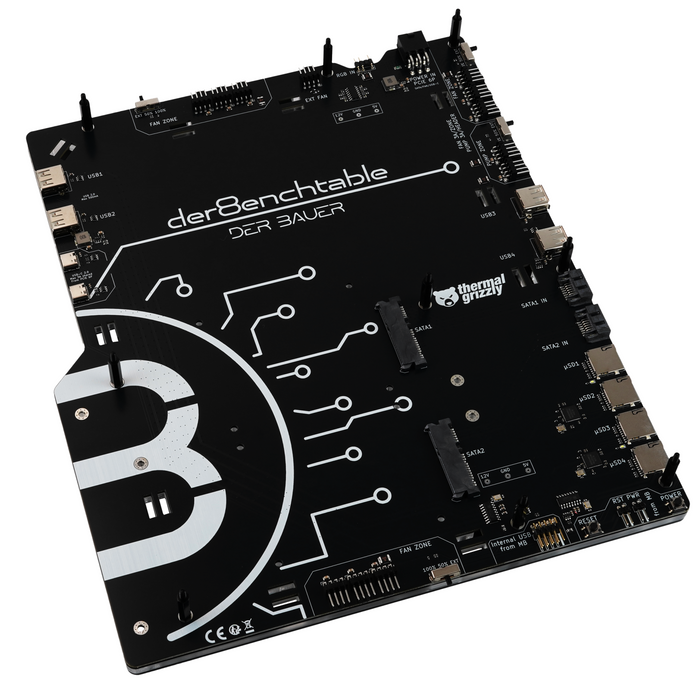

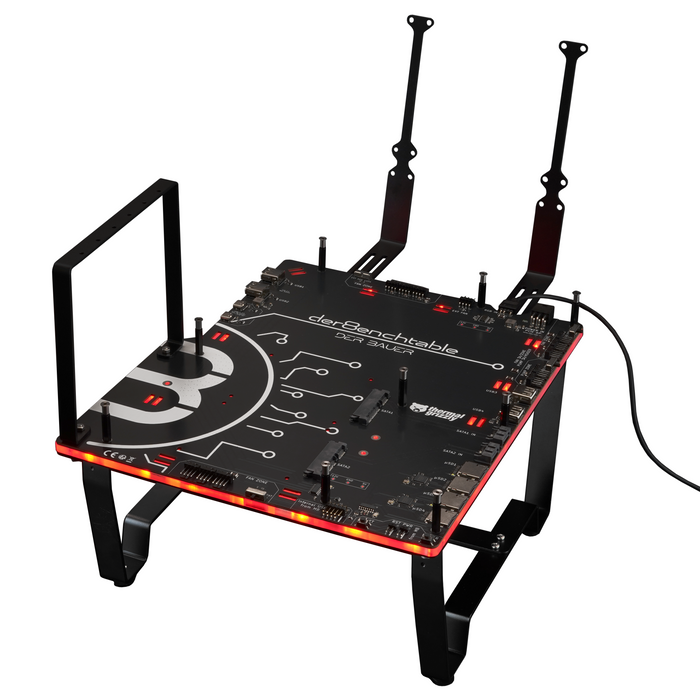

Der8enchtable is a professional test platform created in collaboration between Thermal Grizzly , Jon “elmor” Sandström (ElmorLabs), and Roman “der8auer” Hartung . In addition to the standard features of a bench table – such as integrated radiator and power supply mounts – it includes a base module with an integrated printed circuit board (PCB) for direct connection to the hardware under test.

Main features

• Professional test bench with active PCB
• Developed in collaboration with ElmorLabs and der8auer
• 3+1 control zones for fans and AIO coolers
• SSD, USB and microSD support for operating system and test software
• Compact, modular and convenient design
• Compatible with air and AIO coolers
• A-RGB lighting

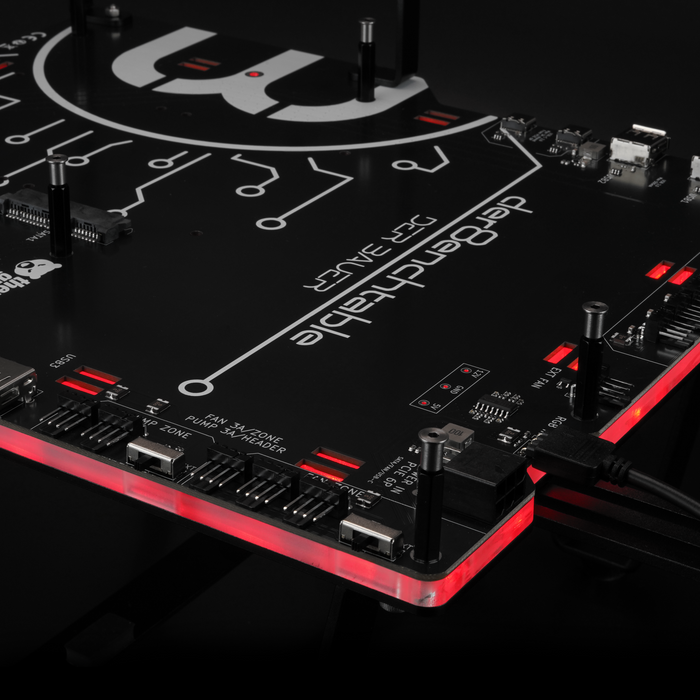

Fan and pump control

• Three fan control zones, each with three 4-pin connectors
• Each zone can be switched independently to 50% or 100% speed
• Provides 3 A current to the fans, with its own fuse
• Control can also be done externally via the motherboard
• Additional zone for pumps or fans with two 4-pin connectors, 3 A per port (6 A total)

Connectivity and storage

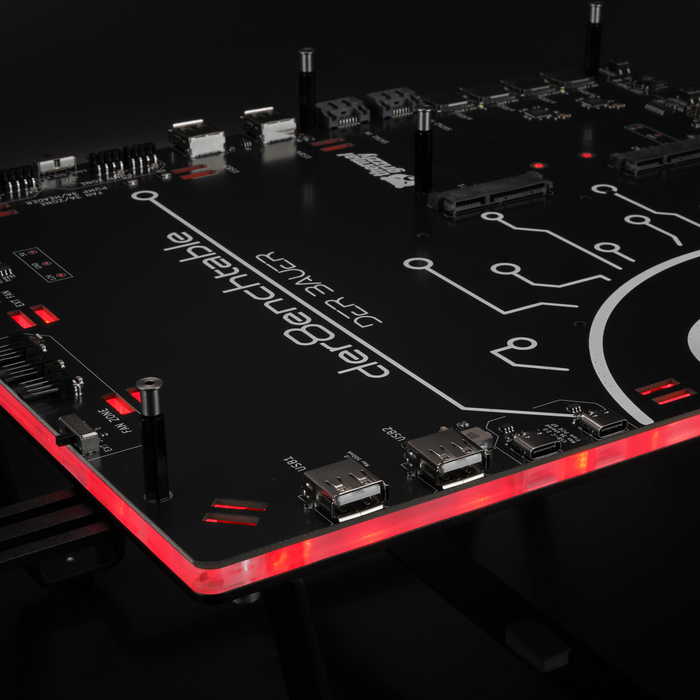

• USB ports : 4× Type-A, 2× Type-C

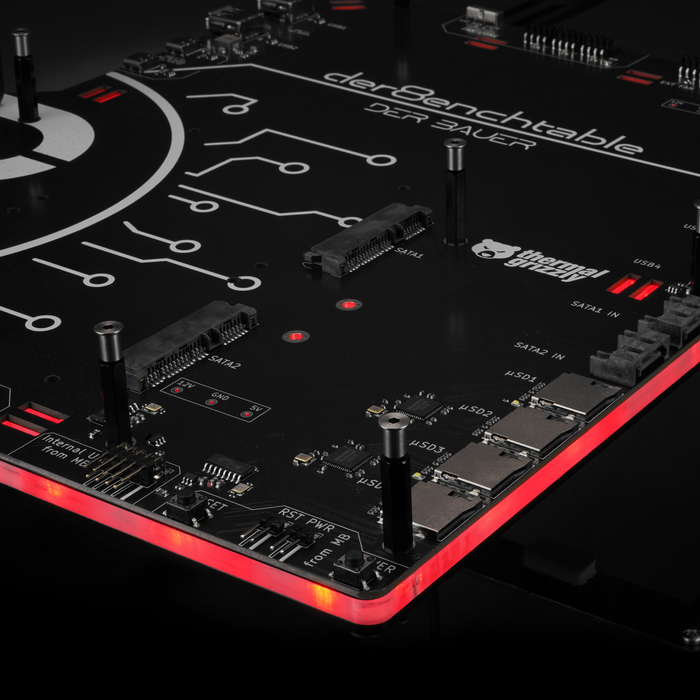

• Direct mounting capability for up to two 2.5-inch SSDs
• 4 microSD card slots – an economical alternative to SSD at a price per gigabyte
• Connecting the test motherboard via a 9-pin USB header
• Power via PCIe 6-pin cable
• aRGB lighting control via 3-pin header or external RGB controller (not included)
• Built-in power button and reset function , connected to the motherboard

Design and compatibility

• The PCB has pre-installed ATX motherboard mounts , with the ability to be reconfigured for Micro-ATX and Mini-ITX

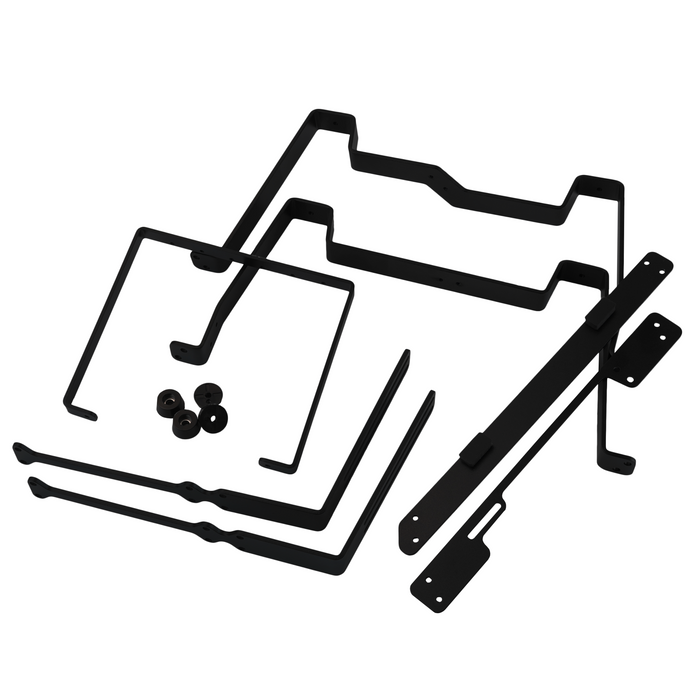

• A power supply can be mounted at the bottom of the aluminum frame with a black anodized finish

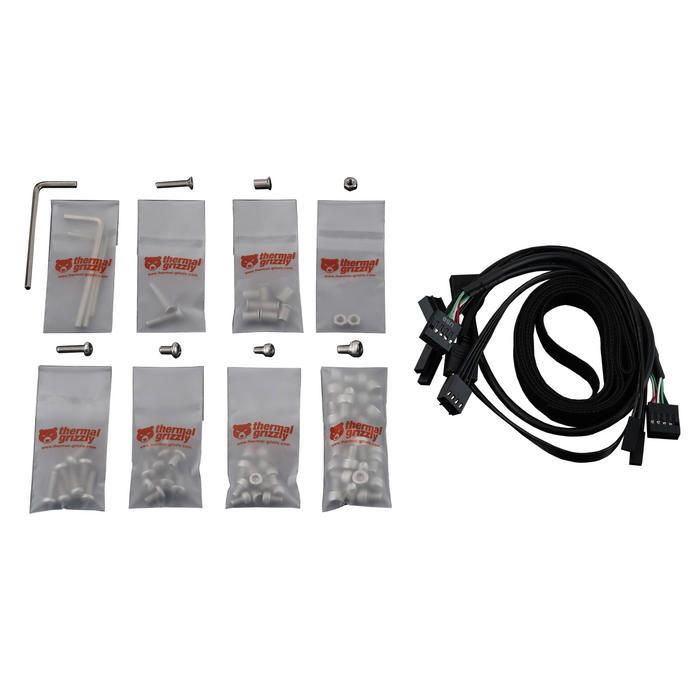

• Velcro included for cable management
• If the lower frame is not used, the legs can be mounted directly to the base module , making the platform significantly more compact.
