Uni-T UT315A Vibration Tester

Uni-T UT315A Vibration Tester

by Uni-t
€310,90 - €310,90
€310,90
€310,90 - €310,90
€310,90
SKU DGT0445084
Ships within 7 business days Please note that quantities are limited and dynamic. At the time of ordering, the item may be out of stock. We will notify you in a timely manner in the event that we are unable to fulfill the order.

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

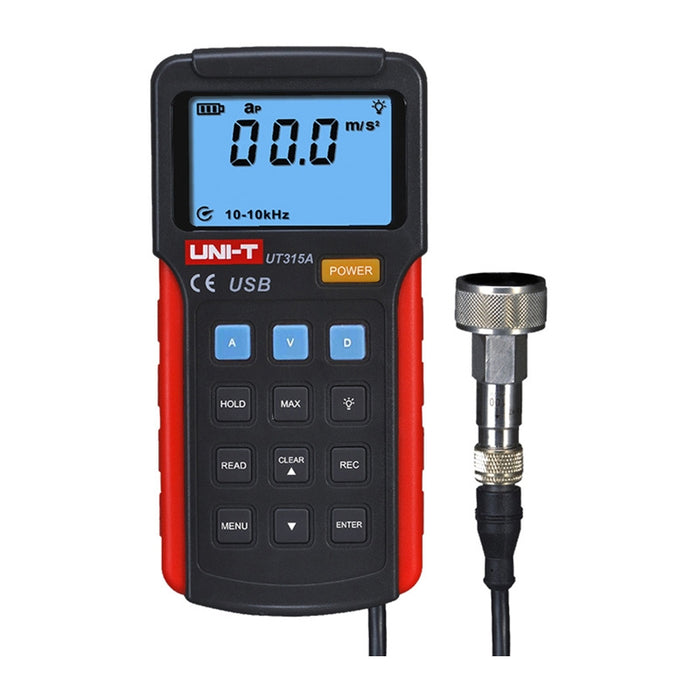

Uni-T UT315A Vibration Tester

The Uni-T UT315A vibration tester is a compact device for rapid diagnostics of rotating and reciprocating machinery, measuring acceleration (0–199.9 m/s²), vibration velocity (0–19.99 cm/s RMS), and displacement (1–1.999 mm P-P). A wide frequency range (up to 10 kHz for acceleration) and good accuracy allow for a realistic assessment of equipment condition and the detection of abnormalities at an early stage. The device offers practical features for daily use, such as result hold, auto-off, and low-battery warning, and operates for over 8 hours on a single 9V battery. It is a tool that works well in both service and maintenance applications.

Uni-T vibration tester connected to the device

Included in the set

  • Uni-T UT315A vibration tester
  • 9V battery (6F22)
  • Storage case
  • User manual
  • Manufacturer’s packaging



Manufacturer Uni-T
Model UT315A
Acceleration measurement 0 ~ 199.9 m/s²
Frequency range (acceleration) 10 Hz ~ 10 kHz
Accuracy (acceleration) ±(5% + 0.2 m/s²)
Velocity measurement 0 ~ 19.99 cm/s (RMS)
Frequency range (velocity) 10 Hz ~ 1 kHz
Accuracy (velocity) ±(5% + 0.02 cm/s)
Displacement measurement 1 ~ 1.999 mm (P-P)
Frequency range (displacement) 10 Hz ~ 500 Hz
Accuracy (displacement) ±(5% + 0.002 mm)
Display 2000 counts
Functions Data Hold, auto power off, low battery indicator
Power supply 9V battery (6F22)
Weight 395 g
Dimensions 166 × 80 × 30 mm
Certifications CE, UKCA
