Uni-T UT501B Insulation Resistance Tester

Uni-T UT501B Insulation Resistance Tester

by Uni-t
€72,90 - €72,90
€72,90
€72,90 - €72,90
€72,90
SKU DGT0453728
Ships within 7 business days Please note that quantities are limited and dynamic. At the time of ordering, the item may be out of stock. We will notify you in a timely manner in the event that we are unable to fulfill the order.

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

Uni-T UT501B Insulation Resistance Tester

The Uni-T UT501B Insulation Resistance Tester is a versatile and precise measuring device from the UT500 series, designed to measure insulation resistance, AC voltage, and low resistance in electrical installations and equipment. The model offers test voltages of 250V/500V/1000V, measurement accuracy of ±(3%+5), as well as advanced PI and DAR diagnostic functions. Equipped with a clear 2000-count LCD display, automatic range selection, continuous measurement function, and an alert system (buzzer and LED), it ensures convenience and safety when testing transformers, motors, cables, and high-voltage installations. The UT501B stands out for its intuitive operation and compact, rugged design (weight 500 g), making it an ideal tool for electricians and service technicians. The model is CE and UKCA certified.

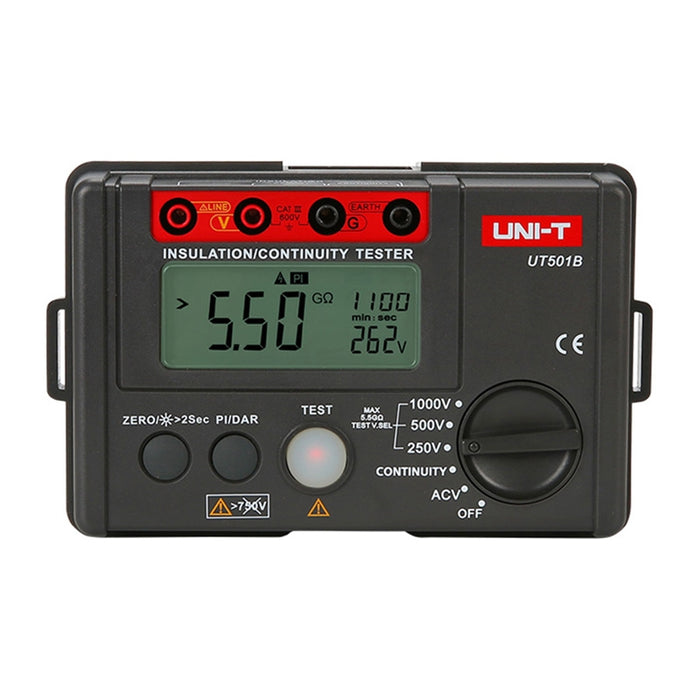

Uni-T insulation resistance tester on a gray background

Included

  • Uni-T UT501B Insulation Resistance Tester
  • Test leads
  • Alligator clips
  • Batteries
  • Carrying strap



Manufacturer Uni-T
Model UT501B
Test voltage range 250V / 500V / 1000V
Insulation resistance measurement up to 5GΩ
AC voltage measurement 30V–600V
Short-circuit current <2mA
Additional features PI and DAR functions, auto-discharge, auto-range selection, continuous resistance measurement, 2000-count backlit LCD display
Power supply 6 × 1.5V (LR6)
Dimensions 150 × 100 × 71 mm
Weight 500 g
