Uni-T UT512 High-Voltage Insulation Resistance Tester

Uni-T UT512 High-Voltage Insulation Resistance Tester

by Uni-t
€158,90 - €158,90
€158,90
€158,90 - €158,90
€158,90
SKU DGT0453726
Ships within 7 business days Please note that quantities are limited and dynamic. At the time of ordering, the item may be out of stock. We will notify you in a timely manner in the event that we are unable to fulfill the order.

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

Uni-T UT512 High-Voltage Insulation Resistance Tester

The Uni-T UT512 High-Voltage Insulation Resistance Tester is an advanced measuring device designed for diagnosing electrical installations and large machinery, such as transformers, generators, and high-voltage motors. It offers a wide range of test voltages up to 2500 V, insulation resistance measurement up to 100 GΩ, as well as PI and DAR functions that help assess the condition of insulation over time. Thanks to the built-in memory, it is possible to save up to 18 sets of results, which can then be transferred to a computer via USB. The included software enables data analysis, which is particularly useful for regular inspections and documenting the condition of the installation. A large, high-resolution screen with a 30-segment bar graph allows you to quickly assess the result without having to analyze the numbers in detail. The backlight facilitates work in low-light conditions, and the intuitive operation makes the device suitable for use both in the field and in the workshop.

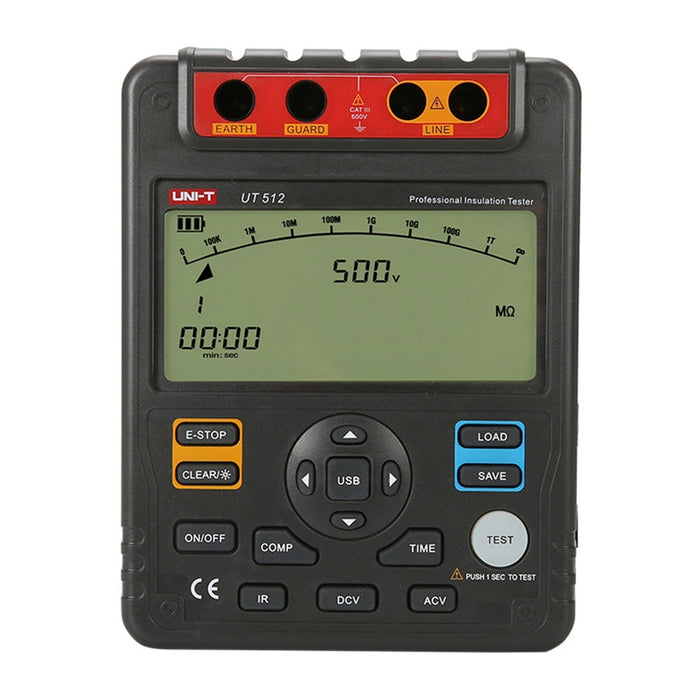

Uni-T high-voltage insulation resistance tester on a gray background

Included in the set

  • Uni-T UT512 Insulation Resistance Tester
  • Red test lead (two-pin) with alligator clip
  • Test leads (single-pin) with alligator clips (2 pieces)
  • AC adapter
  • USB cable
  • CD with PC software
  • Battery set (8 × 1.5V LR14)



Manufacturer Uni-T
Model UT512
Test voltages 500 V, 1000 V, 2500 V
Insulation resistance measurement range up to 100 GΩ
Measurement accuracy up to ±(3%+5) (depending on range)
Data memory 18 sets
Display 9999 with analog bar graph (30 segments)
Features Continuous measurement mode, auto power off, LCD backlight, automatic current discharge
Power supply 8 × 1.5V battery (LR14)
Dimensions 202 × 155 × 94 mm
Weight approx. 1.8 kg
Certifications CE, UKCA
