Uni-T UT620C+ Digital Microohmmeter

Uni-T UT620C+ Digital Microohmmeter

by Uni-t
€174,90 - €174,90
€174,90
€174,90 - €174,90
€174,90
SKU DGT0453720
Ships within 7 business days Please note that quantities are limited and dynamic. At the time of ordering, the item may be out of stock. We will notify you in a timely manner in the event that we are unable to fulfill the order.

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

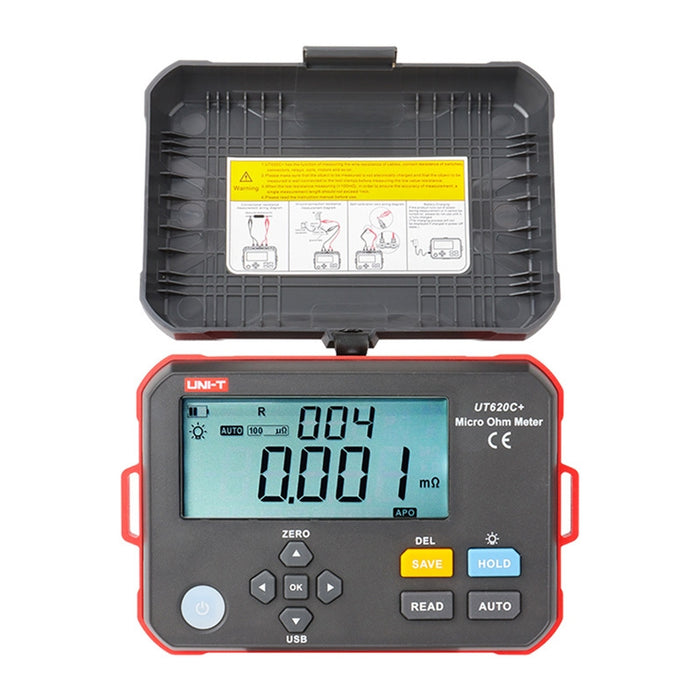

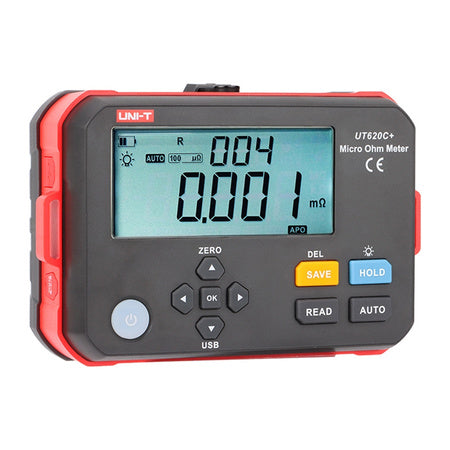

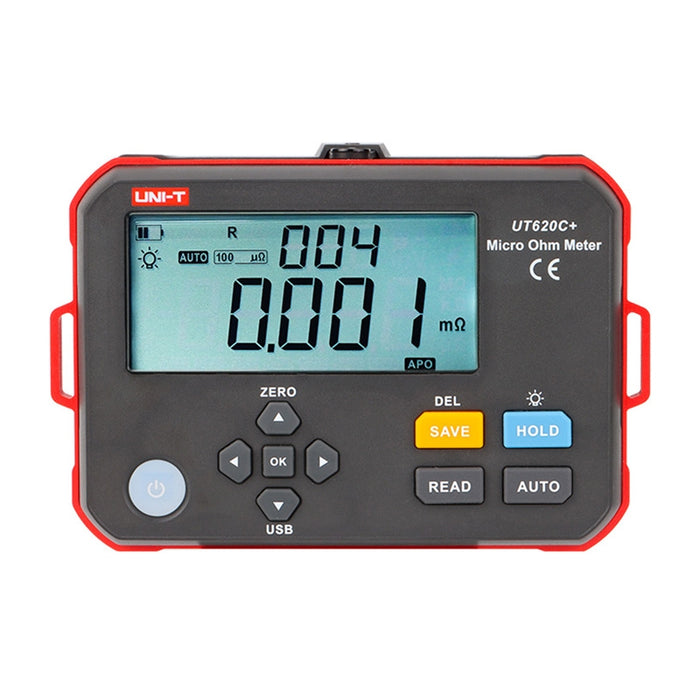

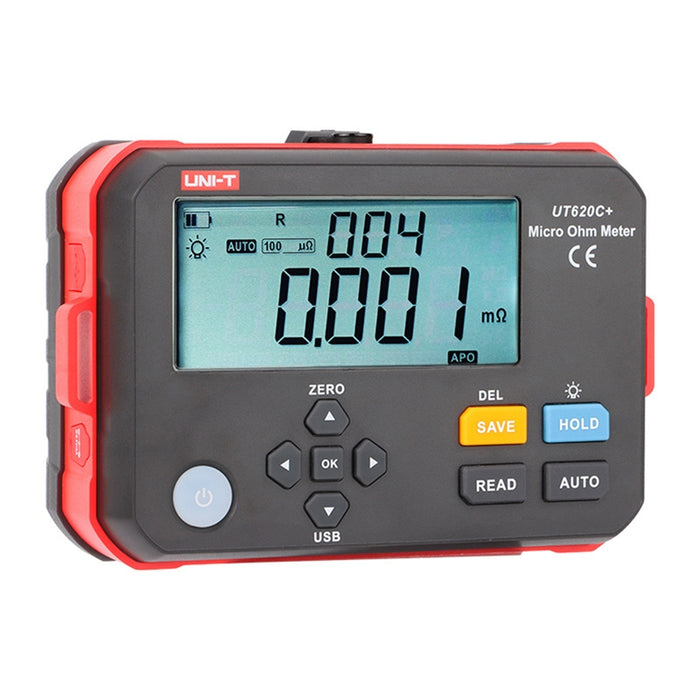

Uni-T UT620C+ Digital Micro-Ohm Meter

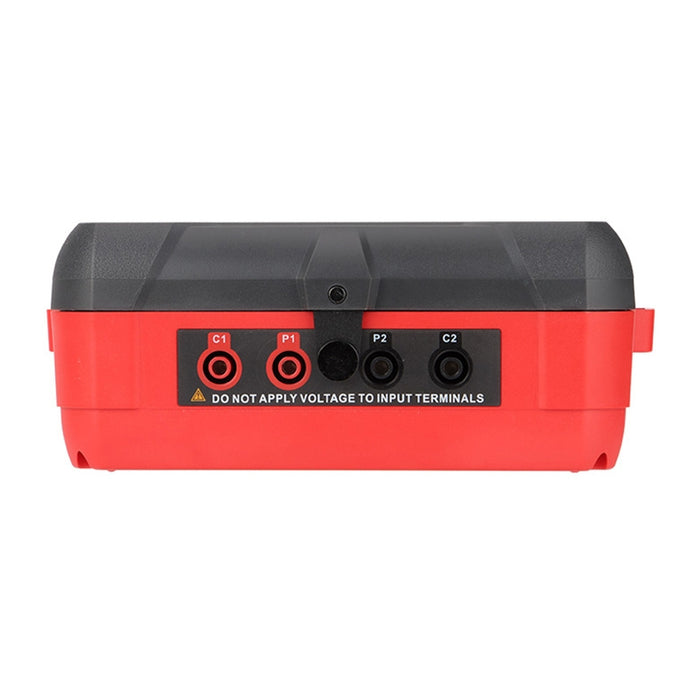

The Uni-T UT620C+ Digital Micro-Ohm Meter is a precision instrument designed for measuring very low resistances—from 0.001 mΩ up to 300 kΩ—making it ideal for testing both small components and more complex systems. High resolution down to 1 μΩ and accuracy of ±0.1% FS allow for the detection of even slight changes in resistance, which is crucial for technical diagnostics. The use of the four-wire method minimizes the influence of test leads on the result, and a test current of up to 1 A enables stable measurements under various conditions. Additionally, the device offers storage for up to 500 results, a clear backlit LCD display, and a compact, portable design with battery power.



Manufacturer Uni-T
Model UT620C+
Resistance measurement range 0.001 mΩ – 300.0 kΩ
Resolution up to 1 μΩ
Open-circuit voltage ≤ 4.2 V
Measurement rate approx. 2 measurements/s
Memory up to 500 data sets
Display backlit segment LCD
Interface USB Type-C
Input protection up to 36 V AC/DC
Protection rating IP54
Power supply 3.7 V / 3200 mAh Li-ion battery
Power consumption ≤ 8 W
Dimensions 161 × 117 × 68 mm
Weight 480 g (with battery)
