Uni-T UT692G Fiber Optic Tester

Uni-T UT692G Fiber Optic Tester

by Uni-t
€31,90 - €31,90
€31,90
€31,90 - €31,90
€31,90
SKU DGT0543155
Ships within 7 business days Please note that quantities are limited and dynamic. At the time of ordering, the item may be out of stock. We will notify you in a timely manner in the event that we are unable to fulfill the order.

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

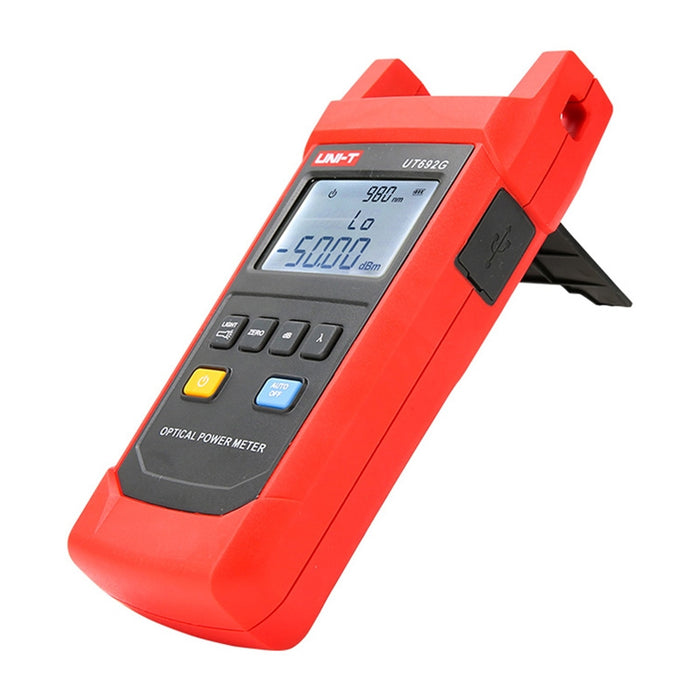

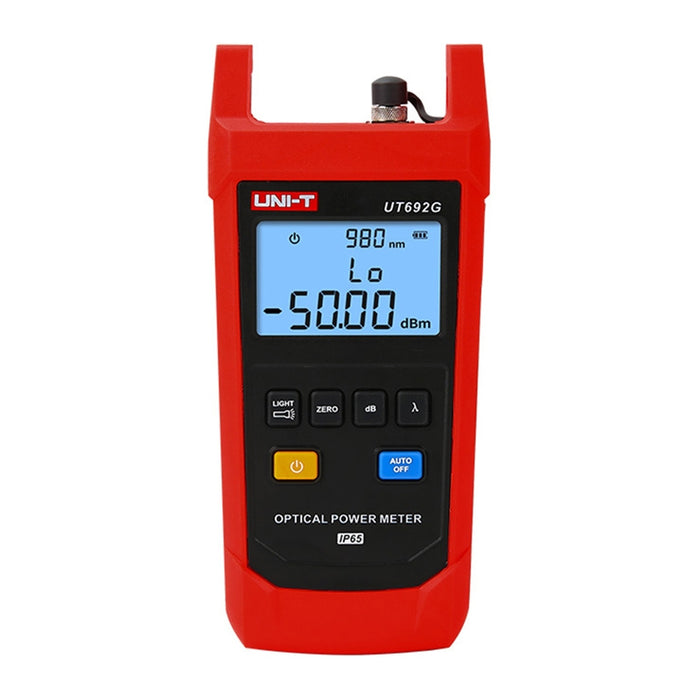

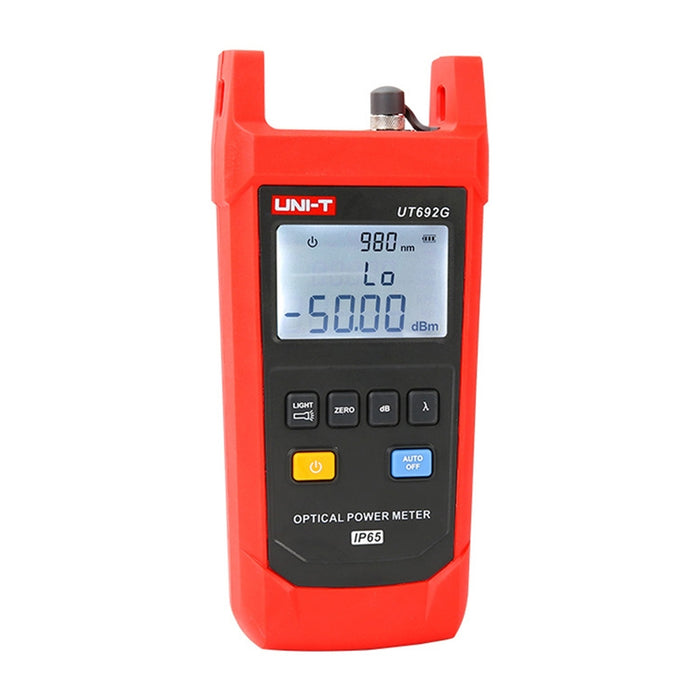

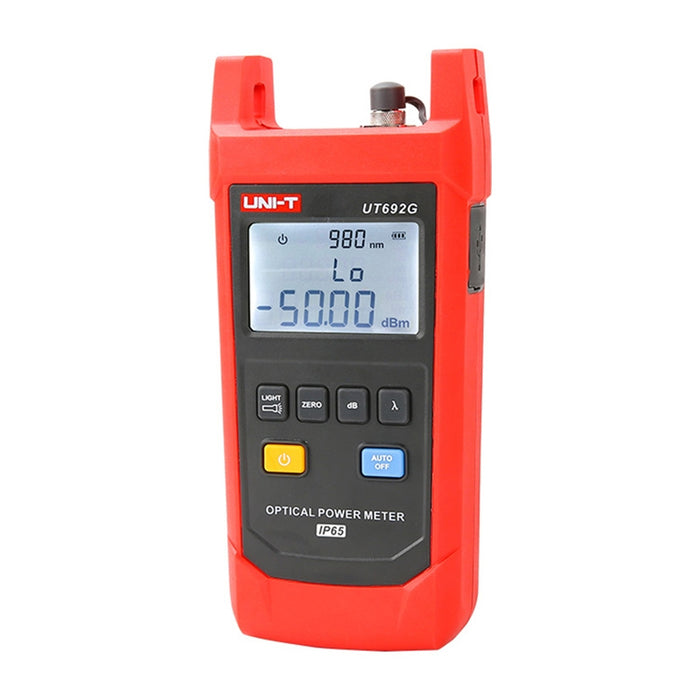

Uni-T UT692G fiber optic tester

The Uni-T UT692G is a fiber optic tester designed to measure optical power and signal loss in fiber optic networks. The model offers an extended measurement range from -50 to +26 dBm, making it ideal for working with higher-power signals. Support for wavelengths from 800 to 1700 nm, stored reference values, and an InGaAs sensor allow for quick device configuration and stable, repeatable measurement results.

Fiber optic tester measuring the optical signal level in a network device mounted in a rack cabinet.

Features for easier field work

The device is equipped with a backlit LCD display, data memory, and a user calibration function, which streamlines daily network diagnostics. The built-in flashlight improves working comfort in dimly lit areas, and the auto-off feature helps reduce power consumption. The IP65-rated housing protects against dust and splashes, and the device’s ability to withstand drops from up to 2 meters makes it well-suited for mobile use.

A person holds an optical power tester connected to a fiber optic cable in a telecommunications cabinet.

Included

  • Fiber optic tester
  • 3 AA batteries
  • Carrying case
  • User manual

Specifications

Manufacturer Uni-T
Model UT692G
Product type Optical power meter
Power measurement range -50...26 dBm
Wavelength range 800–1700 nm
Calibrated wavelengths 850 nm / 980 nm / 1300 nm / 1310 nm / 1490 nm / 1550 nm / 1625 nm / 1650 nm
Measurement accuracy ±5%
Sensor type InGaAs
Linear resolution 0.1%
Logarithmic resolution 0.01 dB
Data logging memory 60 data sets
Display type Backlit LCD

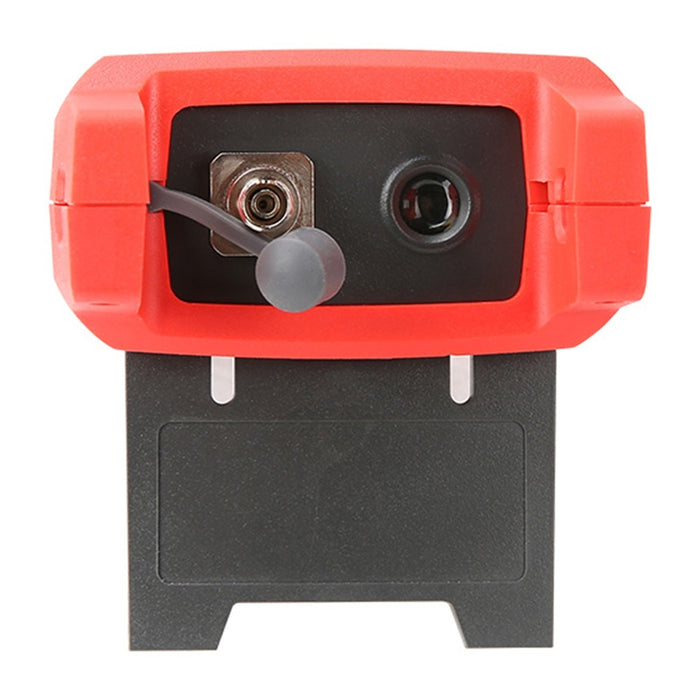

Connector types FC / SC / ST (2.5 mm adapter)
Power supply 3 × 1.5 V AA batteries
Operating time ≥60 hours
Protection and durability IP65, 2 m drop resistance
Dimensions 189 × 87 × 45 mm
Weight 286 g
Certifications CE, UKCA
