Uni-T UT701 Process Calibrator

Uni-T UT701 Process Calibrator

by Uni-t
€192,90 - €192,90
€192,90
€192,90 - €192,90
€192,90
SKU DGT0543157
Ships within 7 business days Please note that quantities are limited and dynamic. At the time of ordering, the item may be out of stock. We will notify you in a timely manner in the event that we are unable to fulfill the order.

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

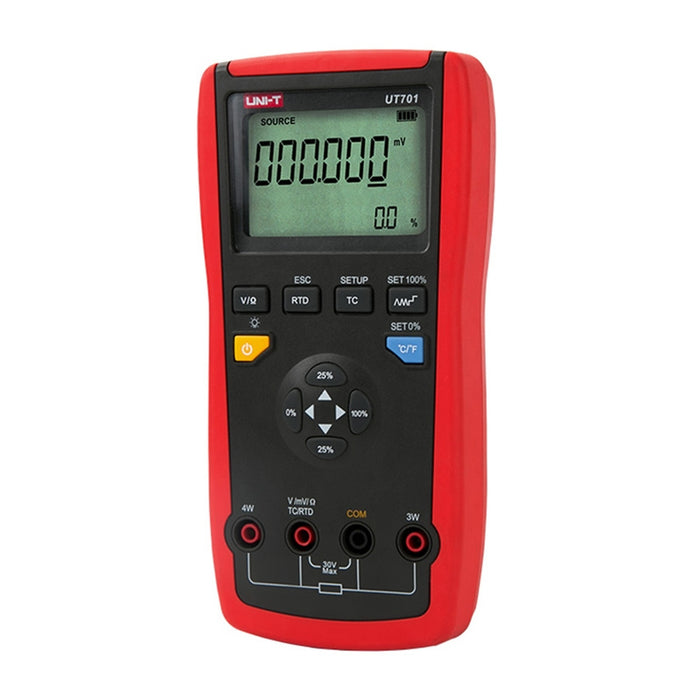

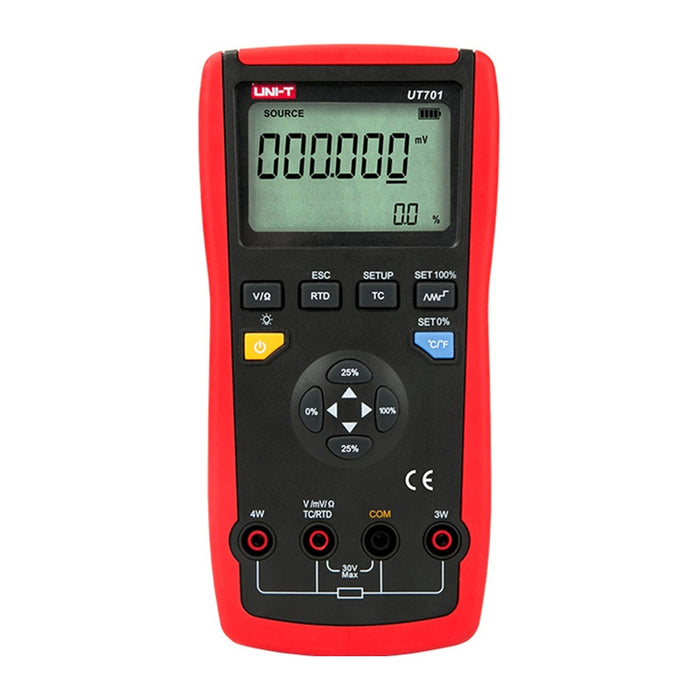

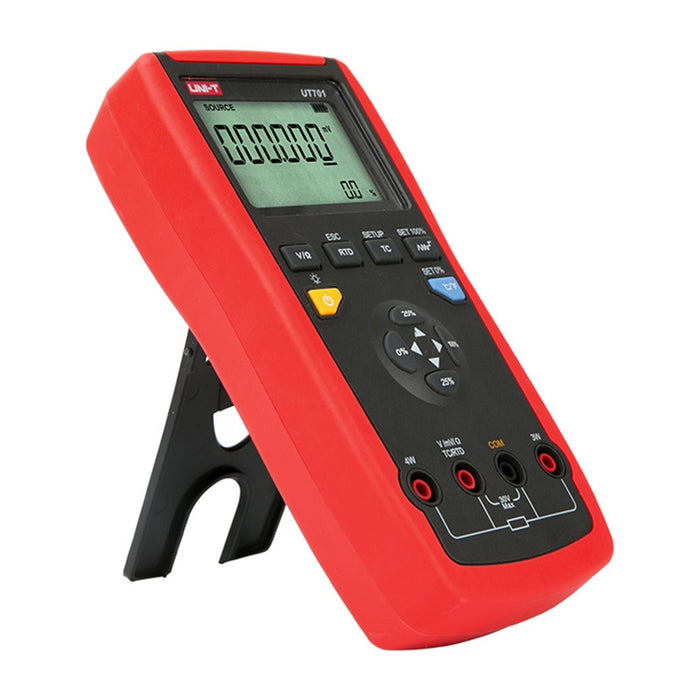

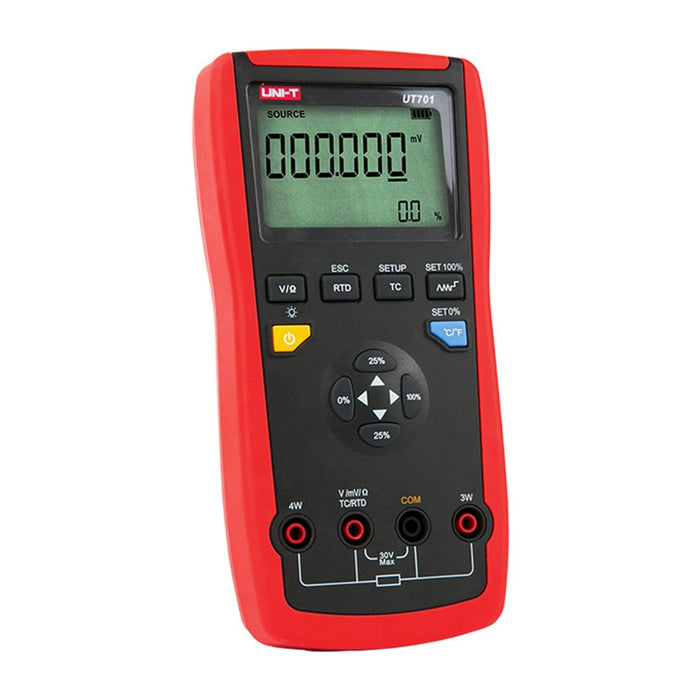

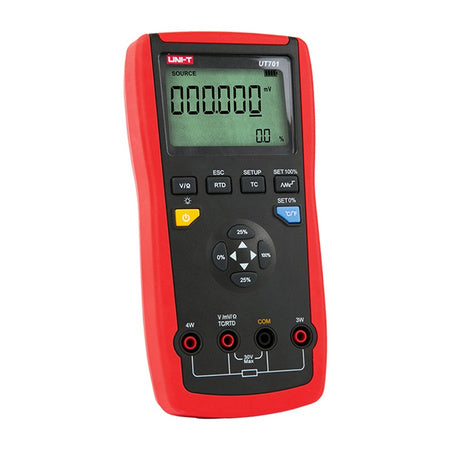

Uni-T UT701 process calibrator

The Uni-T UT701 Process Calibrator is a tool designed for calibrating and testing temperature measurement devices. It supports both thermocouples and RTD resistance sensors, making it ideal for servicing various types of systems and transducers. The device offers functions for generating voltage, resistance, and temperature signals, allowing it to simulate real-world operating conditions. High output accuracy of up to 0.05% ensures reliable results during calibration and diagnostics.

Temperature calibrator connected to a laboratory reference meter during measurement accuracy verification.

Functionality and precision

The UT701 model supports 10 types of thermocouples and 4 types of RTD sensors, increasing its versatility in industrial applications. Automatic cold junction compensation improves measurement accuracy for thermocouples, while step and ramp functions facilitate testing of system responses to signal changes. The ability to save settings speeds up work on repetitive tasks, while the clear, backlit display and intuitive controls ensure ease of use in various conditions.

Digital multimeter and temperature calibrator connected by cables while testing the signal from the temperature sensor.

Included

  • Process calibrator
  • Test leads (1 pair)
  • 9V battery (6F22)
  • Carrying case
  • User manual

Specifications

Manufacturer Uni-T
Model UT701
Product type Process temperature calibrator
Output accuracy Up to ±0.05%
Display type 6-digit backlit LCD display
Display dimensions 63 × 40 mm
Signal source outputs DC voltage, resistance, thermocouples, RTD
Supported thermocouples J, K, T, E, R, S, B, N, WRe3-25, WRe5-26
Supported RTD types Pt10, Pt100, Cu50, Cu100
DC voltage output range Up to 1000 mV
Resistance output range Up to 5000 Ω
Functions Ramp, step, settings storage, cold junction compensation
Power supply 9V battery (6F22)
Dimensions 96 × 193 × 47 mm
Weight 410 g
Certifications CE, UKCA
