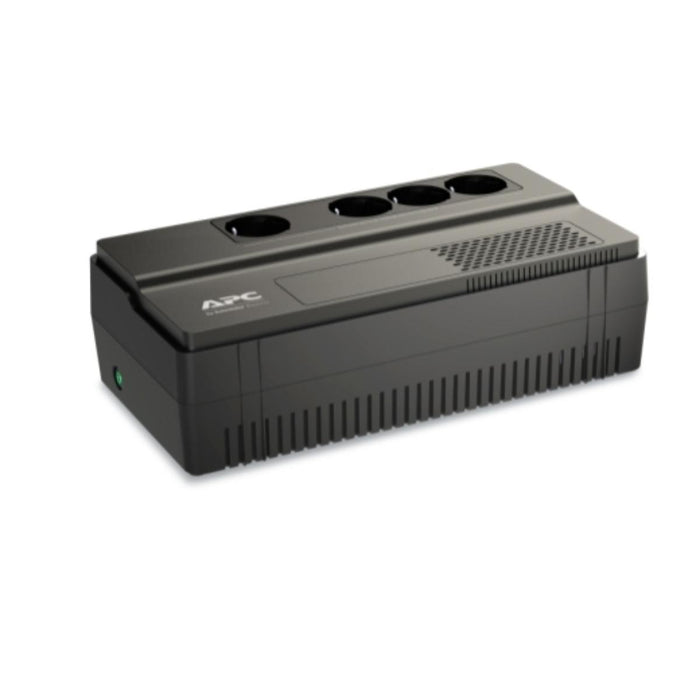

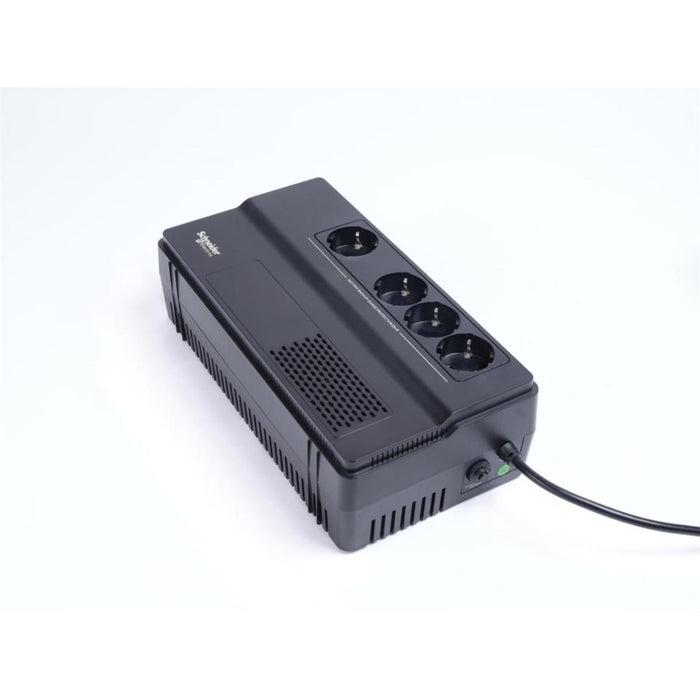

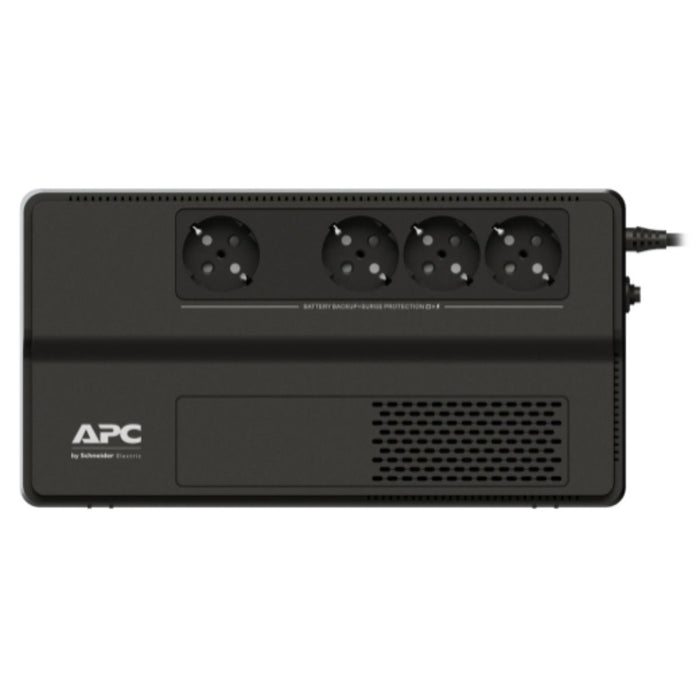

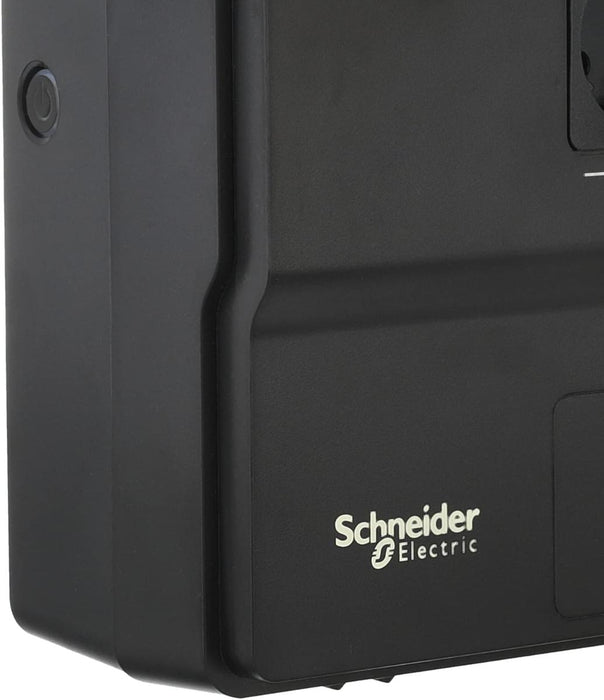

UPS EMERGENCY POWER SUPPLY EASY BVS 500VA

In order to correctly select the power of the device, it is recommended to consult a specialist. The power must be tailored to the power consumption of the loads and the type of load:

• the rated power of the device must be 20-30% higher than the power of the load for a resistive load (heaters, electric ovens, furnaces, stoves, incandescent lamps, etc.). This is necessary due to the high inrush current of the loads. When switching on the load and during repeated short-term duty cycles, the load significantly exceeds the rated parameters specified in the technical specifications of the load for a short period;
• when the device is used in combination with inductive load consumers, the power must be 3 to 5 times greater than the power consumption of the load! (fluorescent and luminescent lighting, electric motors, pumps, air conditioners, refrigerators and freezers, etc.);
• when the device is used with capacitive load consumers, the selected power must be 5 to 10 times greater than the power consumption of the load! (switch-mode chargers, LED drivers, switched-mode power supplies, etc.).

In the event that these instructions are not observed, the device may be overloaded and cease to function, and accordingly the warranty will not cover the damage.
Characteristics:

• Technical specifications of UPS emergency power supply BVS500I-GR, 230VAC, 300W, Line interactive, modified sine wave
• Brand: SCHNEIDER ELECTRIC
• Input voltage: 230 [VAC]
• Output power: 300 [W]
• Sine wave type: modified
• UPS type: line-interactive
• Battery capacity: 4.5Ah

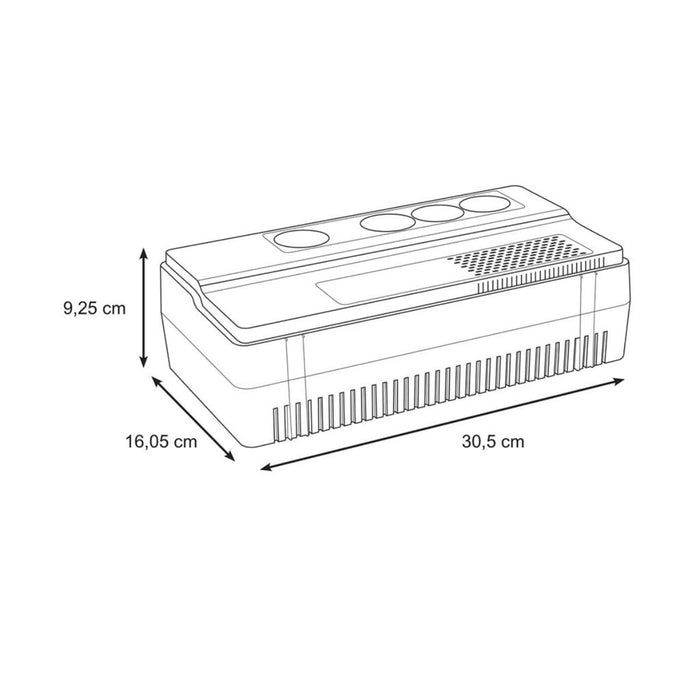

• Overall dimensions: 305x161x93 [mm]
• Model: BVS500I-GR
• Output voltage: 230 [VAC]
• Plug socket type: Schuko
• Connector type: IEC C14
• Frequency range: 45~65 [Hz]
• Humidity range: 0~90 [%RH]
• Operating temperature: 0~40 [°C]
• Charging time: up to 90% in 8 hours
