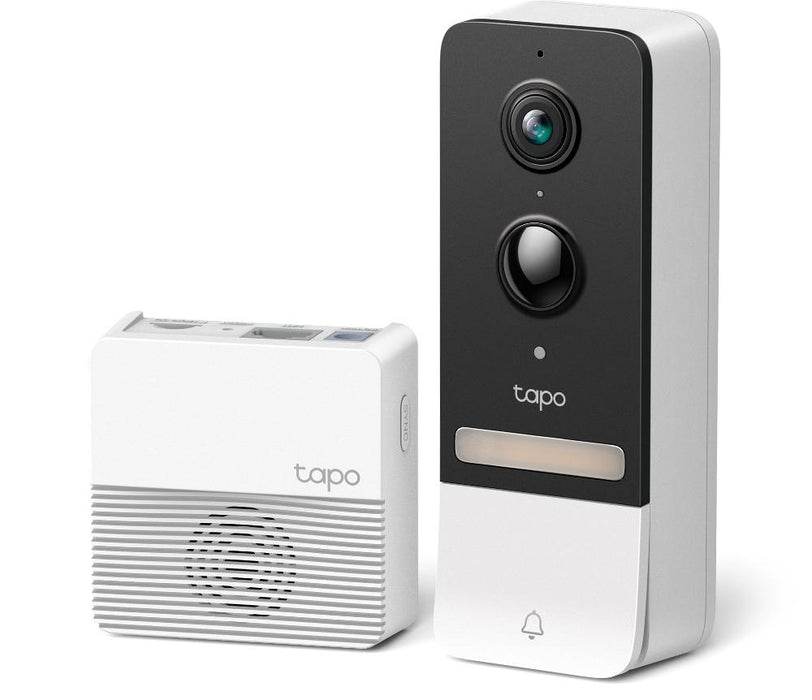

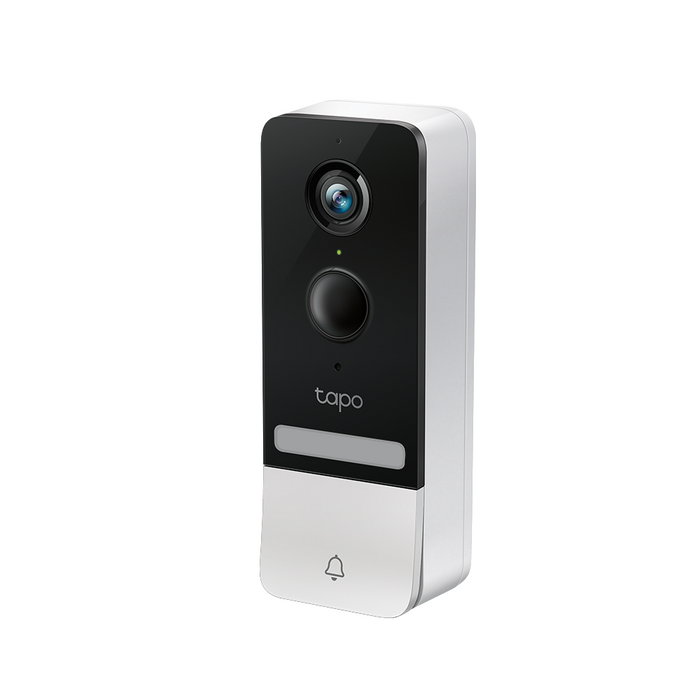

Video doorbell Tapo D230S1, 2.4Ghz, 2K 5MP, Color Night Vision, rechargeable batteries, microSD

Camera

• Sensor : 1/2.7" Progressive Scan CMOS

• Lens : 2.1 mm, aperture F2.1

• Viewing angle : 166° diagonal / 135° horizontal / 102.8° vertical

• Night vision : IR LED 850 nm (up to 7.6 m), full color night vision

• Lighting : Built-in spotlights

• Button/interface : Reset, Doorbell, Anti-Theft

• Compatibility : Works with Hub H200 (included)

Hub (H200)

• Compatibility : Works with Tapo sensors, buttons, Sub-1G switches, cameras and video doorbells

• Connection capacity : Up to 64 devices + 4 cameras/doorbells

• Interfaces : Ethernet port, Reset button, MicroSD slot (up to 512 GB), Sync button

Video and audio

• Max. resolution : 2K 5MP (2560 × 1920)

• Frames per second : 15 fps

• Digital zoom : Up to 16×

• Compression : H.264

• Image enhancements : 3DNR, WDR

• Audio : Built-in microphone and speaker, two-way audio with noise cancellation

• Sirena :

  • Bell – 96 dB (at 10 cm)

  • Hub – 100 dB (at 10 cm)

Storage

• Local : microSD card in hub (up to 512 GB)

• Cloudy : Tapo Care (subscription)

Detection and notifications

• Sensors : PIR motion sensor (FOV: 130° horizontal), ambient light sensor

• AI recognition : people, pets, vehicles, packages

• Activity Zones : Yes (with Motion Detection)

• Notifications : System notifications, with snapshot (via Tapo Care)

Network

• Connectivity : Wi-Fi IEEE 802.11b/g/n, 2.4 GHz

• Local connection : Sub-1G, 868 MHz (bell ↔ hub)

• LAN port : 1× RJ45 (10/100 Mbps) on the hub

Security

• Embedded machine AI

• 128-bit AES encryption with SSL/TLS

• WPA/WPA2-PSK

Power supply

• Bell : 6700 mAh removable rechargeable battery

• Hub : 9V DC adapter

• Input/output voltage : 100–240V, 50/60Hz → 5V/1A (doorbell), 9V/0.85A (hub)

General characteristics

• Smart assistant compatibility : Google Assistant, Amazon Alexa

• Resistance : IP64 (water and dust)

• Operating temperature : -20℃ to 45℃

• Operating humidity : 10%–90% RH (non-condensing)

• Dimensions :

  • Bell: 146 × 54.5 × 35.5 mm

  • Hub: 71.45 × 71.45 × 31.25 mm
