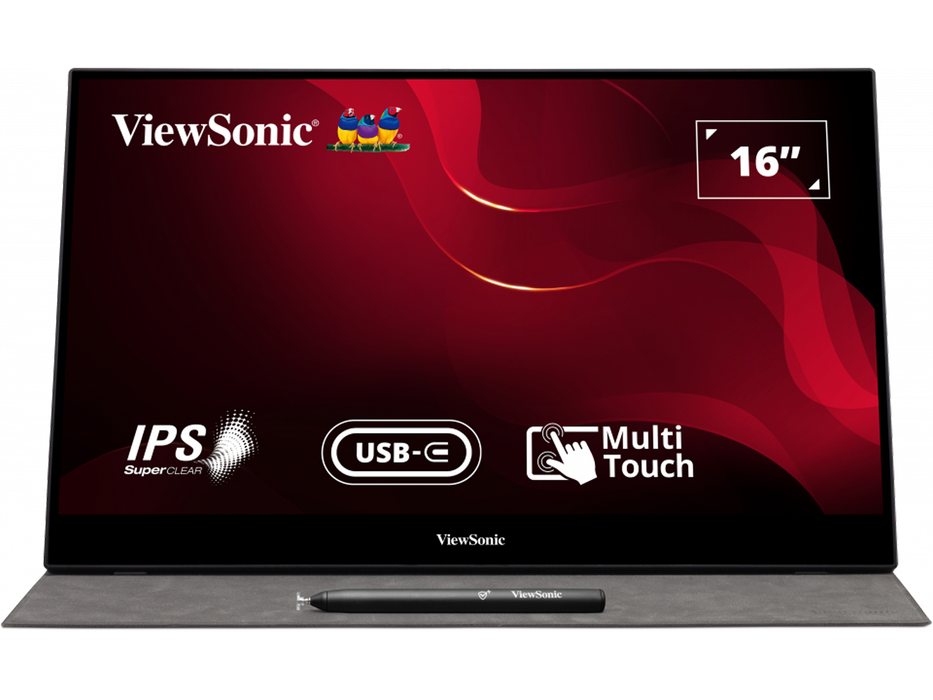

VIEWSONIC TD1655 Portable Touch Display 15.6 inch 1920x1080 Projected capacitive 10-point touch display with mini HDMI 2 USB Type C
| Marketing Description |
| ViewSonic TD1655 is a portable touch display designed for productivity on the go. Built for business travelers, remote workers and digital nomads, TD1655 can serve as an additional touchscreen for a laptop or tablet to boost productivity. With anti-glare screen and Full HD resolution, this touch display delivers crystal-clear visuals so users can see more and do more for a more efficient workflow. In addition, with a 10-point projected capacitive touchscreen, TD1655 provides smooth, natural writing and streamlined navigation with every tap, press and swipe. The two USB Type-C ports allow fast and easy transmission of video, audio and data. With a thickness of less than one inch and a weight of just two kilograms, the ultra-slim TD1655 fits perfectly into any bag, briefcase or backpack so you can work wherever life takes you. |
| Product Features |
-
Advanced Touch and Display Performance
The advanced built-in capacitive touchscreen delivers a smooth and responsive experience with every tap, press and swipe, while providing great front-of-screen performance and stunning visuals.
-
Full HD Resolution
This monitor offers Full HD resolution for incredible pixel-by-pixel image presentation. Enjoy amazing clarity and detail whether you are working, gaming or enjoying multimedia entertainment.
-
Frameless Design
The premium panel delivers accurate colours and bright images, and the frameless design provides near seamless viewing in multi-monitor setups. Thanks to ultra-wide viewing angles, you will enjoy stunningly detailed images without frames or limitations, regardless of viewpoint.
|
| General |
| Display Type |
LED-backlit LCD monitor / TFT active matrix |
| Energy Class |
Class C |
| Diagonal Size |
16" |
| Visible Size |
15.6" |
| USB Power Delivery |
60 Watt |
| Panel Type |
IPS |
| Aspect Ratio |
16:9 |
| Native Resolution |
Full HD (1080p) 1920 x 1080 at 60 Hz |
| Pixel Pitch |
0.179 mm |
| Brightness |
250 cd/m² |
| Contrast Ratio |
800:1 / 50000000:1 (dynamic) |
| Colour Support |
262,000 colours |
| Colour Gamut |
45% NTSC, 64% sRGB |
| Response Time |
6.599 ms (grey to grey with overdrive), 30 ms (typical tr tf) |
| Vertical Refresh Rate |
50 - 75 Hz |
| Horizontal Refresh Rate |
15 - 82 kHz |
| Horizontal Viewing Angle |
178 |
| Vertical Viewing Angle |
178 |
| Screen Coating |
6H Hard Coating |
| Backlight Technology |
LED backlight |
| Features |
Switching technology, scratch resistance, fingerprint protection, Transition Minimised Differential Signaling (TMDS) technology, Blue Light Filter technology, 6-bit gamma, portrait mode, metal housing |
| Dimensions (WxDxH) |
35.5 cm x 1.6 cm x 22.3 cm - without stand |
| Weight |
1 kg |
| Audio |
| Type |
Turntable - stereo |
| Output power / channel |
0.8 Watt |
| Input |
| Type |
Stepped screen - touch |
| Motion recognition technology |
Projected capacitive |
| Connectivity |
| Interfaces |
2 x USB-C 3.1
Mini HDMI
Audio line-in connection (mini-jack) |
| Mechanical |
| Display position settings |
Tilt |
| Tilt angle |
-20/ 60 |
| Miscellaneous |
| Features |
Anti-slip coating, aluminium stand |
| Included accessories |
Cleaning cloth, protective cover, passive touch stylus |
| Included cables |
Mini-HDMI cable
USB-C to USB 3.2 Gen 1 cable
1 x USB-C to USB-C cable |
| Backlight life |
15000 hours |
| Compliant standards |
Certified to FCC Class B, VCCI, BSMI, ICES-003, CB, EMC, RoHS, WEEE, PSE Mark, cTUVus, REACH, CEC, UkrSEPRO, ERP, EAC, RCM, BIS, GEMS, NRCAN, Mexico Energy label, Mexico CoC, UKCA |
| Power supply |
| Input voltage |
AC 100-240 V (50/60 Hz) |
| Power consumption SDR (on mode) |
7.8 kWh/1000h |
| Power consumption (typical mode) |
8 Watt |
| Power consumption (maximum mode) |
8.3 Watt |
| Power consumption in standby |
0.5 Watt |
| Dimensions and weight |
| Dimension and weight details |
Without stand - width: 35.5 cm - depth: 1.6 cm - height: 22.3 cm - weight: 1 kg
With stand - width: 35.5 cm - depth: 1.6 cm - height: 22.3 cm - weight: 1 kg |
| Dimensions and weight (as shipped) |
| Width as shipped |
44 cm |
| Depth as shipped |
8.9 cm |
| Height for shipping |
28.8 cm |
| Shipping weight |
2.3 kg |
| Environmental standards |
| EPEAT compliance |
EPEAT Bronze |
| ENERGY STAR Certified |
Yes |
| ENERGY STAR Version |
8.0 |
| Manufacturer warranty |
| Service and support |
Limited warranty - parts and labour - 3 years - pickup and return |
| Environmental parameters |
| Minimum operating temperature |
0 °C |
| Maximum operating temperature |
40 °C |
| Operating humidity range |
20 - 90% (non-condensing) |
