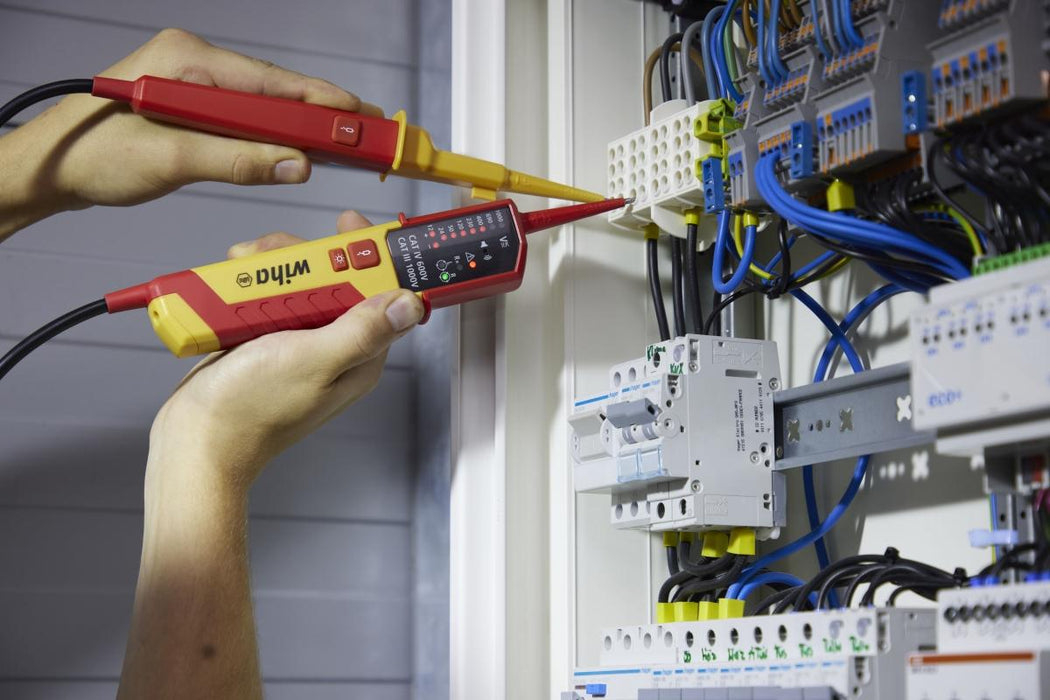

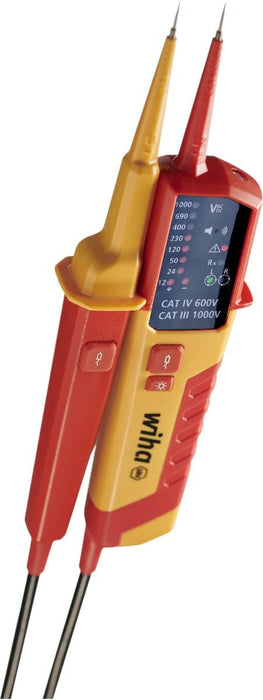

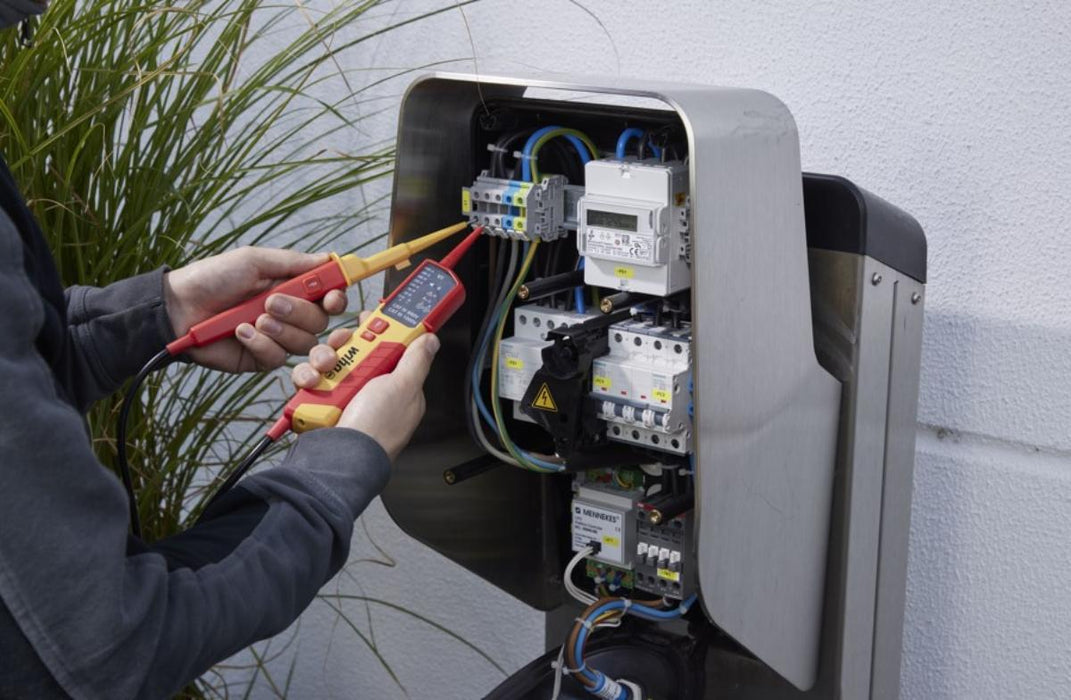

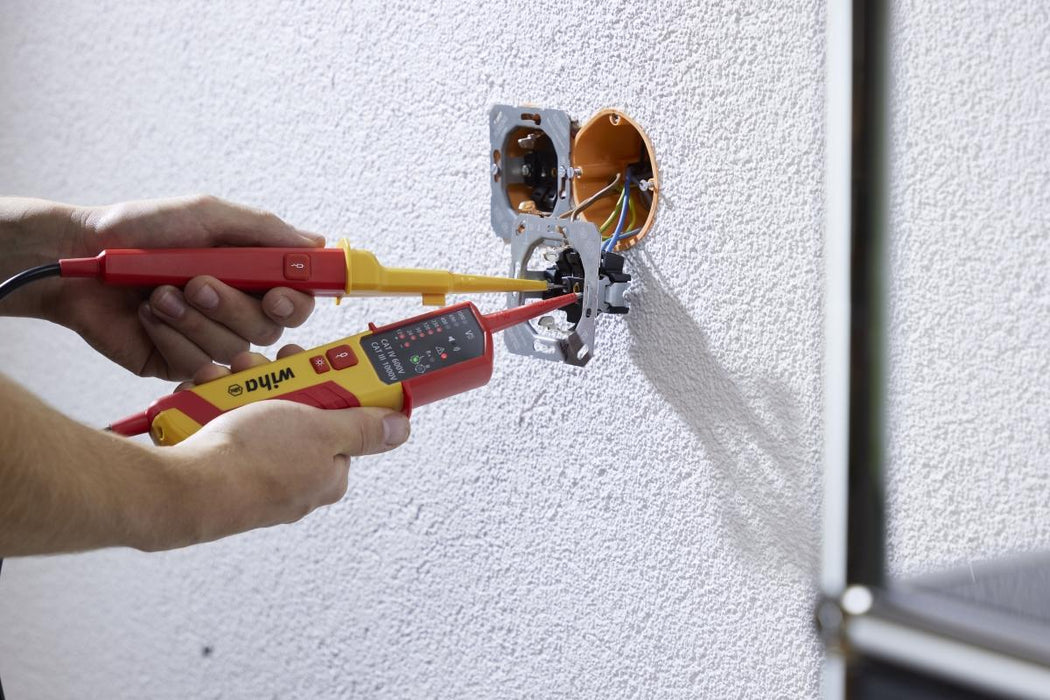

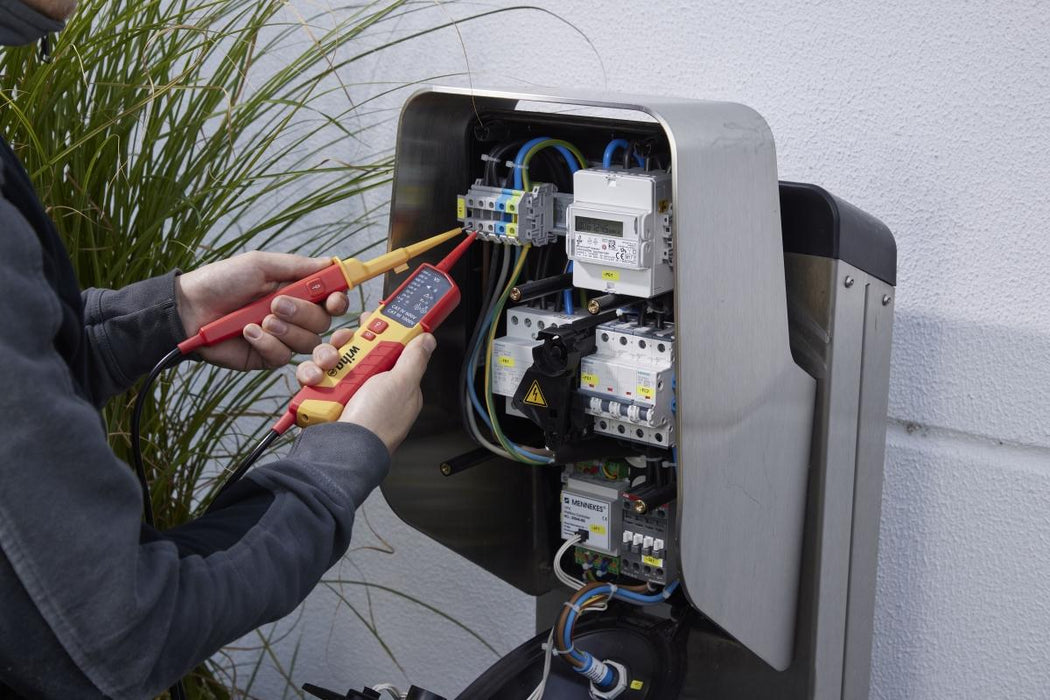

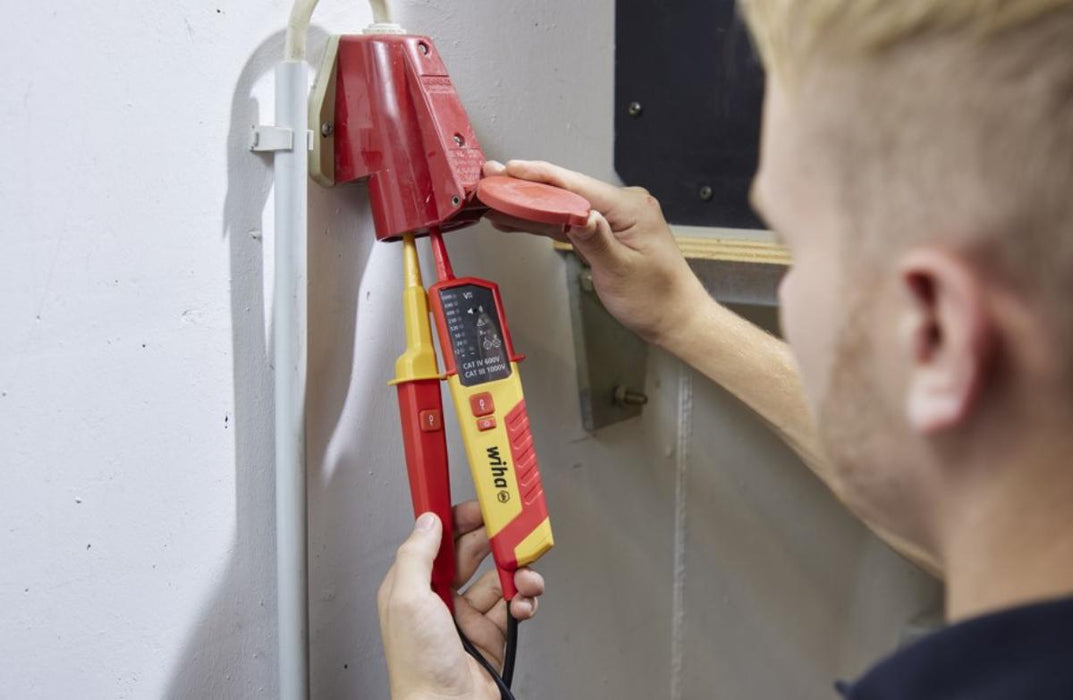

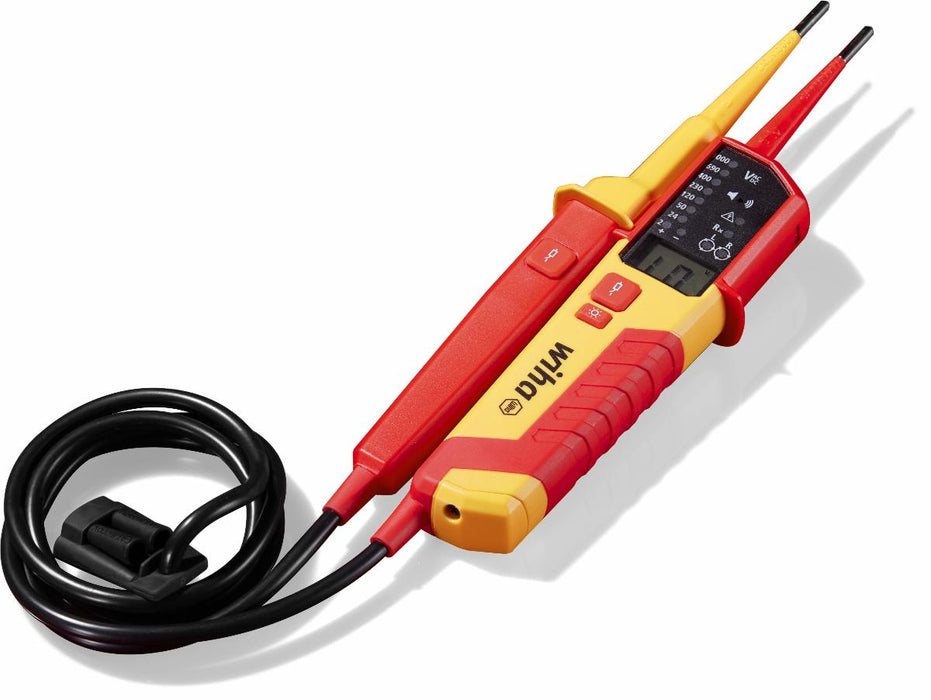

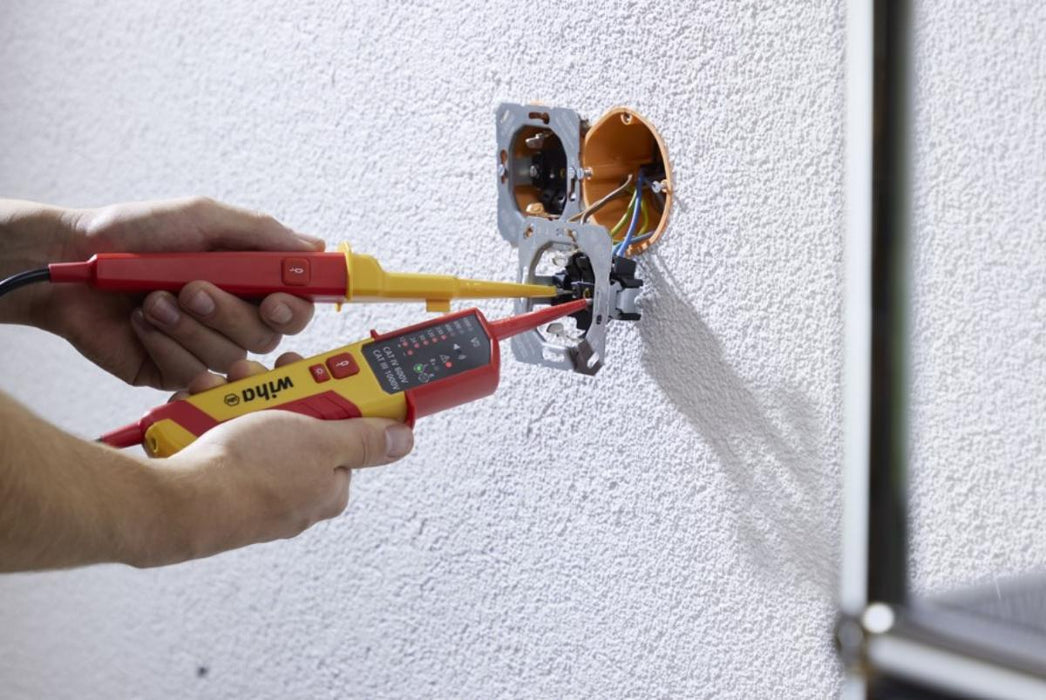

VOLTAGE AND MAINS TESTER 12-1000V AC

TECHNICAL DATA: Battery type (IEC designation): 2x AAAN voltage batteries V AC min. – Max.: 12 - 1000Volume V DC min. – Max.: 12 - 1500Dream: 2No Touch Control: No ATEX certification: Not Suitable for photovoltaics: Not Suitable for electromobility: Not Built-in Flashlight: YesFi control: YesExplorer: LEDIP protection: IP64Indication of the rotary field: LED L, RTest of the circuit continuity: LED diode and sound signalThe operating temperature min - max (°C): -15 - 50Temperature of the storage min (°C): -20 °CThe height of n.p.m.m.: 2000 mTest of the rotating field: 170 - 1000 V phase to the AC 50/60 HzTest phase of continuity: Measurement range 0 - 500 k? + 50%LED of the ELV indication: > 50 VAC, > 120 V DCZakres LCD: XLC resolution: XAn LCD overflow signal: XOperation time (s): < 0.5 s at 100% nominal Emergency current (mA): Is < 3.5 mA (at 1000 V)Measuring mode: 30 s on (time of operation), 240 s off (time of restoration)Battery consumption (mA): 80 mAWeakness RH max (%): 85 %Acoustic signal: YesTotal voltage (?): 282TESTER STRENGAGE AND OBSERVATIONS 12–1000V AC, CAT IV Enables voltage testing in a convenient measurement range of 12 V to 1000 V AC or 1500 V DC. In addition, it offers the possibility to test the continuity of the circuit, optical field testing, single-pole testing, as well as automatic polarity detection. The measurement results can be easily read on the LED display. In addition, during the circuit continuity test, the audio signal informs about the current flow. In addition, it is possible to control electrical sockets with one hand thanks to the integrated distance element. The Wiha voltage tester, thanks to the integrated function of the flashlight, provides optimal visibility, even with insufficient lighting of the workplace. The simultaneous pressing of buttons on both measuring tips handles allows you to check the FI protective switch by connecting the load. According to CAT III to 1000 V and CAT IV to 600 V measurement categories, voltage and circuit continuity testers Wiha provides maximum safety during operation within the electrical installation in construction facilities as well as directly at energy sources for low voltage installation.**...
