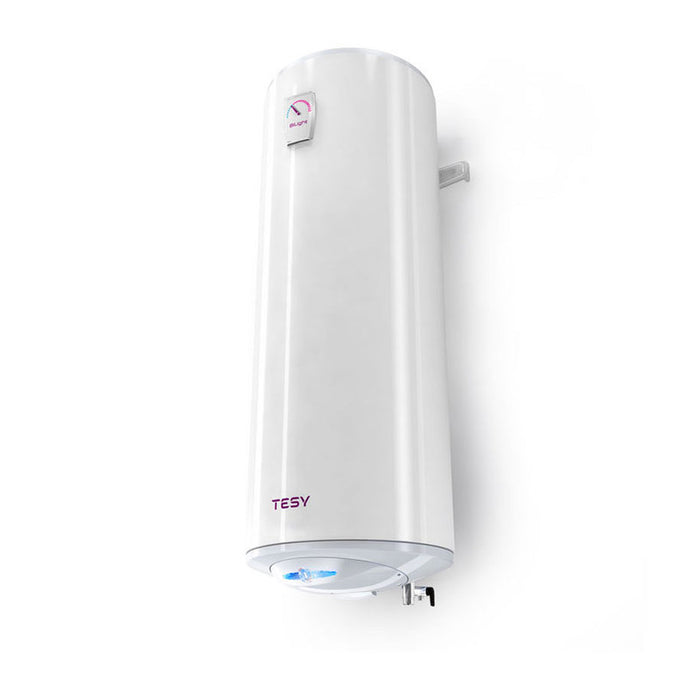

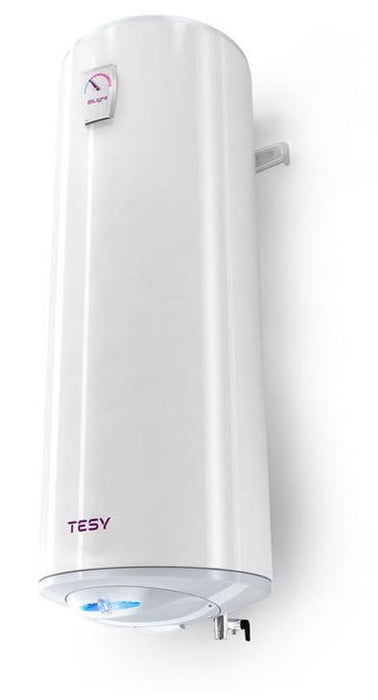

Volumetric water heater TESY GCV 80 38 20 B11 TSRC 80 L

Volumetric water heater TESY GCV 80 38 20 B11 TSRC 80 L

Tesy
€196,90 - €196,90
€196,90
€196,90 - €196,90
€196,90
SKU DGT0283019
Ships within 6 business days Please note that quantities are limited and dynamic. At the time of ordering, the item may be out of stock. We will notify you in a timely manner in the event that we are unable to fulfill the order.

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

Storage water heater

TESY GCV 80 38 20 B11 TSRC storage water heater, 80 L, 2 kW

38 cm diameter for installation in narrow niches and above sanitaryware.

The TESY GCV 80 38 20 B11 TSRC storage water heater from the BiLight Slim series has a real capacity of 80 L and vertical wall mounting. The water tank has a glass-ceramic coating and anode protection, and the heating element is copper. The control features a smoothly adjustable thermostat and a thermometer on the front panel.

Slim body with a diameter of 38 cm

The 121 cm height and 41.2 cm depth allow placement above a toilet bowl or in a narrow niche for a washing machine. The pipe connections are at the bottom, which facilitates connection with 1/2" flexible hoses.

Glass-ceramic water tank with anode protection

The coating insulates the steel from the water and slows down corrosion, while the magnesium anode takes on the electrochemical load. The copper heating element delivers heat directly into the water.

Heating up to 60 °C in 2 hours and 5 minutes

The time was measured when heating from 15 °C, meaning the morning batch of hot water is ready before the start of the day. The volume of 80 L corresponds to load profile M and provides 117 L of mixed water at 40 °C.

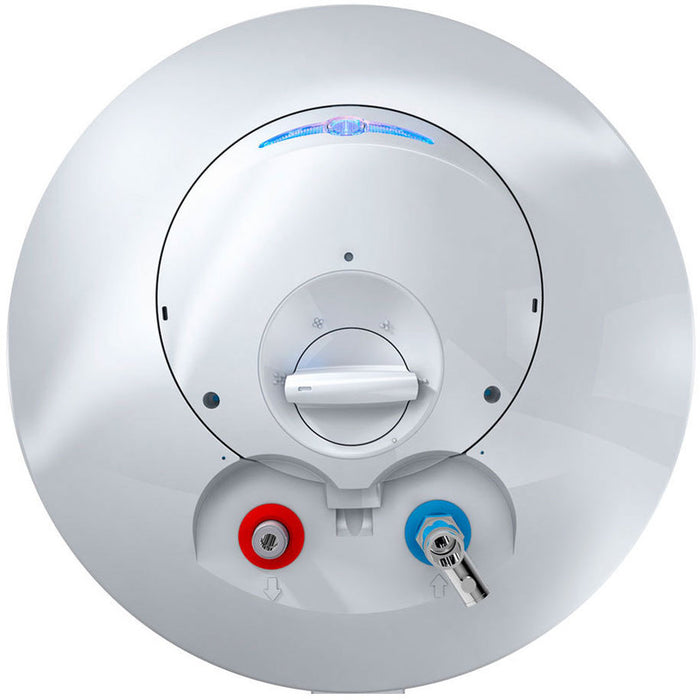

Two-color BiLight indicator for operating mode

The red light shows that the heating element is working, the blue: that the water has reached the set temperature. The thermometer next to the regulator shows the current temperature without opening the panel.

Specifications

Main

TESYBrand
GCV 80 38 20 B11 TSRCModel
BiLight Slim 80Series
Storage, vertical installationType
80 LReal capacity
CEnergy class
MLoad profile

Power and supply

2 kWRated power
Single-phase, 230 VPower supply
1410 kWhAnnual energy consumption
2:05 h:minHeating time Δt 45K (15–60 °C)
60 °CMaximum water temperature
117 LMixed water V40

Materials

Glass-ceramicWater tank
CopperHeating element
AnodeProtection
NoAnode tester
NoSerpentine coil

Dimensions

121.00 cmHeight
38.0 cmDiameter
41.2 cmDepth

Warranty

60 monthsWarranty

Basic

3800879122844EAN
