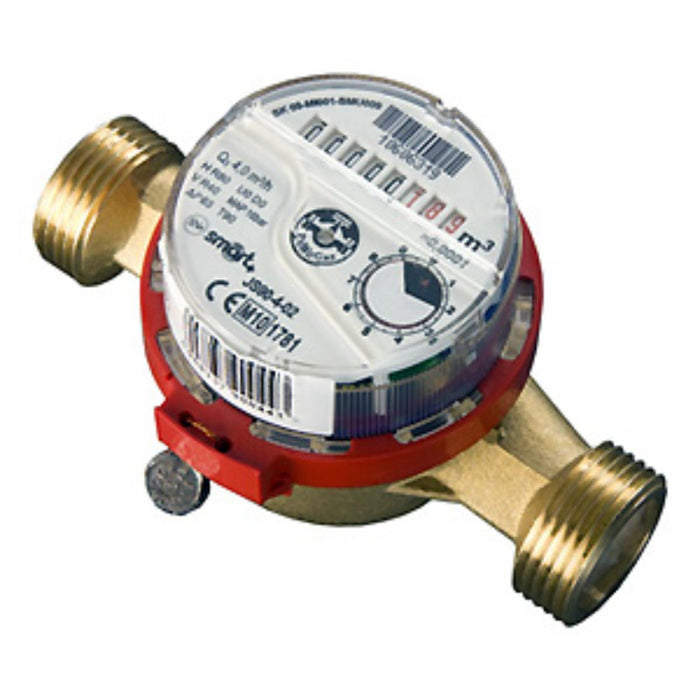

WATER METER 1/2 DRY HOT WATER

For measuring the flow and volume of hot water with a temperature up to 90 °C in closed systems with full constant flow and with a maximum working pressure of up to 16 bar (PN16). Suitable for installation on horizontal pipes with the counter oriented upwards (H) and on vertical or horizontal pipes with a side-oriented counter (V). SMART C+ water meters are equipped as standard with an 8-roller counter (IP65), SN+ anti-magnetic protection and a brass body, and are adapted for operation in remote data transmission systems (AMR).

Product features:

Resistance to strong external magnetic fields
Pre-equipped for installation of: radio module for wireless M-bus communication, M-bus module.
Reliability of meter readings meets the most modern MID metrological requirements.
Easy reading of the water meter counter.
Hermetic counter, resistant to the effects of steam.
Counting mechanism with lock against multiple rotations, rotation angle greater than 360 °.
Protection against mechanical tampering.
Protection reducing the effects of water freezing.
The outlet port of the water meter body is adapted for installing a check valve (optional).
Double-sided rotor bearing.

METROLOGICAL CLASS (mid): R80 - H; R40 - V
Q3 [m3/h]: 2.5
DN [mm]: 15
Length [mm]: 110
Connection: G¾
Weight [kg]: 0.25
