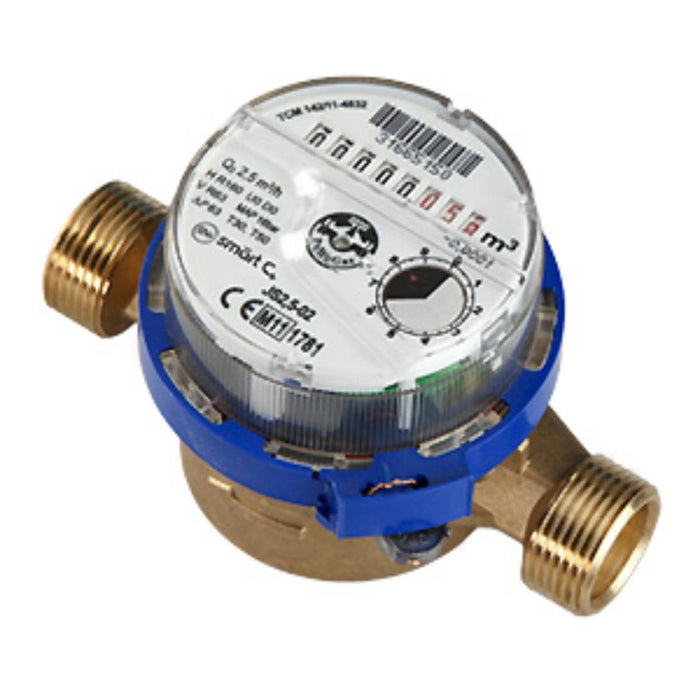

WATER METER 3/4 DRY COLD WATER

For measuring the flow and volume of water with a temperature up to 30 °C or 50 °C. Suitable for installation on horizontal pipes with the meter oriented upwards (H) and on vertical or horizontal pipes with the meter oriented to the side (V). SMART C+ water meters are equipped as standard with an 8-roller counter (IP65), SN+ anti-magnetic protection, a brass body, and are adapted for operation in automatic meter reading (AMR) remote data transmission systems.

Product features:

Resistance to strong external magnetic fields
Pre-equipped for mounting: radio module for wireless M-bus communication, M-bus module.
Reading reliability meets the most modern MID metrological requirements.
Easy reading of the water meter counter.
Hermetic counter, resistant to the effects of steam.
Counter mechanism with protection against multiple rotation, rotation angle greater than 360°.
Protection against mechanical tampering.
Protection reducing the effects of water freezing.
The outlet port of the water meter body is adapted for mounting a check valve (optional).
Double-sided rotor bearing.

METROLOGICAL CLASS (MID): R100 - H; R50 - V
Q3 [m3/h]: 4
DN [mm]: 20
Length [mm]: 130
Connection: G1
Weight [kg]: 0.53
