WATER SPRAY KARCHER HD 6/13 C

The compact, lightweight cold-water high-pressure cleaner HD 6/13 C with versatile applications offers excellent mobility and is suitable both for upright operation and for lying-down operation. The unit is equipped with an advanced accessory storage system, and the brass cylinder head and automatic pressure release ensure a long service life. At the same time, it impresses with innovative new developments that increase operator convenience in the long term by ensuring trouble-free operation and saving time. The EASY! Force high-pressure gun included in the package uses the recoil force of the high-pressure jet to reduce the holding force to zero. EASY!Lock couplings make work five times faster than conventional screw connections, without losing strength or durability. A complete equipment package for excellent cleaning results, with a high level of convenience and a long service life.
Save effort and time: EASY!Force high-pressure gun and EASY!Lock quick couplings.
Finally work without fatigue: the EASY!Force high-pressure gun. EASY!Lock quick couplings: long-lasting and robust. And 5 times faster than screw connections.
Mobility

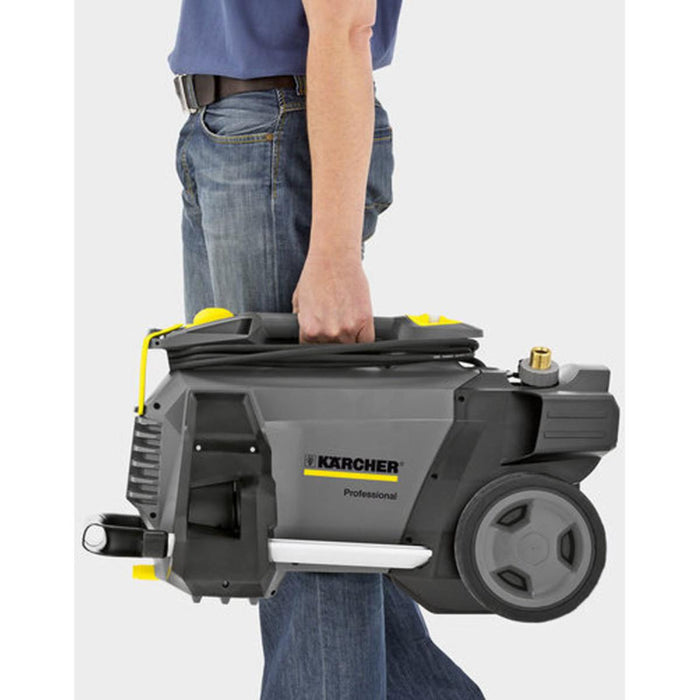

Integrated carrying handle on the front of the unit allows easy loading and convenient transport. Handle that extends at the push of a button. Compact shape.
Versatility
Possibility of operation in vertical and horizontal position. When operating in a lying position, the wheels do not touch the floor, so that the unit is maximally stable. Separate parking and transport positions for the spray systems.
Quality

• The automatic pressure release protects the components and extends the service life.
• High-quality brass cylinder head.
• Large water filter with easy access to protect the pump from contaminants in the water.

Accessory storage

• Screw connection (M 18 x 1.5) for storing the surface cleaning unit directly on the unit.
• Practical storage spaces for the nozzles of the triple nozzle and the rotary nozzle.
• Rubber strap for fixing the high-pressure hose.

Technical data

• Type of current (~/V/Hz) 1 / 230 / 50
• Flow rate (l/h) 590
• Feed water temperature (°C) 60
• Working pressure (bar/MPa) 130 / 13
• Maximum pressure (bar/MPa) 190 / 19
• Connected load (kW) 2.9
• Connecting cable (m) 5
• Nozzle size (mm) 38
• Water supply 3/4″
• Weight (with accessories) (kg) 25.6
• Weight incl. packaging (kg) 28
• Dimensions (L x W x H) (mm) 380 x 360 x 930

Scope of delivery

• Hand gun: EASY!Force
• High-pressure hose: 10 m
• Lance: 840 mm
• Triple nozzle (0° / 25° / 40°): Manual

Equipment

• Detergent function: Suction
• Pressure cut-off
