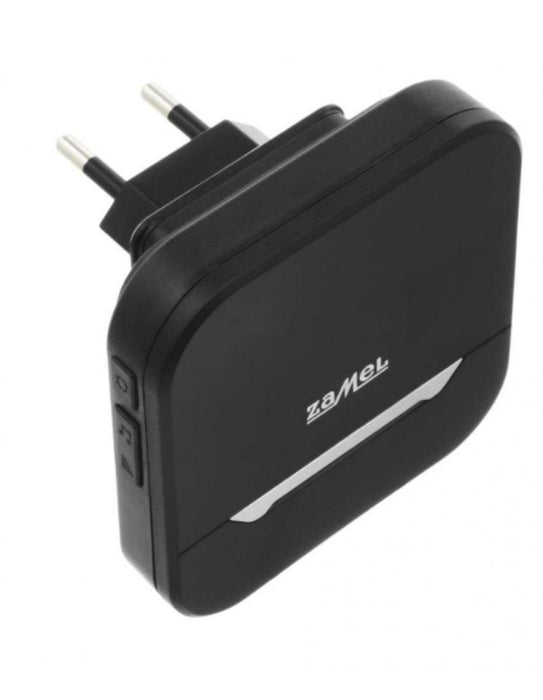

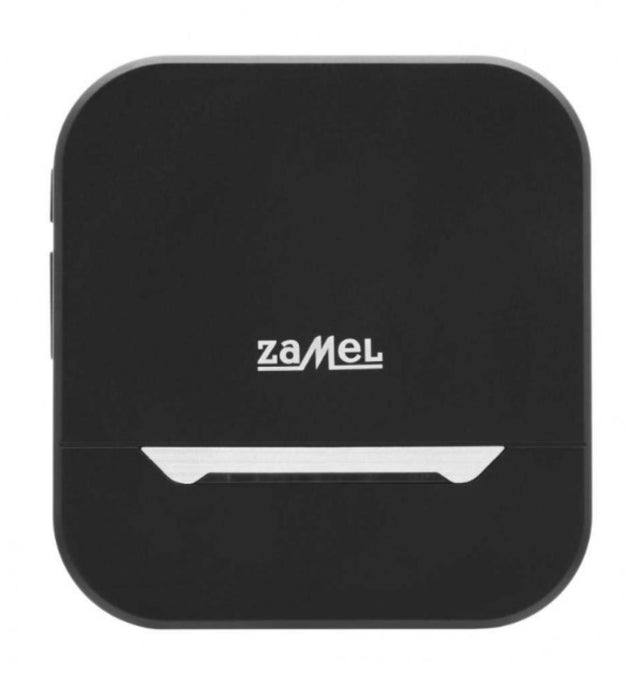

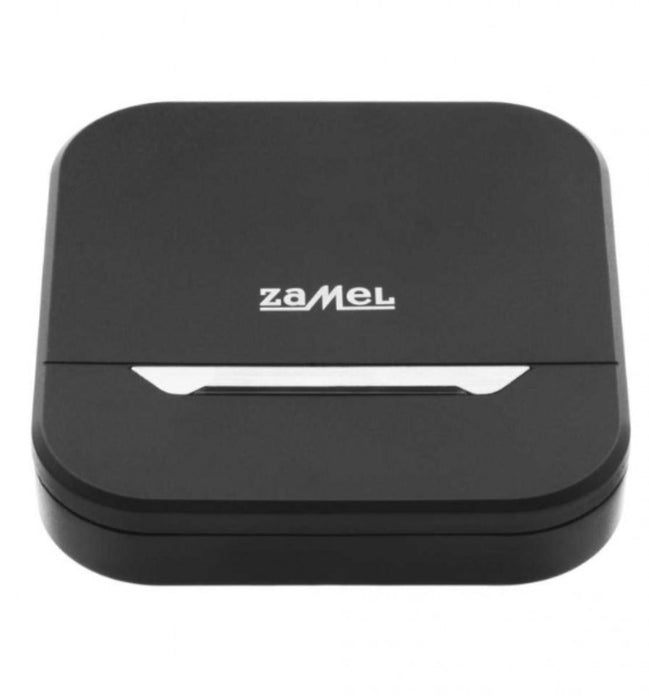

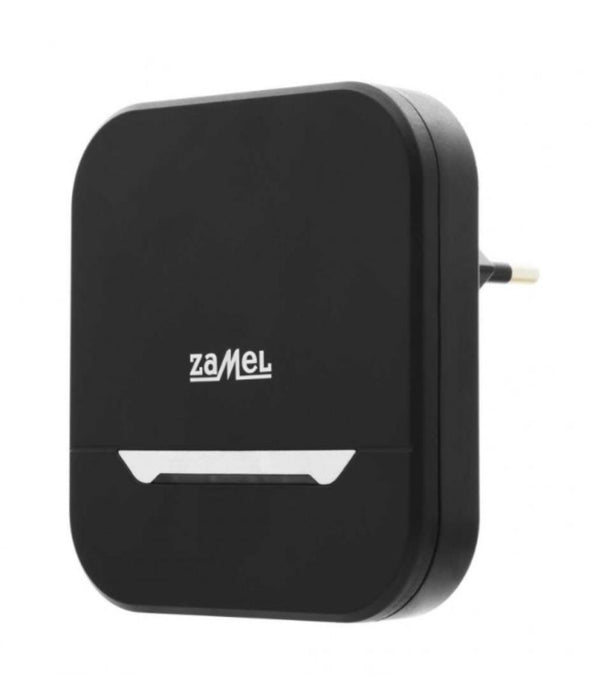

WIRELESS ELECTRIC DOOR BELL CALIPSO ZAMEL

Wireless network doorbell CALIPSO ST-980 Zamel

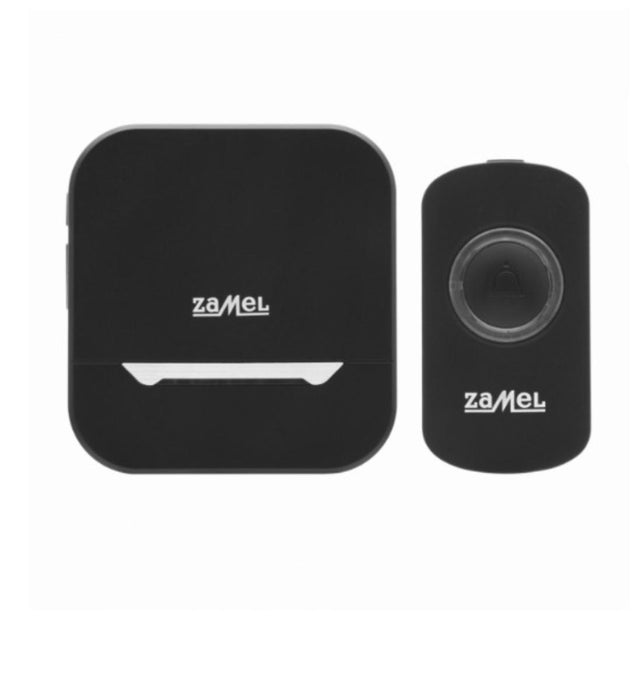

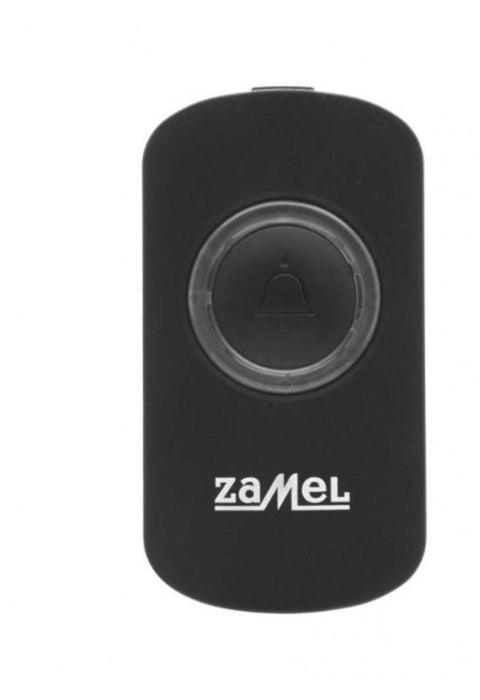

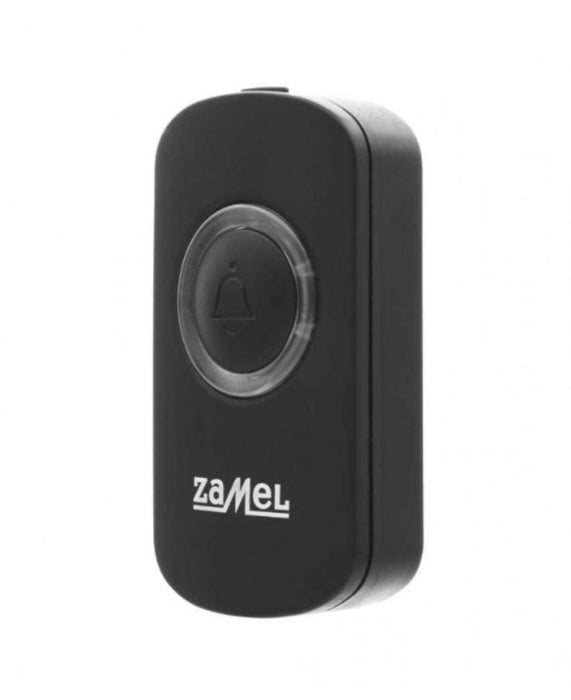

ST-980 includes a CALIPSO wireless doorbell and a wireless doorbell button ST-980P.
Features:

• Ideal as a doorbell, intercom device or personal alarm
• Visual ring signal, useful for people with hearing impairment
• Call location recognition (different melody for each button)
• Battery-powered, weather-resistant button (IP44)
• Useful for homes, restaurants, hotels, businesses or people needing care
• Range 100 m outdoors
• 36 selectable sounds and melodies
• Volume adjustment (max. approximately 85 dB)
• No doorbell installation required
• The doorbell plugs directly into a 230V socket
• 3 buttons can be programmed to one doorbell

*The stated working range applies to open spaces, i.e. ideal conditions without obstacles. If there are obstacles between the receiver and the transmitter, the working range should be reduced by 5 to 20% for wood and plaster, by 20 to 40% for brick and by 40 to 80% for reinforced concrete. The use of radio systems with metal obstacles is not recommended due to the significant reduction in working range. High-power overhead and underground power lines, as well as GSM transmitters located in the immediate vicinity of the devices, also negatively affect the working range.

• Weight: 150 g
• Device dimensions: 80 x 84 x 27 mm
• Button dimensions: 37 x 70 x 15 mm

TECHNICAL DATA

• Rated voltage: 230 V
• Housing colour: Black
• Current type: AC
• Noise level: 85 dB(A)
• Current consumption: 0.004 A
• Modular version: No
• Material: Plastic
• Device protection rating: IP20
• Button protection rating: IP44
• Device working range: 100 m
• Device supply voltage: 230.0 V
• Battery type: 23A
• Number of batteries: 1 pc.
• Button supply voltage: 12 V
• Volume adjustment: YES
• Number of melodies: 36
• Visual ring signal: YES
• Compatibility with multiple buttons: YES
• Device operating temperature range: 0-35 °C
• Button operating temperature range: -20 to + 55 °C
• Frequency 433 MHz
• Number of codes 3000
• Current consumption 0.004 A
• Doorbell colour: black
• Button colour: black
